ADTECH9 Series CNC Maintenance Manual
- 63 -
8.1.3 Comprehensive coordinates
The interface displayed by absolute coordinates and machine tool coordinates.

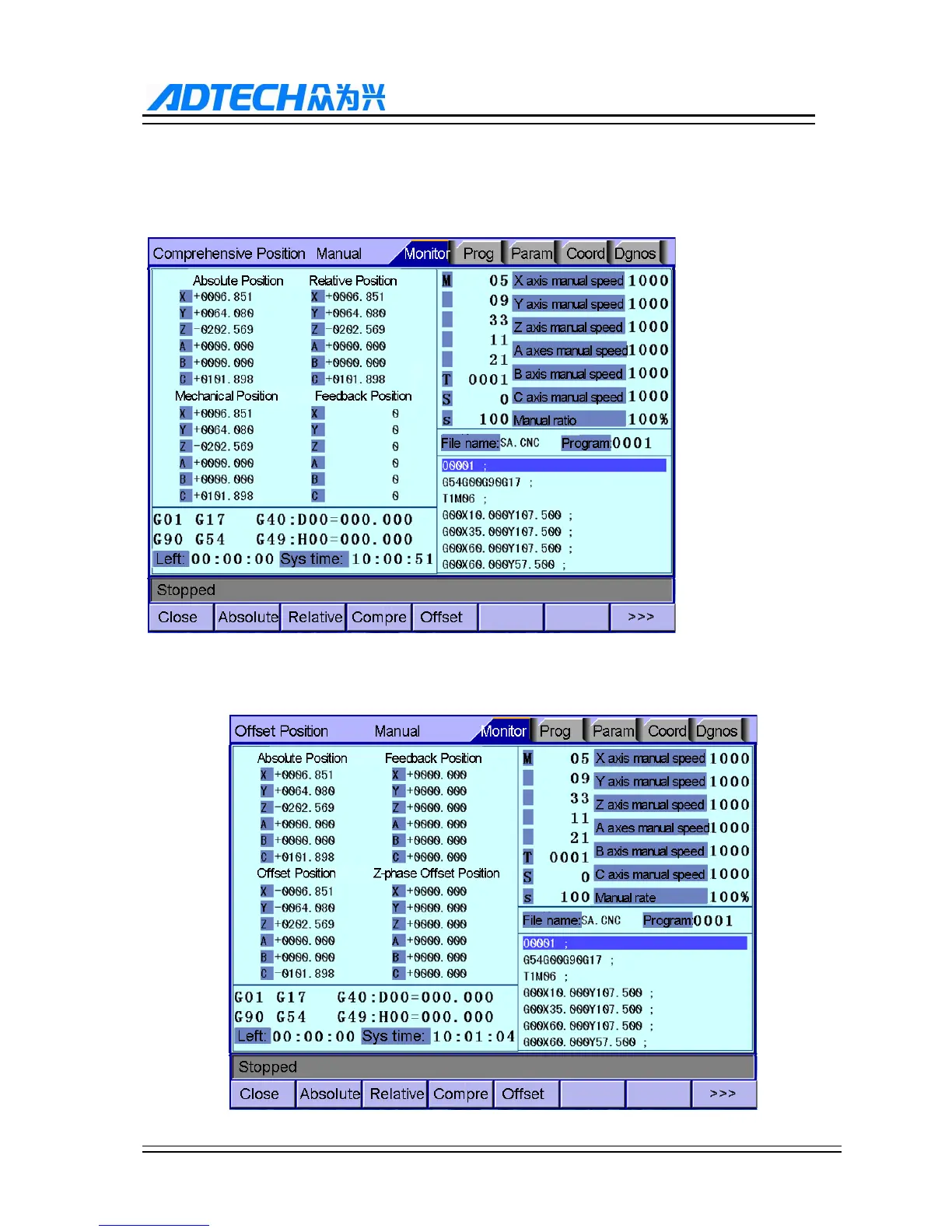

Comprehensive position interface is shown below:
Comprehensive Position Interface
8.1.4 Deviation position
