BRAVO III with EZ-Jaw Operating manual - English
10 Copyright Silca 2010
3.3

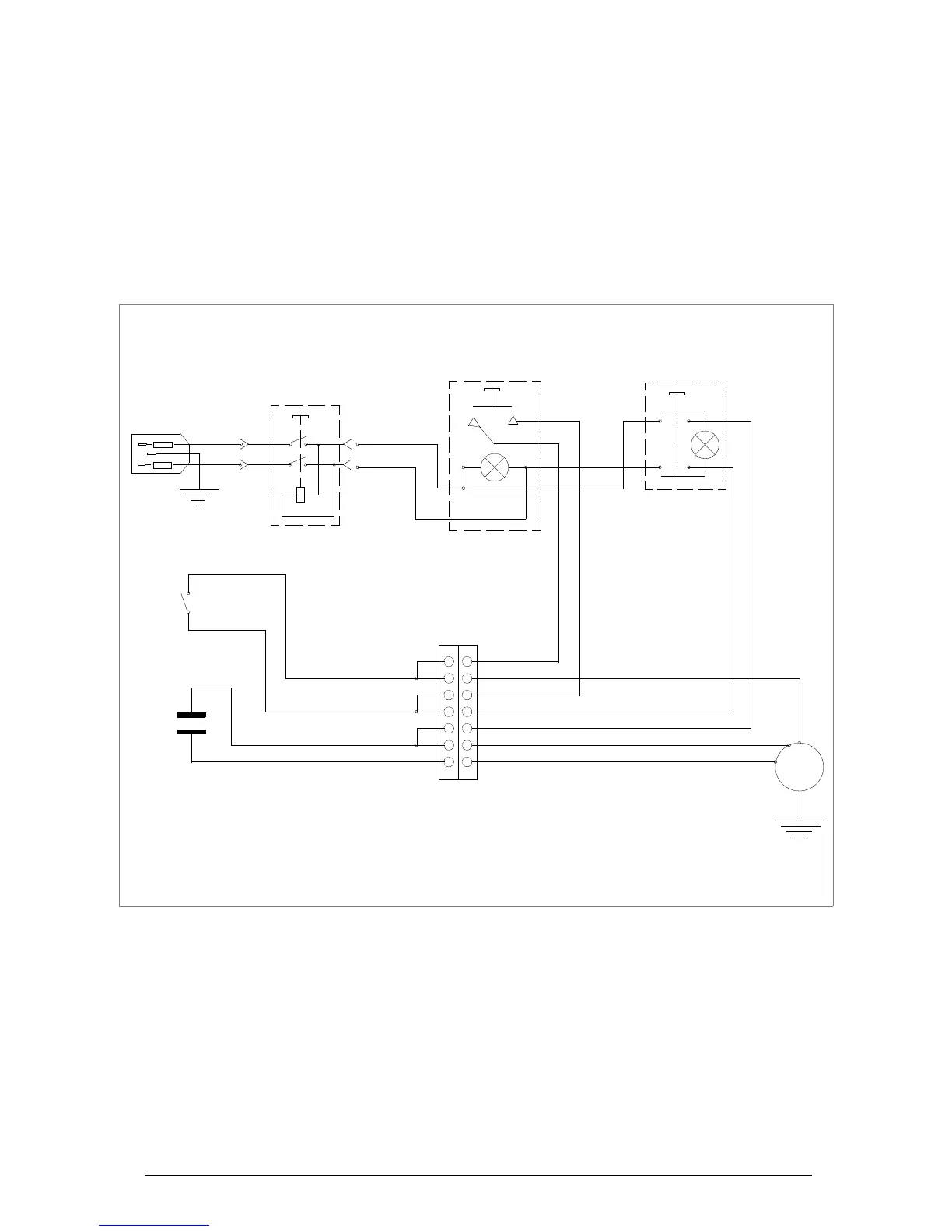

Electric circuit
The BRAVO III with EZ-Jaw key-cutting machine has a 1 speed single phase motor.
The main parts of the electric circuit on the BRAVO III with EZ-Jaw are listed below:
1) Main plug with fuses 6,3 Amps rapid
2) Safe main switch
3) Brush push button
4) Motor start up switch
5) Carriage microswitch
6) Cutter motor condenser
7) Terminal board
8) Motor
Fig. 7
M
1
2
3
4
4
3
2
1
3
2
1
(
)
(
)
1
2
3
4
5
6
7
8
