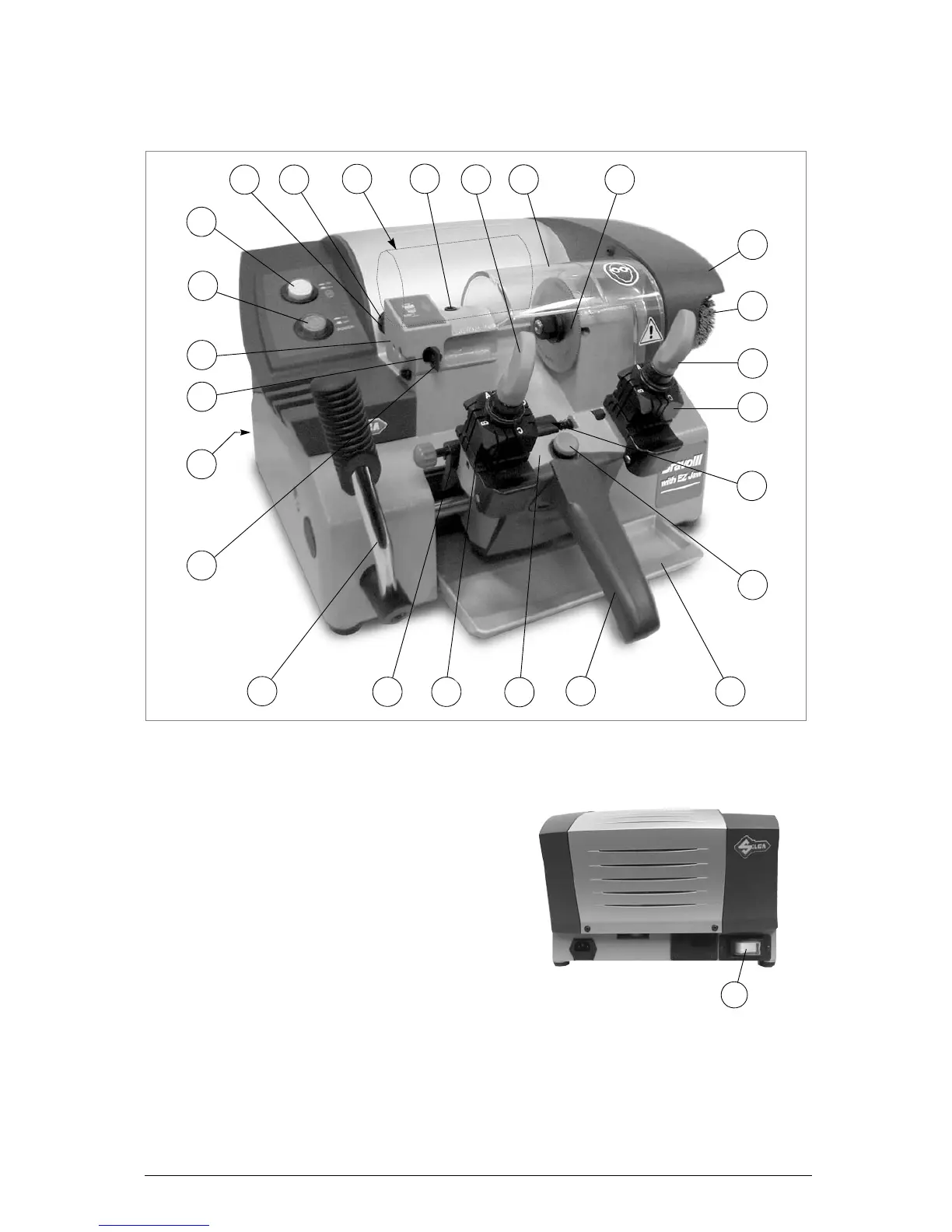

2 WORKING PARTS
Fig. 5
A - cutting tool
B - tracer point
B1- tracer point support
C - master switch
D - carriage
E- clamp
F - clamp knob
H - transparent protective shield
I - brush
J - tracer point locking screw
J1- support/tracer point locking screw
K - calibration tabs
L - carriage movement lever
M - brush push button
N - chippings tray
O - tracer point regulating knob
O1- zero registration nut
P - motor start-up switch
Q - carriage release push button
R - calibration drum
T - belt housing
U - single speed motor
V - carriage handle
N
V
E
K
L
F A
I
F
E
Q
D
R
T
B1
J
P
M
B
C
U
O1 O
J1
H
C
