7.9 Replacing the condenser (motor)
1) Turn the machine off and unplug it.
2) Remove the bottom panel (see ch. 7.7).
3) Loosen the nut (Z) and remove the washer (Z1) and condenser (fig.28).
4) Fit the new condenser and fix with the washer (Z1) and nut (Z).
5) Remove the cap (Z2) from the new condenser.
6) Remove the cap from the old condenser and detach the connectors (1 and 2) from the old
condenser to connect them to the new one, paying attention to their positions.
7) Replace the cap (Z2) on the new condenser.
8) Replace the bottom safety plate, fix with the 7 screws (W) and 2 feet (fig. 26, page 21). Fit the
swarf tray.

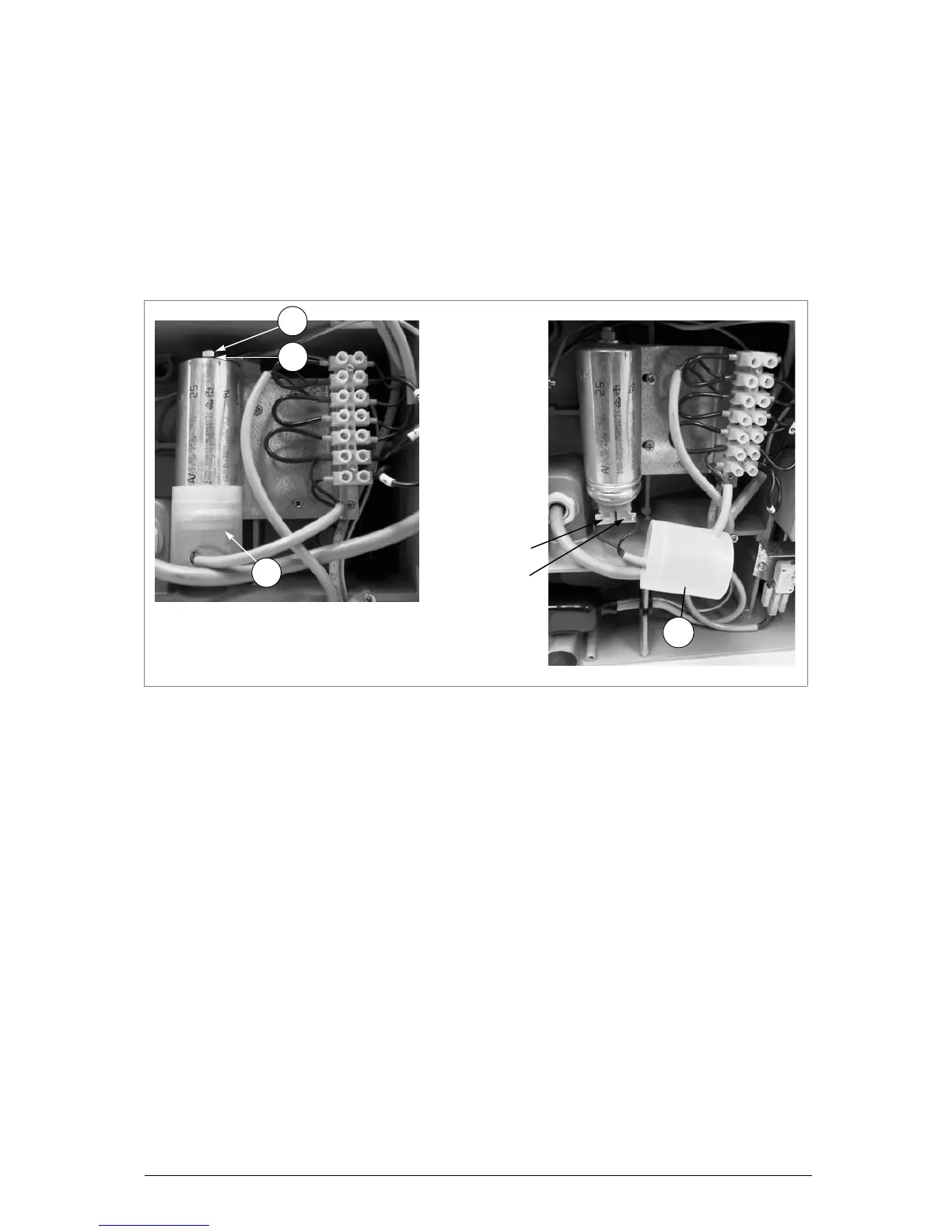

Fig. 28
Z1
Z2
Z2
1
2
Z
