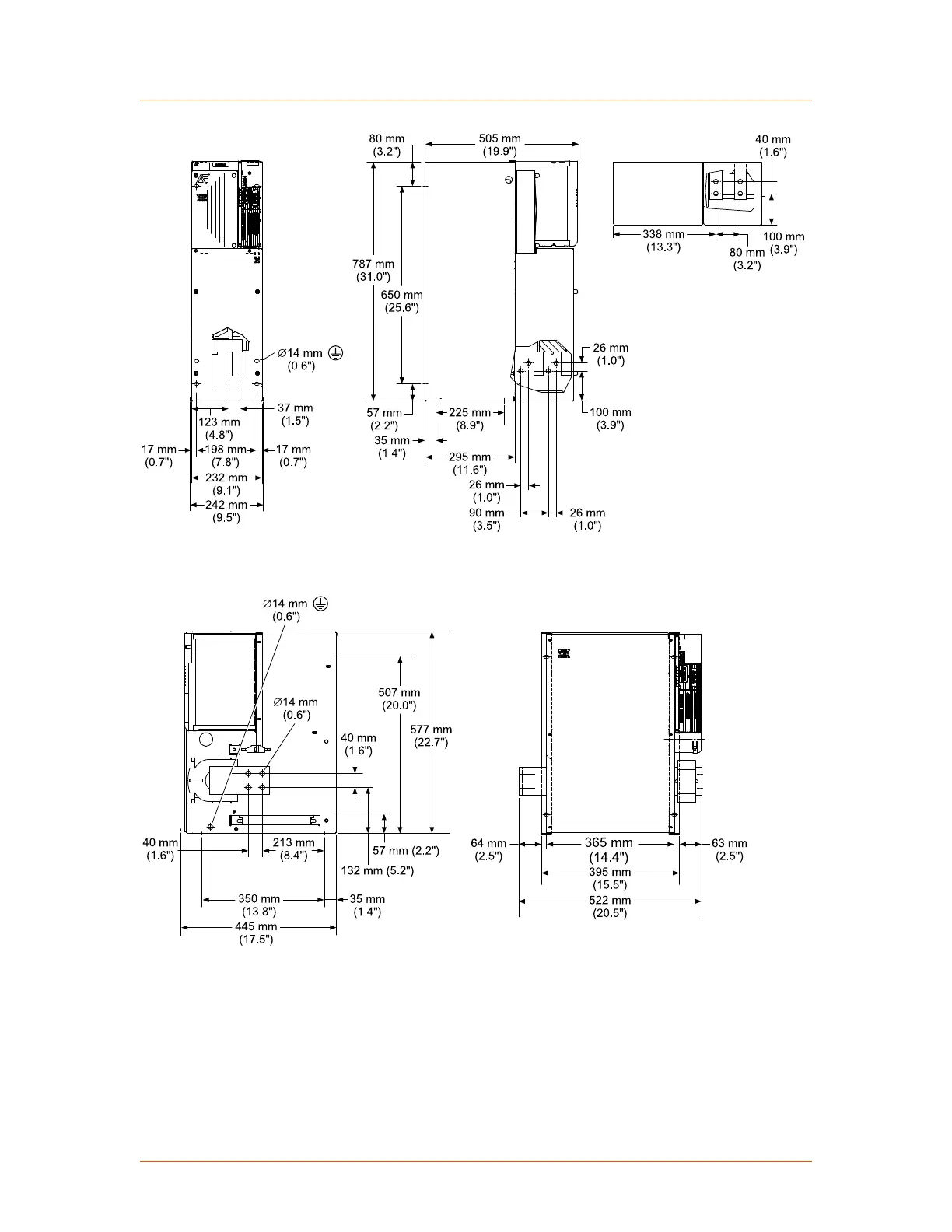

Figure 5‑5.
Thyro-PX 1PX 500-780 HF, 1000 HF, 1500 HF, Thyro-PX 1PX 690-780 HF, 1400
HF
Figure 5‑6.
Thyro-PX 1PX 500-2100 HF, Thyro-PX 1PX 690-2000 HF
