SMD23E2 and SMD24E2 User’s Manual
PROFINET NETWORK CONFIGURATION
125
7.4 Add the SMD23E2 or SMD24E2 to the PROFINET Network (continued)
5) Right click on the SMD23x2 icon and select “Properties” from the pop up menu. The Inspector window
will open at the bottom of the screen. Under the “General” tab, select the “
General” heading. You can
rename the SMD23E2 or SMD24E2 by changing the Name: field.
6) Under the “
PROFINET interface [x1]” heading, select “Ethernet addresses”. Under the IP protocol
section, set the desired IP address and subnet mask for the SMD23E2 or SMD24E2.

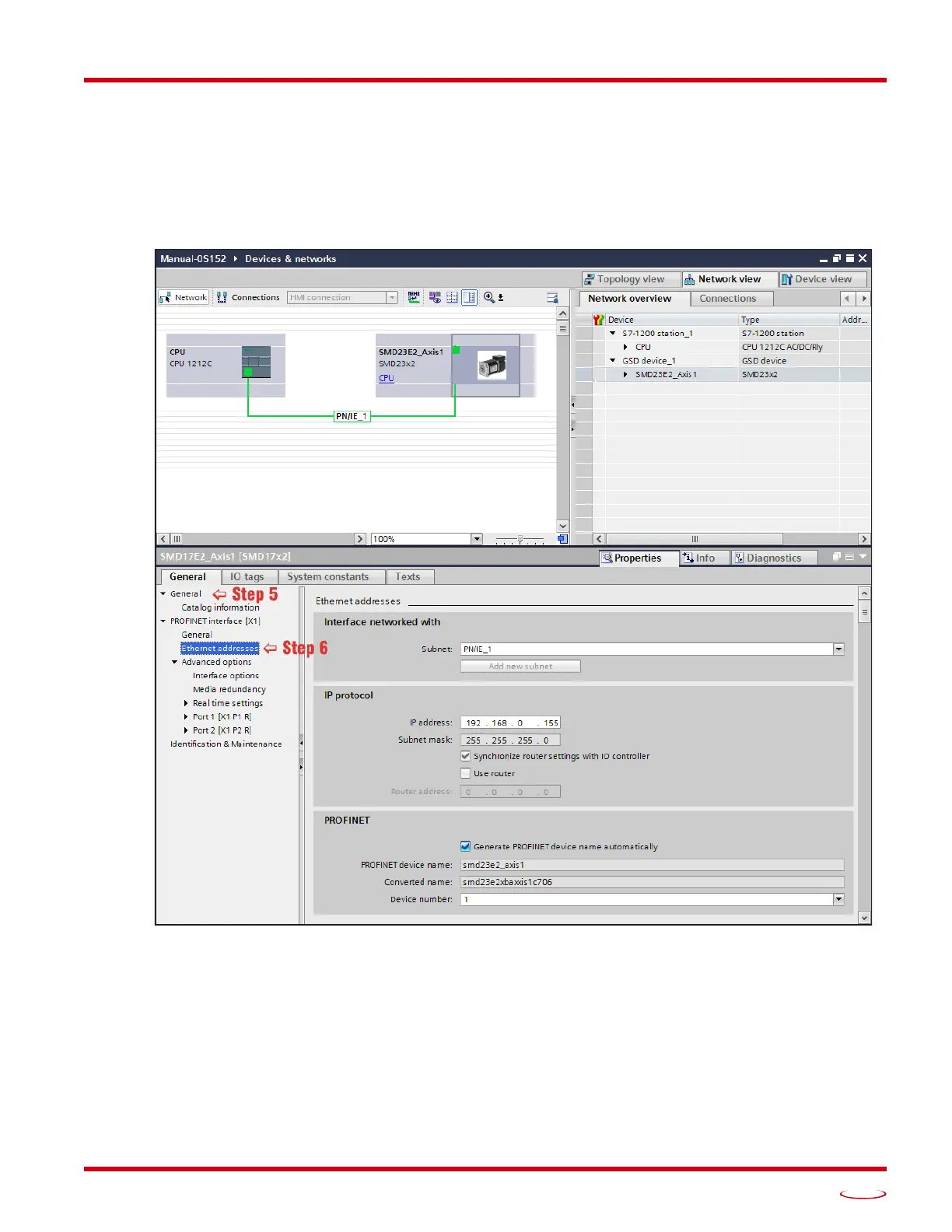

Figure T7.3 Networked Driver IP Addressing
