7.4 Add the SMD23E2 or SMD24E2 to the PROFINET Network
1) With the project open in Project View, double click on “Device & Networks” in the project tree.
2) If need be, click on the “Hardware Catalog” vertical tab to open the Hardware Catalog.
3) You can search for “SMD23”, or browse to the SMD23x2 icon by clicking through Other field devices +>
PROFINET IO +> IO +> Advanced Micro Controls Inc. +> AMCI_Products +> AMCI_Drives. Drag
and drop the appropriate icon onto the PROFINET network.
Both the SMD23E2 and SMD24E2 units use the SMD23x2 profile from the GSDML file.
4) Drag the green square on the SMD23x2 icon onto the PROFINET network line to connect the device to the
network.

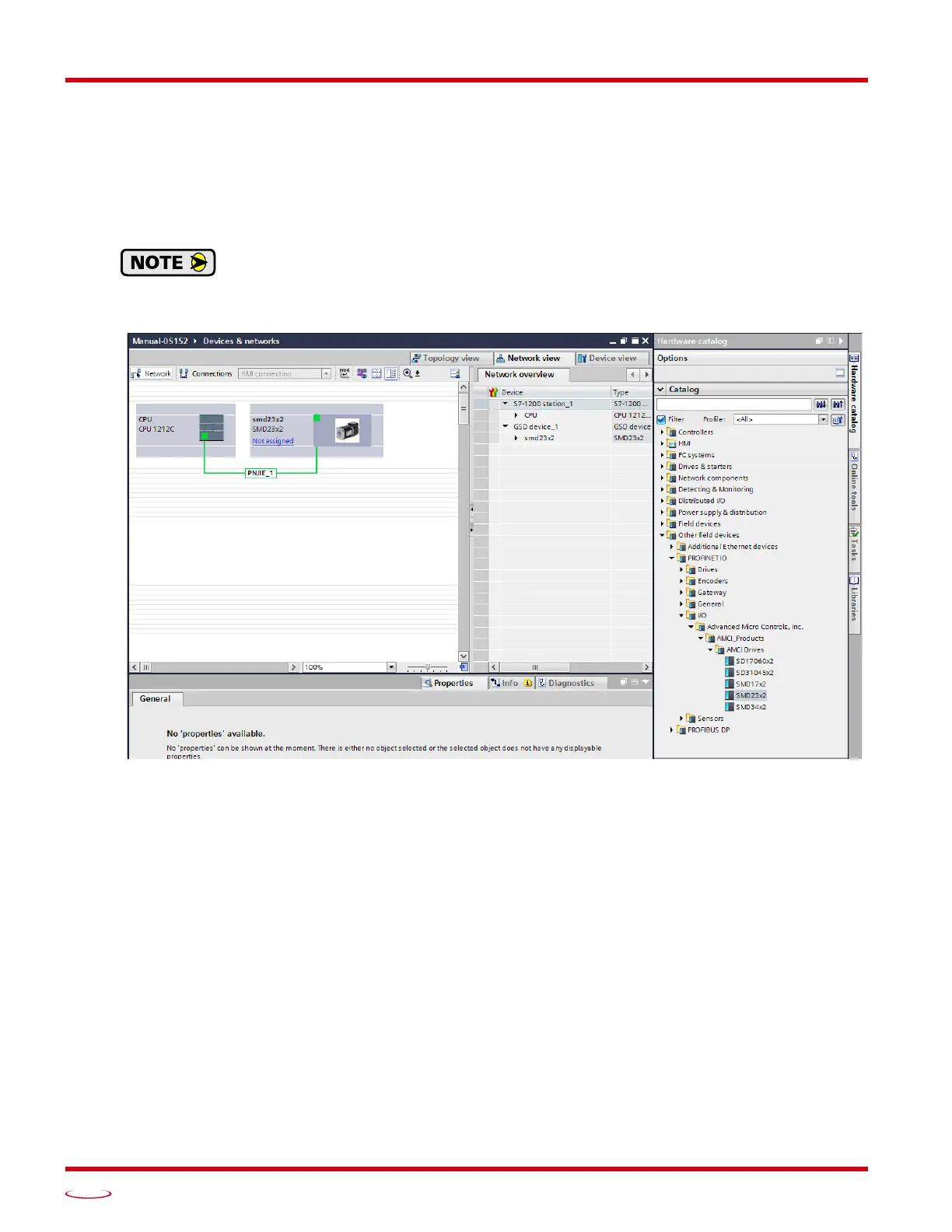

Figure T7.2 Networked Driver Added to PROFINET Network
