2.2b Use the Embedded Web Server (continued)
2.2b.3 Network Setup Page (continued)
5) If the values are accepted, the following pages will be displayed while the data is being written to the unit.
Wait for the pop up window to appear before cycling power to the SMD23E2 or SMD24E2.
Cycling power before this window appears may corrupt the non-volatile memory of the unit.
The SMD23E2 or SMD24E2 unit will also flash its Network Status LED red to indicate that
power must be cycled.

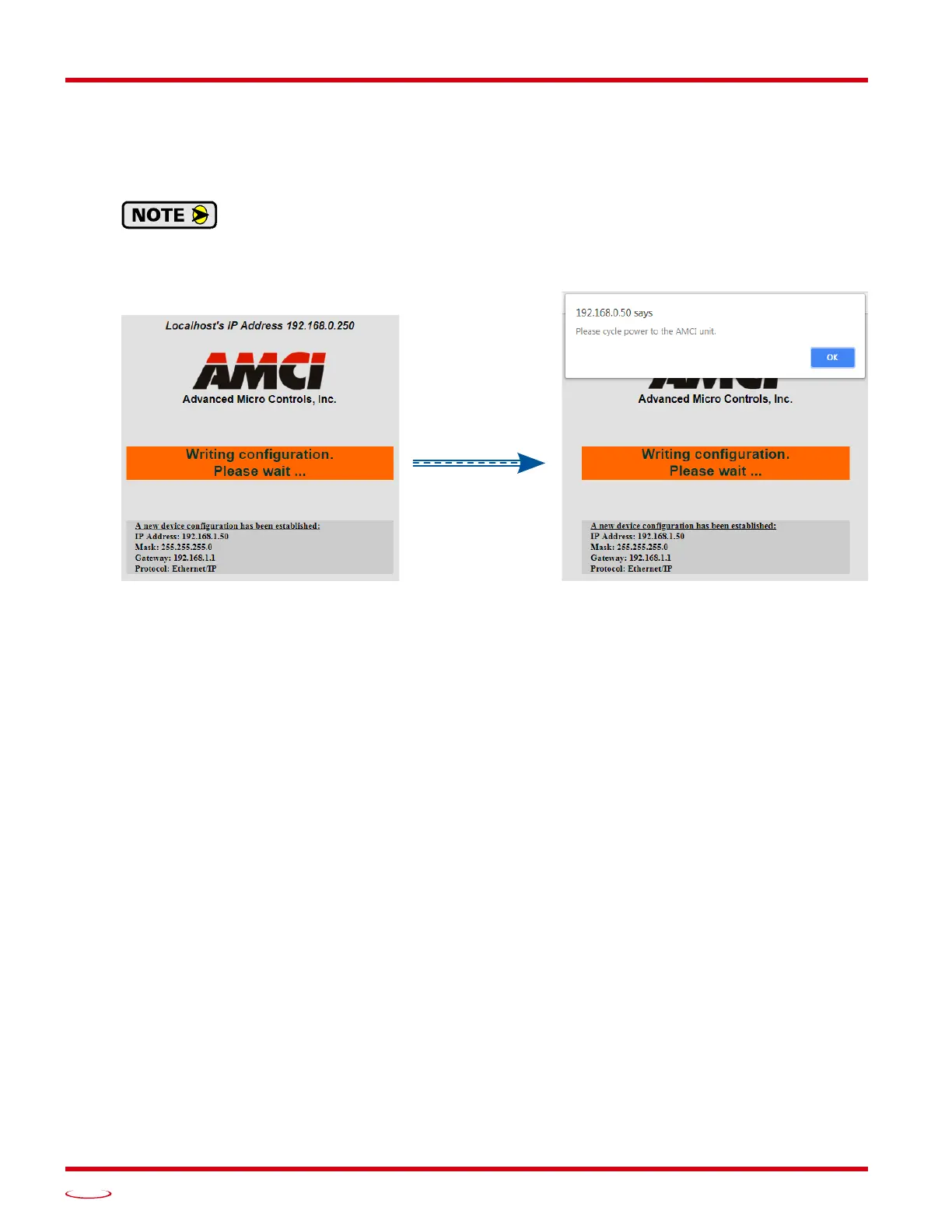

Figure R6.6 Write Configuration to Flash Memory Pages
6) Once instructed to, cycle power to the unit. You can now enter the new IP address into the address bar of
your web browser to reconnect with the SMD23E2 or SMD24E2.
Task Complete
2.2c Use the AMCI NET Configurator Utility
PREREQUISITE: The unit must be configured for the EtherNet/IP protocol. EtherNet/IP is the communica-
tions protocol used by the AMCI NET Configurator utility. Once connected to the unit, you can select any IP
address and protocol supported by the device.
PREREQUISITE: You must know the present IP address. The factory default address is 192.168.0.50.
PREREQUISITE: Task 1.6: Power Wiring found on page 90. You must be able to power the unit.
PREREQUISITE: Tasks: 1.8 and 1.9, 1.10, or 1.11, starting on page 91. You must attach your SMD23E2 or
SMD24E2 to your computer.
PREREQUISITE: Optional Task A: Configure Your Network Interfaces. (page 129) The network inter-
faces on your computer must be on the same subnet before you can communicate with the unit.
2.2c.1 Download the AMCI Net Configurator Utility
The AMCI Net Configurator utility is available on our website, www.amci.com. The latest version available
should be used. It can be found in our Support section under Software. The program exists as a ZIP file, and at
the time of this writing, the link was “AMCI Configuration software for all networked products...”.
CHANGES TO
ONCE THE WRITE
IS COMPLETED
To Next Page
