SMD23E2 and SMD24E2 User’s Manual

SMD23E2 & SMD24E2 SPECIFICATIONS

Torque and Power Curves

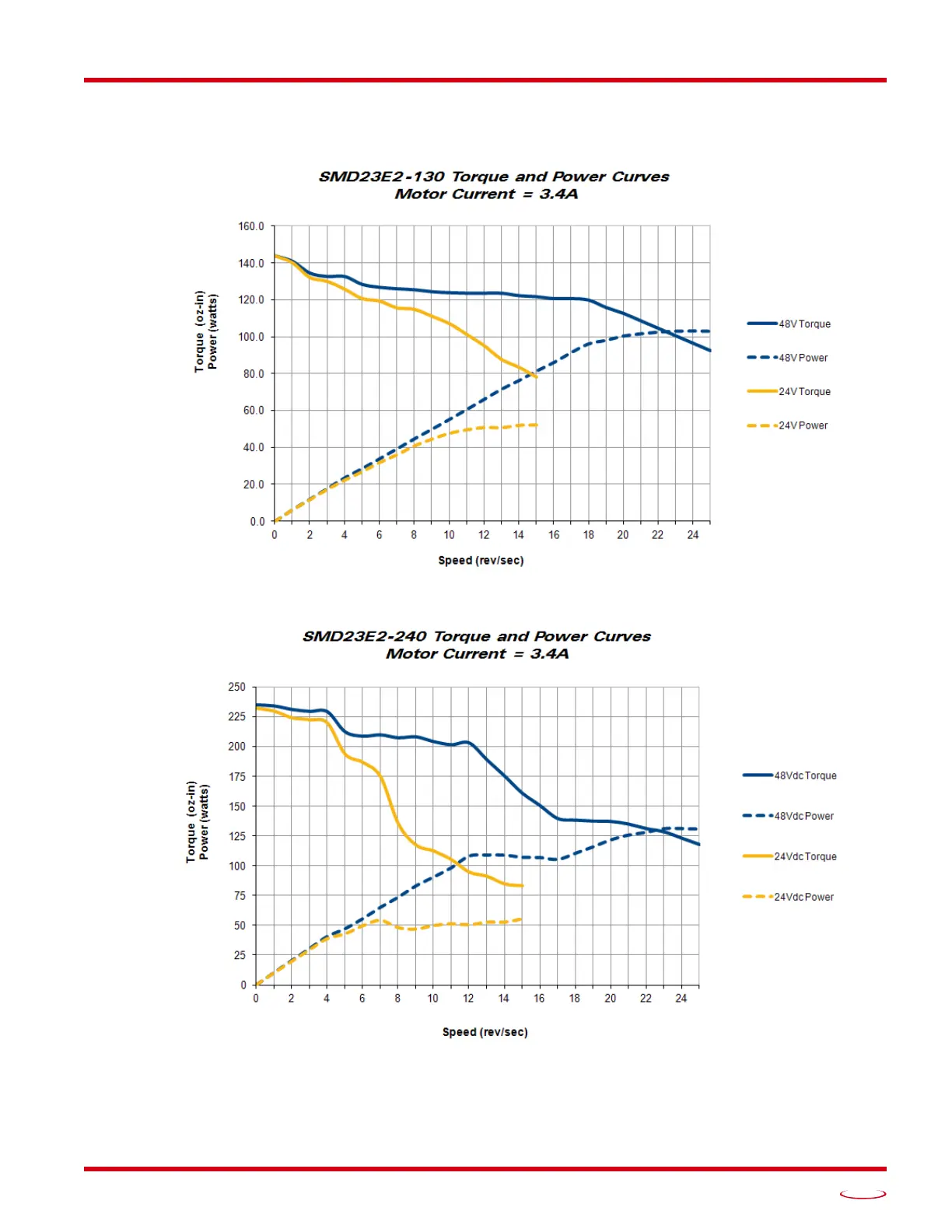

Figure R1.7 SMD23E2-130 Torque and Power Curves

Figure R1.8 SMD23E2-240 Torque and Power Curves
