6.4 USB(P) interface specifications
6.4.1 Specifications (Conform to Centronics)
Data transmission : USB to UART(TTL) & USB TO parallel
Synchronization : Asynchronous
Baud rates : Adjustable
Parity : None parity
Bit length : 8 data bits
Stop bits : 1 or more

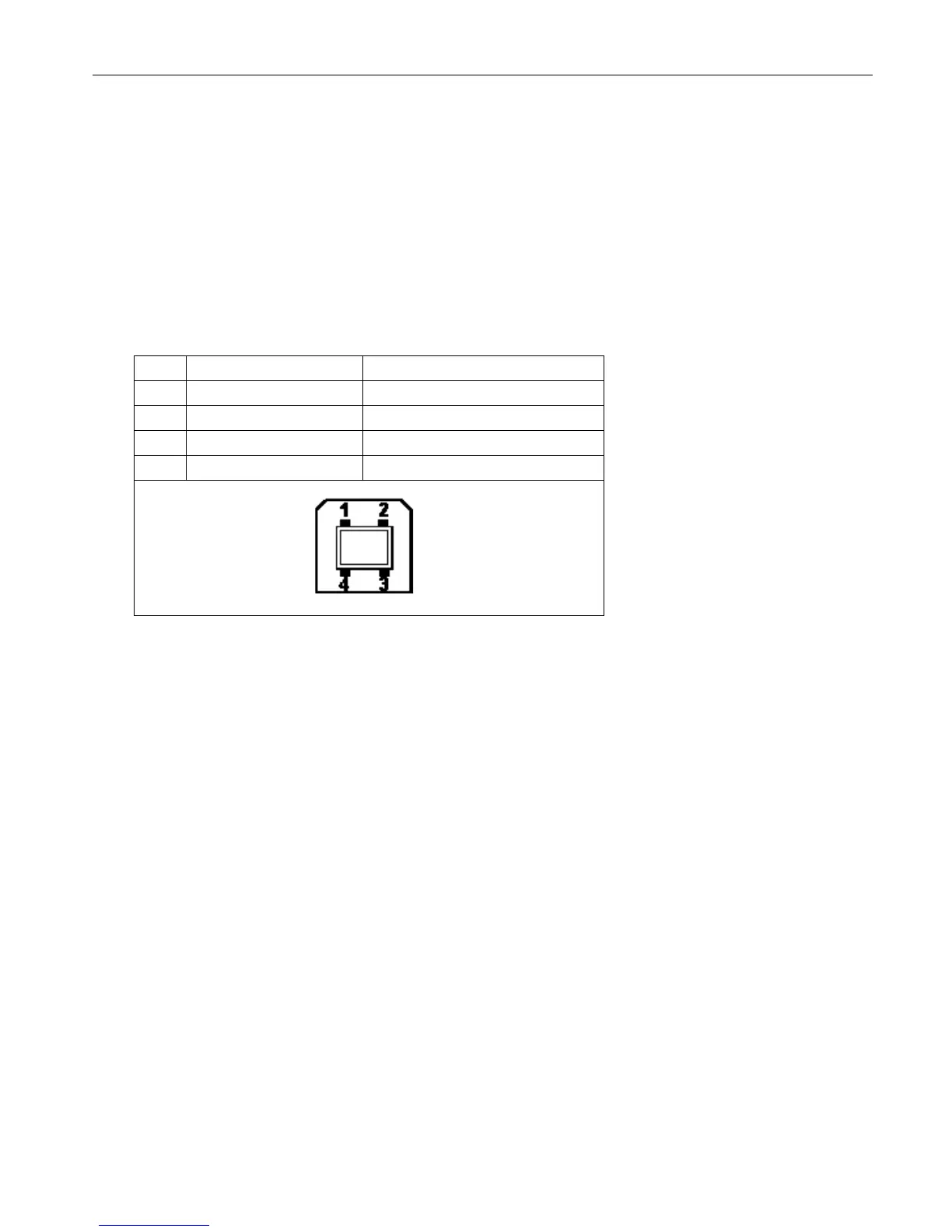

6.4.2 Pin assignment
No. Signal Name Function
1 5VDC Power input
2 USBD- USB data signal -
3 USBD+ USB data signal +
4 GND Signal ground
