WP-T800 1 Station Thermal Line Printer
- 21 -
6.5 Ethernet interface specifications
6.5.1 Specifications (Conform to Centronics)
Connector : RJ45
Isolation : 1.5KV Magnetic
Speed : 10/100Mbps
Protocols : ICMP, ARP, IP, TCP, UDP, DHCP, HTTP

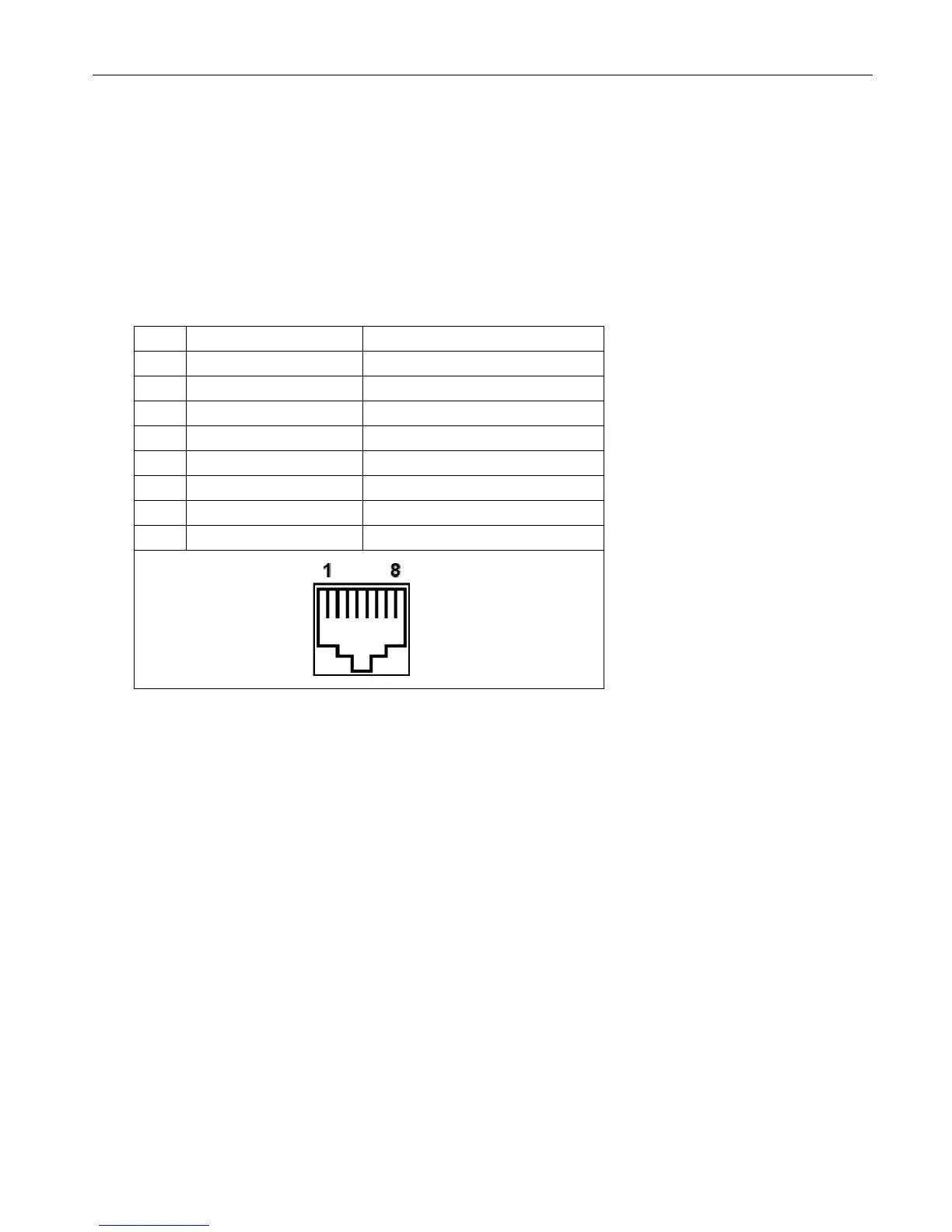

6.5.2 Pin assignment
No. Signal Name Function
1 TX+ Transmit data +
2 TX- Transmit data -
3 RX+ Receive data +
4 NC Reserve
5 NC Reserve
6 RX- Receive data -
7 NC Reserve
8 NC Reserve
