WP-T800 1 Station Thermal Line Printer
- 7 -

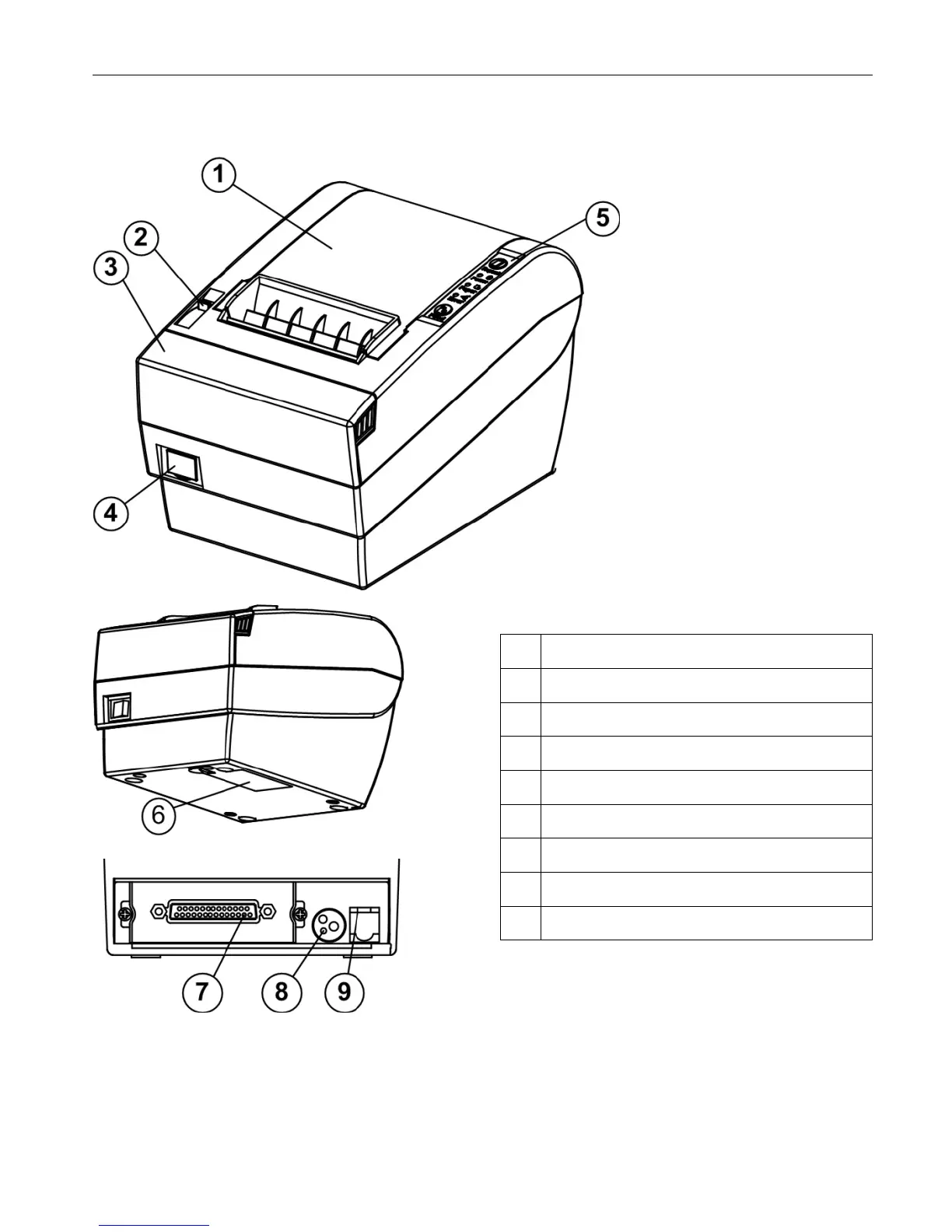

3. EXTERNAL APPEARANCE AND PART DESCRIPTIONS
1
Printer cover
2
Cover open lever
3
Cutter cover
4
Power switch
5
Control panel
6
DIP switch cover
7
Interface connector
8
Power connector
9
Cash Drawer connector
