WP-T800 1 Station Thermal Line Printer
- 22 -

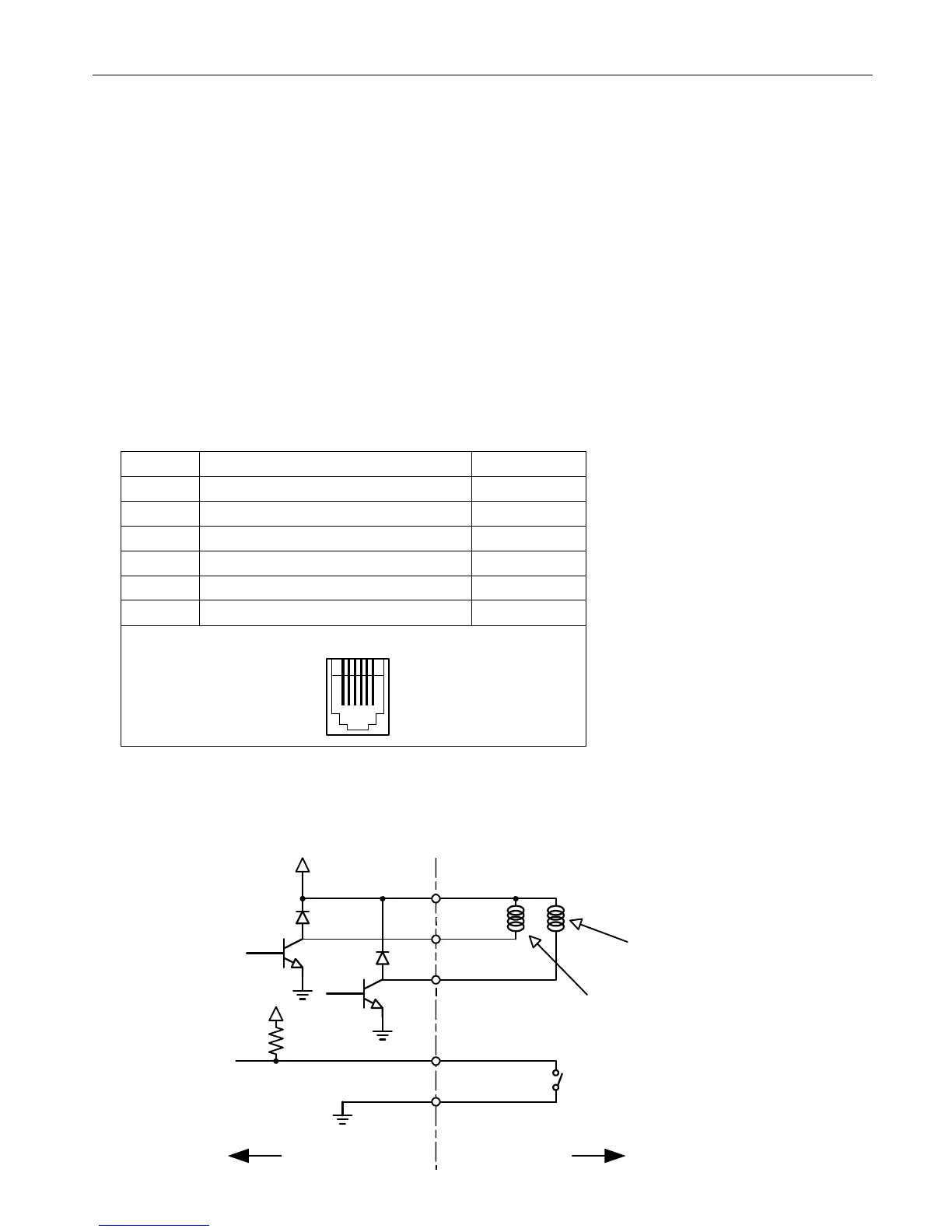

7. DRAWER KICK CONNECTOR
7.1 Specifications
(1) Data Transfer System
The pulse specified by “ESC p” is output to this connector. The host can confirm
the status of the input signal by using the “ESC u” command.
(2) Electrical Characteristics
1. Drive voltage : DC 24V
2. Drive current : 0.8A at maximum (Should be within 510 ms)
3. Switch signal : Signal level “L” = 0 to 0.5V
“H” = 3 to 5V
7.2 Connector’s Pin Connection
No. Signal Name I/O
1 NC -
2
Drawer kick-out 1
Output
3 Drawer open/close signal Input
4 +24V -
5 Drawer kick-out 2 Output
6 Signal GND -
7.3 Drive Circuit
1 6
+24V
2
4
5
+5V
6
3
Printer Side User Side
Drawer 1
Drawer 2
