I/O Modules
3-36 ADAM 4000 Series User's Manual

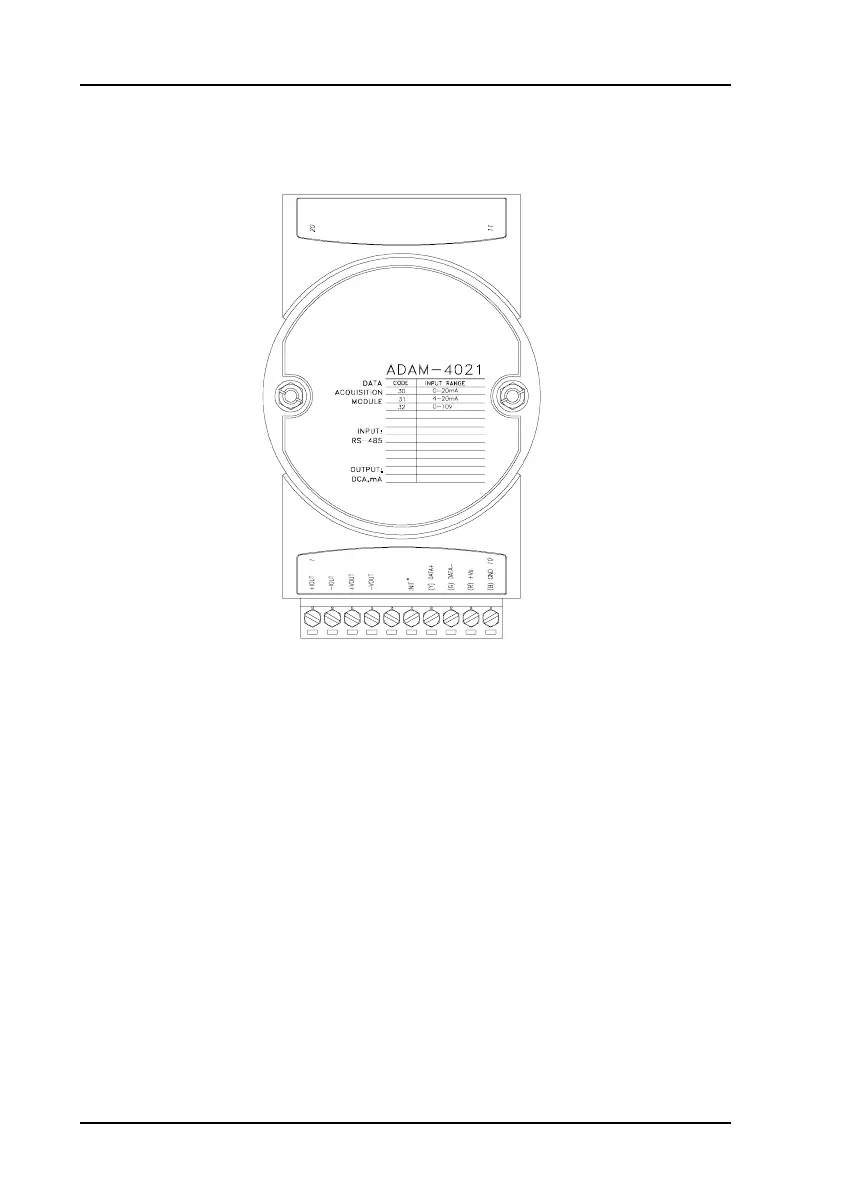

Figure 3-27 ADAM -4021 Analog Output Module
Depending on its configuration settings the module accepts the following
formats from the host computer:
- Engineering units
- Percent of full-scale range (FSR)
- Twos complement hexadecimal format,
Output types:
- Voltage: 0 to 10 V
(Slew rate: 0.0625 to 64 V/sec)
- Currents: 0 to 20 mA, or 4 to 20 mA.
(Slew rate: 0.125 to 128 mA/sec)
ADAM-4021
