ADAM-4053

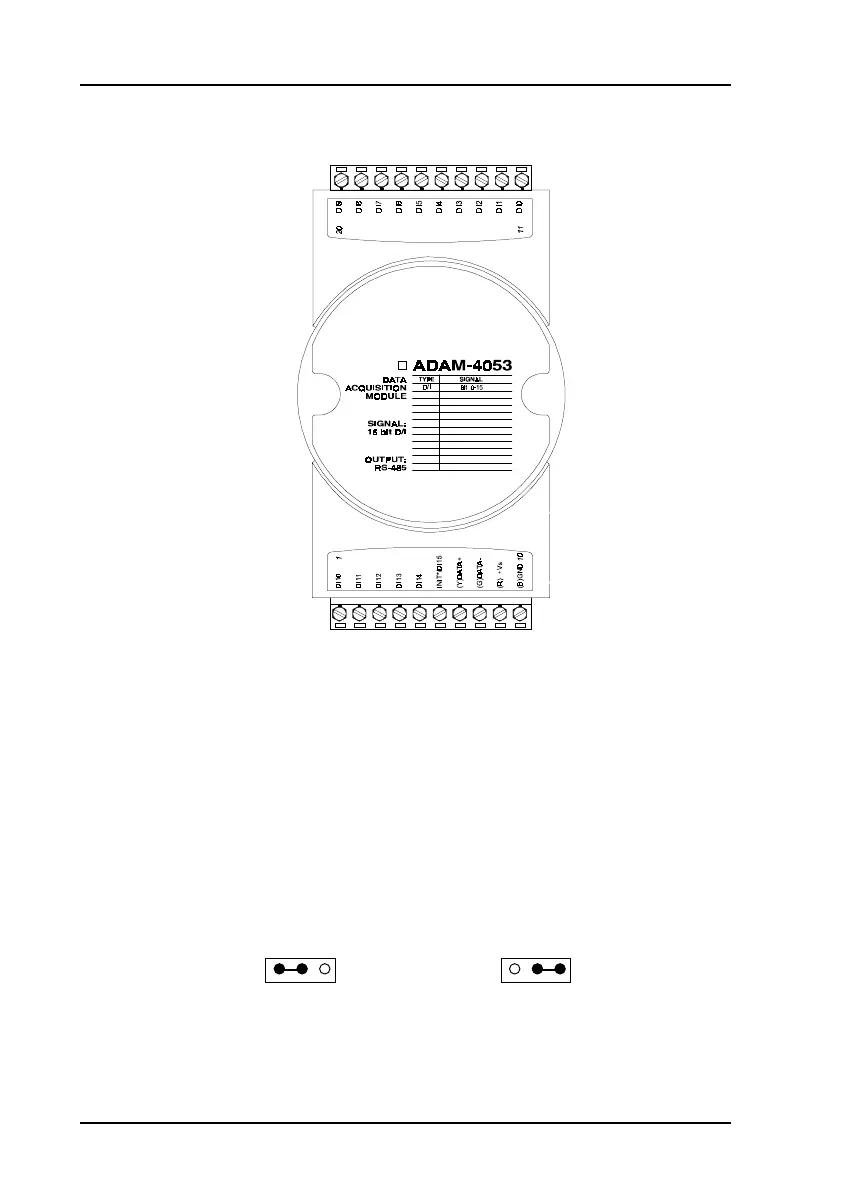

Figure 3-34 ADAM-4053 16-channel Digital Input Module
Channels: 16
Digital Input:
-Dry contact
logic level 0: Close to GND
logic level 1: OPEN
-Wet contact
logic level 0: +2 V max.
logic level 1: +4 V to +30 V
DI15 INIT*
DI15 INIT*
INIT*DI15
