Chapter 3
Chapter 3 I/O Modules 3-45

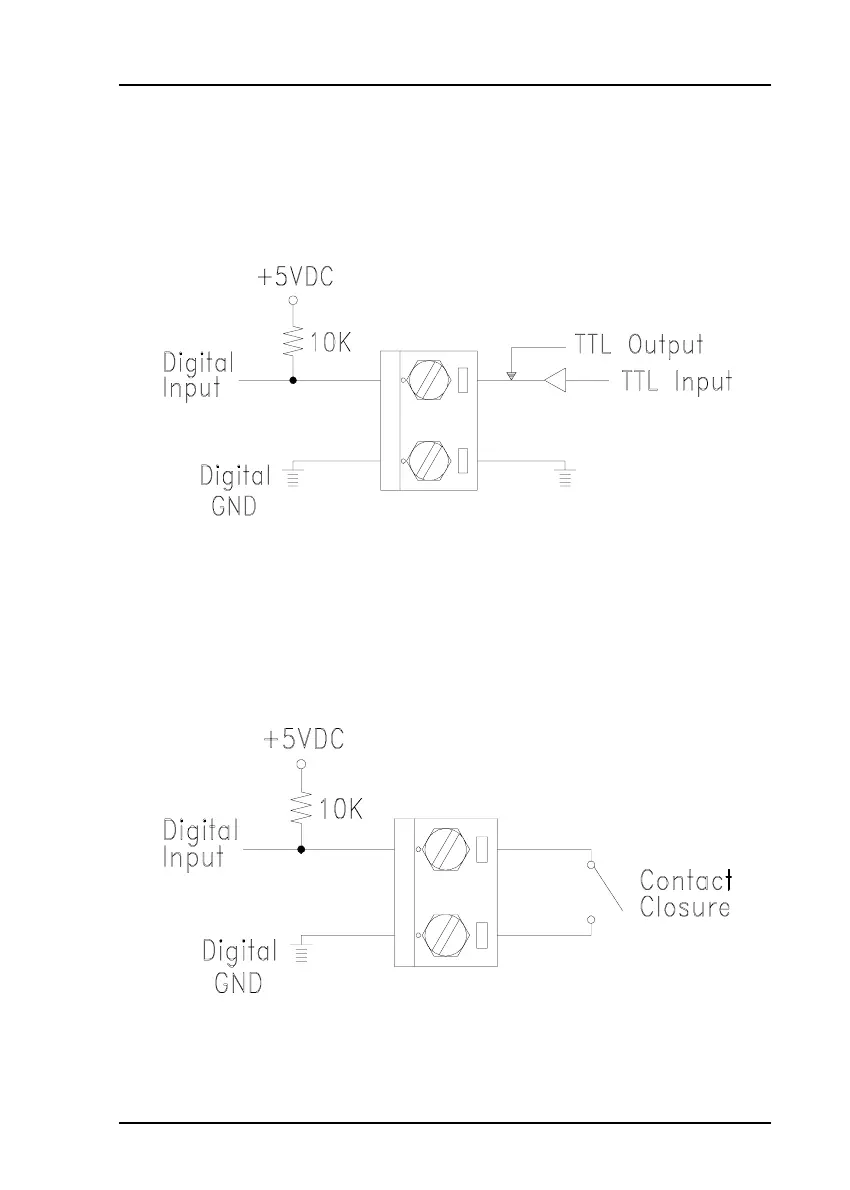

Figure 3-36 Contact Closure Input (ADAM-4050)
Application Wiring
The following give you examples of how to connect various types of digital
I/O applications to your ADAM modules.
Figure 3-35 TTL Input (ADAM-4050)
