115 AIMB-275 User Manual
Appendix A I/O Pin Assignments

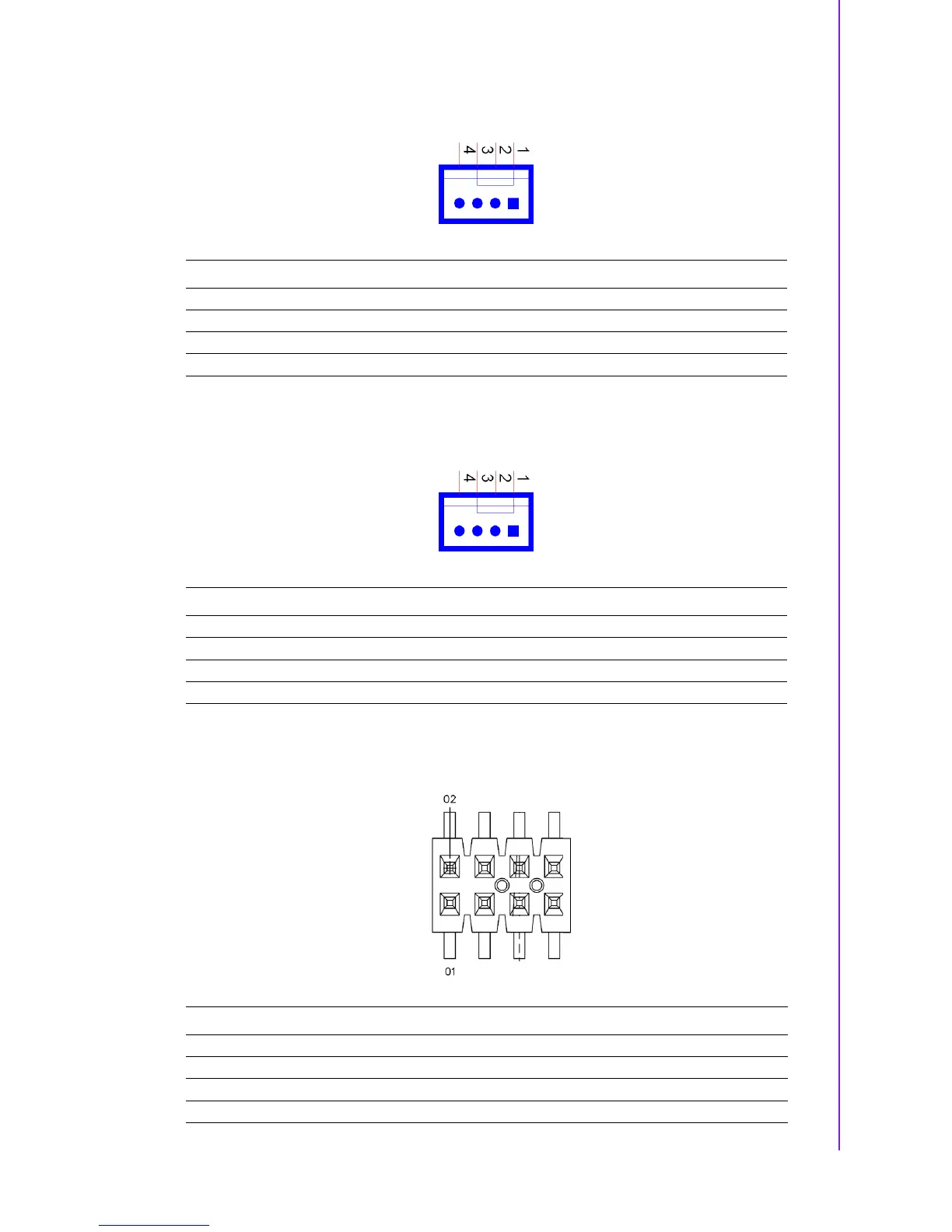

A.12 CPU FAN Power Connector (CPUFAN1)
A.13 SYSTEM FAN Power Connector (SYSFAN2)
A.14 SPI Programming Pin Header (SPI_CN1)
Pin Signal
1GND
2+12V
3 DETECT
4 PWM IN
Pin Signal
1GND
2+12V
3 DETECT
4 PWM IN
Pin Signal Pin Signal
1 CS# 2 +3.3V
3MISO4X
5X6SCK
7GND8MOSI
