Advantech AIMB-275 - Case Open Selection Pin Header (JCASEOP_SW1); Case-Open Detect Connector (JCASE1)

AIMB-275 User Manual 126

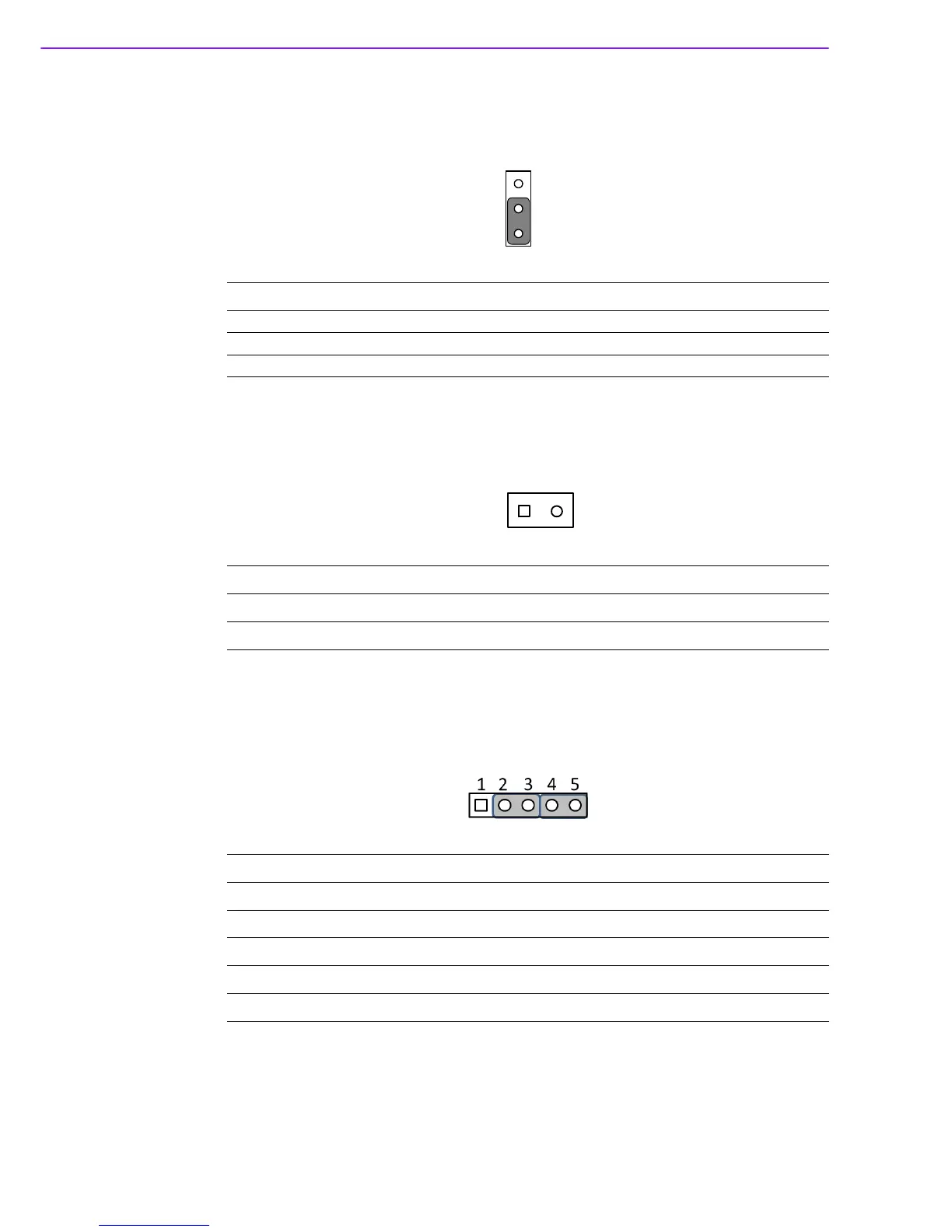

A.35 Case open selection pin header
(JCASEOP_SW1)
A.36
Case-Open Detect Connector (JCASE1)
A.37
Watchdog Timer Output and OBS Beep
(JWDT1+JOBS1)
Pin Signal
1 CASEOP# w/ normal close switch
2 CASE OPEN Setting
3 CASEOP w/ normal open switch
1
Pin Signal
1 Intruder#
2Gnd
1 2
Pin Signal
1NC
2 Watch dog reset# output
3 System reset input#
4 SIO Warning Beep output
5 SP1 Buzzer Beep input
