AIMB-275 User Manual 118

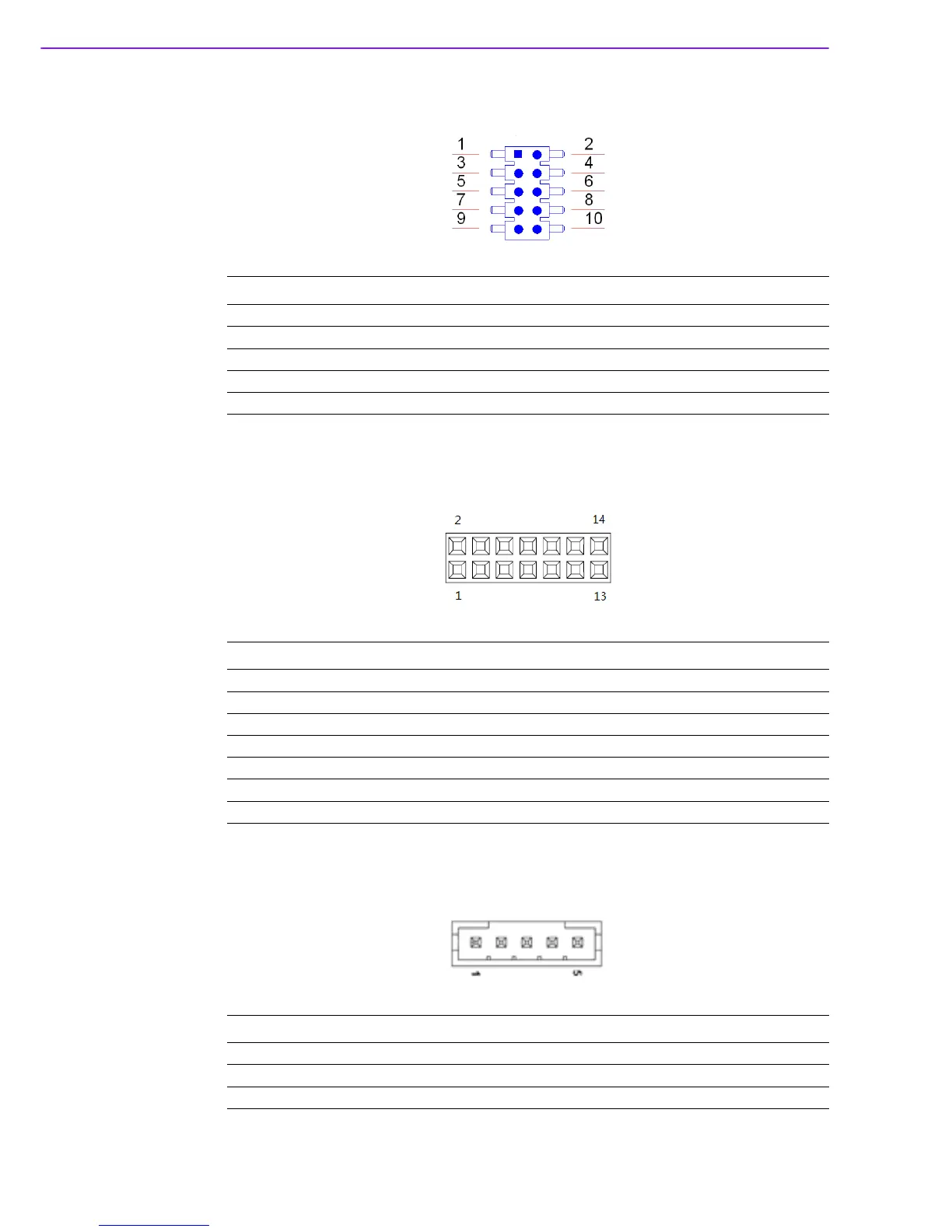

A.20 General Purpose I/O Pin Header (GPIO1)
A.21
Low Pin Count Header (LPC1)
A.22 PS/2 Keyboard and Mouse Connector (KBMS1)
Pin Signal Pin Signal
1 GPIO0 2 GPIO4
3 GPIO1 4 GPIO5
5 GPIO2 6 GPIO6
7 GPIO3 8 GPIO7
9+5Vsb10GND
Pin Signal Pin Signal
1 CLK_33M 2 AD1
3 RESET# 4 AD0
5FRAME#6+3.3V
7 AD3 8 GND
9 AD2 10 SMB_CLK
11 SERIRQ 12 SMB_DATA
13 +5VSB 14 +5V
Pin Signal Pin Signal
1 KB CLK 2 KB DATA
3 MS CLK 4 GND
5+5V6MS DATA
