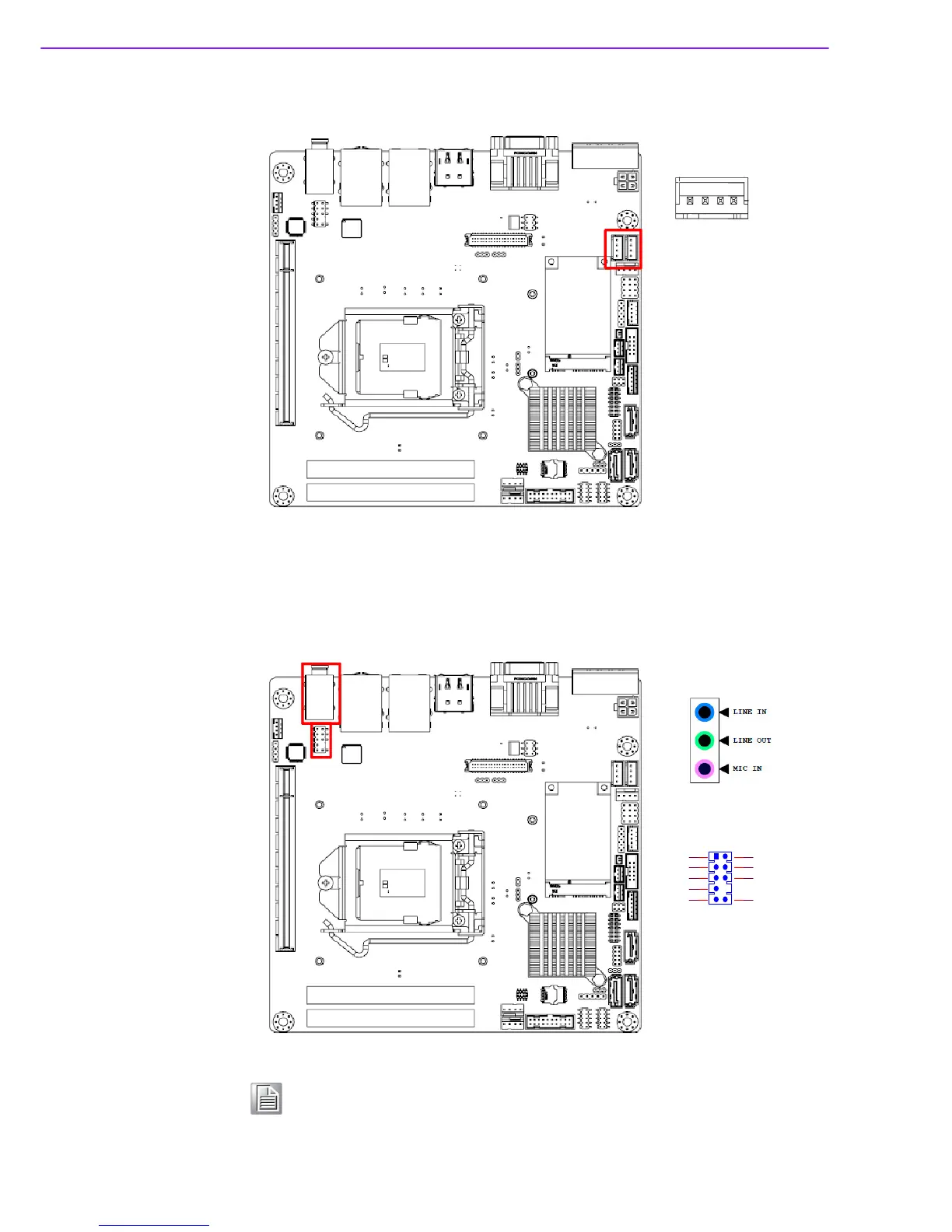

2.12 SATA_PWR1/2
2.13 HD Analog Audio Interface (AUDIO1, FPAUD1)
Front headphone connector (FPAUD1) is for a chassis-mounted front panel audio I/O
module that supports either HD Audio or legacy AC’97 (optional) audio standard.
Connect this connector with the front panel audio I/O module cable.
Note! For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this con-
nector to take advantage of the motherboard’s high definition audio
capability.
2
4
6
10
1
3
5
7
9
AUDIO1
FPAUD1
