39 MIC-770 V2 User Manual
Chapter 3 BIOS Operation
MEBx Resolution Settings

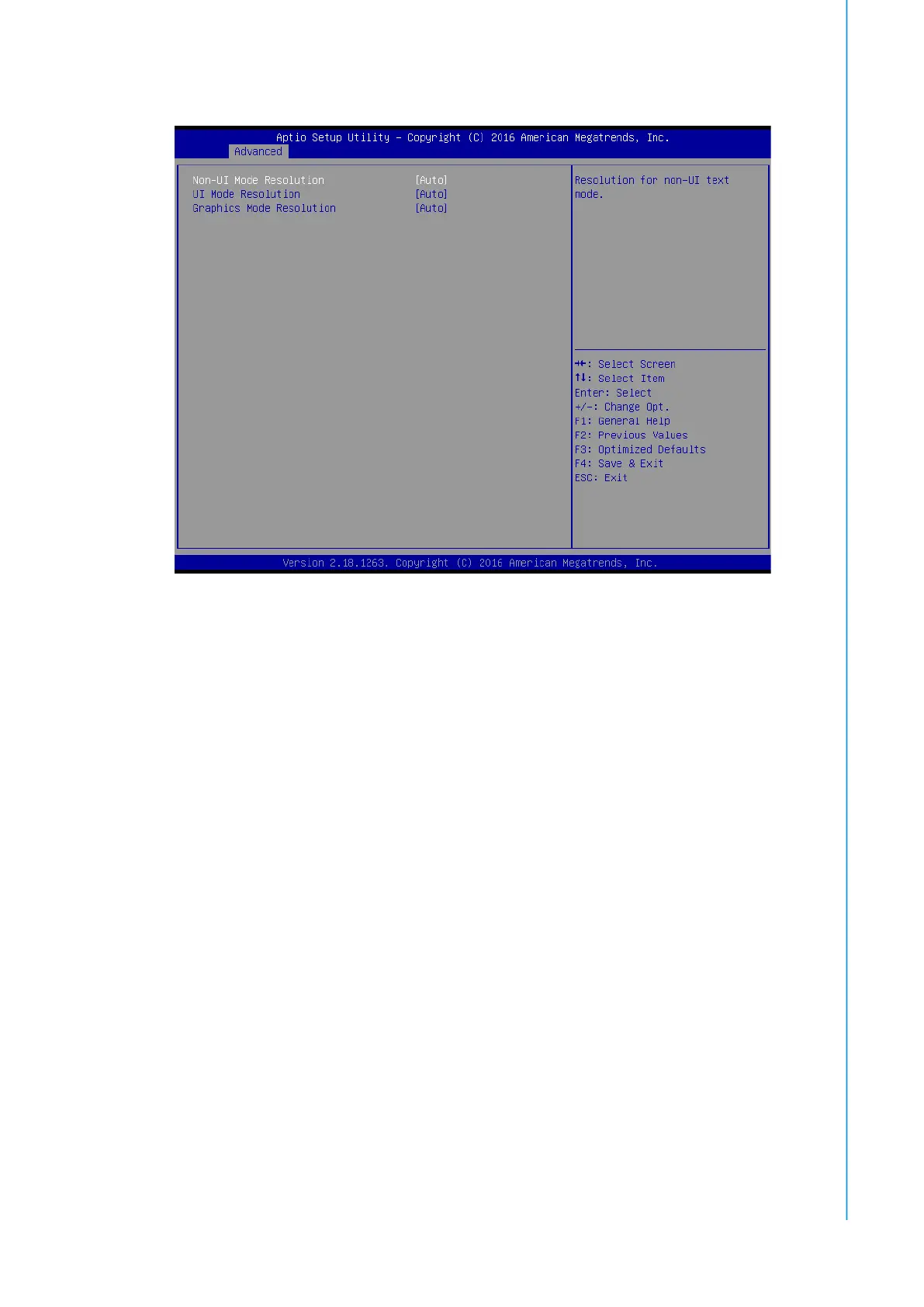

Figure 3.15 MEBx Resolution Settings
– Non-UI Mode Resolution
Set resolution for non-UI text mode.
– UI Mode Resolution
Set resolution for UI text mode.
– Graphics Mode Resolution
Set resolution for graphics mode.
