Advantech SIMB-982 User Manual

54 SIMB-982 User Manual
Appendix A I/O Pin Assignments

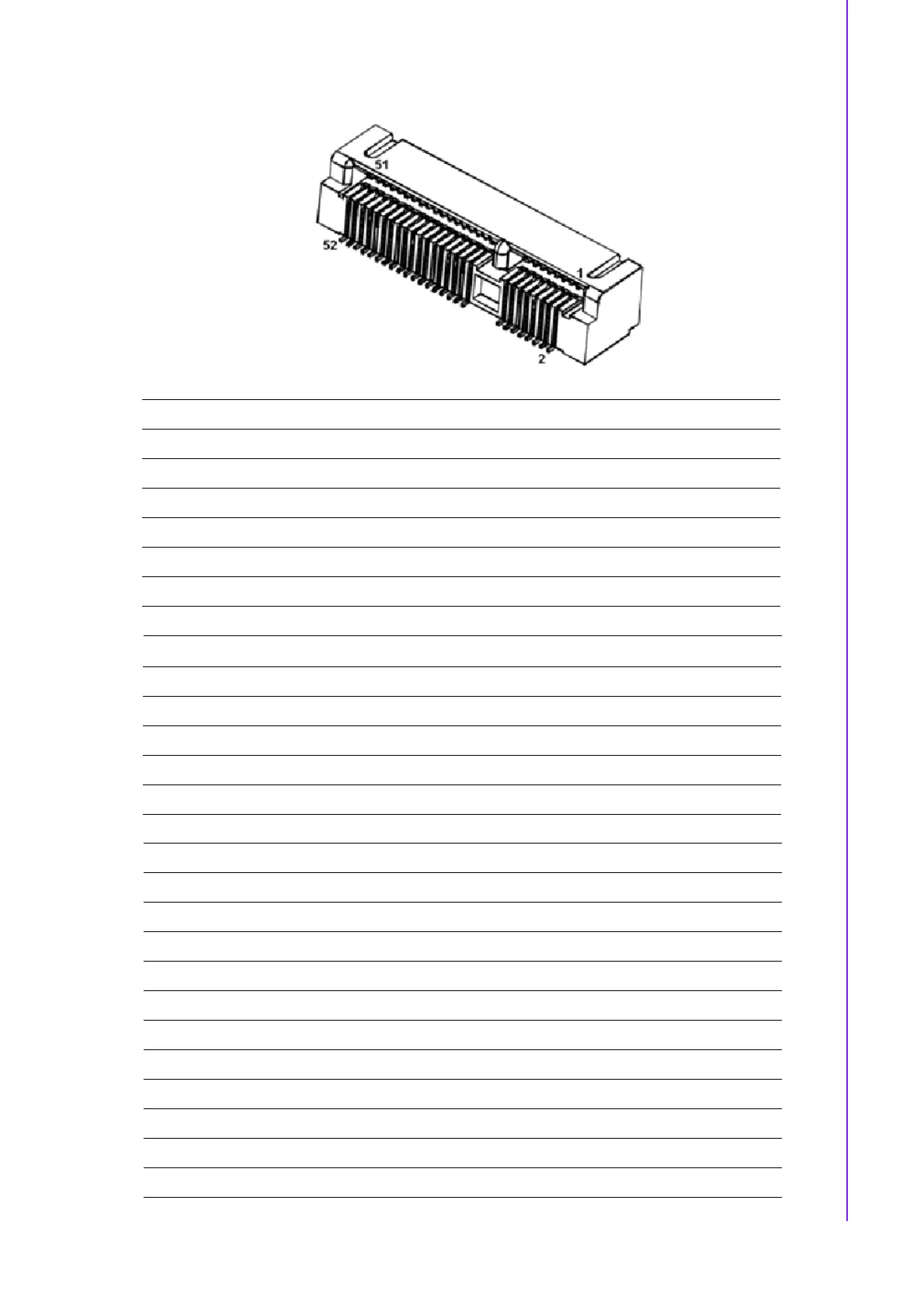

A.22 Mini Card Slot (MPCIE_CARD1)
Pin Signal Pin Signal
1 WAKE# 2
+3.3V
3 Reserved 4 GND
5 Reserved 6 +1.5V
7 CLKREQ# 8 Reserved
9 GND 10 Reserved
11 REFCLK- 12 Reserved
13 REFCLK+ 14 Reserved
15 GND 16 Reserved
17 Reserved 18 GND
19 Reserved 20 DISABLE#
21 DETECT# 22 RESET#
23 PCIE_RX+ 24
+3.3V
25 PCIE_RX- 26 GND
27 GND 28 +1.5V
29 GND 30 SMB_CLK
31 PCIE_TX- 32 SMB_DATA
33 PCIE_TX+ 34 GND
35 GND 36 USB_D-
37 GND 38 USB_D+
39
+3.3V
40 GND
41
+3.3V 42 Reserved
43 V1.2_DETECT# 44
45 Reserved 46 Reserved
47 Reserved 48 +1.5V
49 Reserved 50 GND
51 52
+3.3V
Reserved
Reserved
