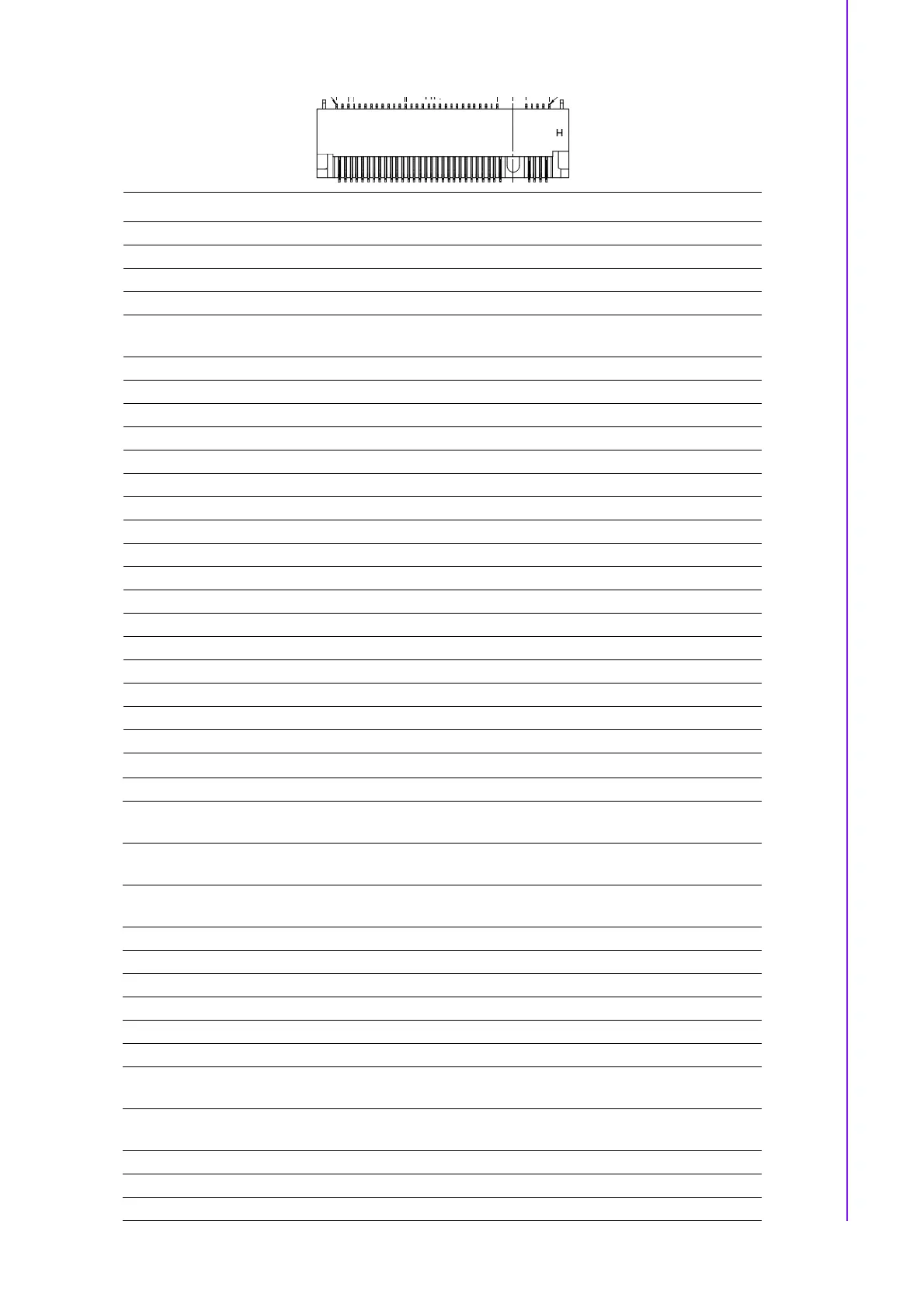

Appendix A I/O Pin Assignments
A.23 M.2 Slot (NGFF1)
Pin Signal Pin Signal
1GND23.3V
3GND43.3V
5 PERn3 6 N/C
7 PERp3 8 N/C
9GND10
DAS/DSS# (I/O)/
LED1# (I)(0/3.3V)
11 PETn3 12 3.3V
13 PETp3 14 3.3V
15 GND 16 3.3V
17 PERn2 18 3.3V
19 PERp2 20 N/C
21 GND 22 N/C
23 PETn2 24 N/C
25 PETp2 26 N/C
27 GND 28 N/C
29 PERn1 30 N/C
31 PERp1 32 N/C
33 GND 34 N/C
35 PETn1 36 N/C
37 PETp1 38 DEVSLP (O)
39 GND 40 N/C
41
PERn0
42 N/C
43
PERp0
44 N/C
45 GND 46 N/C
47
PETn0
48 N/C
49
PETp0
50
PERST# (O)(0/3.3V)
or N/C
51 GND 52
CLKREQ# (I/O)(0/
3.3V) or N/C
53 REFCLKn 54
PEWAKE# (I/O)(0/
3.3V) or N/C
55 REFCLKp 56 N/C
57 GND 58 N/C
59 Connector Key 60 Connector Key
61 Connector Key 62 Connector Key
63 Connector Key 64 Connector Key
65 Connector Key 66 Connector Key
67 N/C 68
SUSCLK(32kHz)
(O)(0/3.3V)
69
PEDET
70 3.3V
71 GND 72 3.3V
73 GND 74 3.3V
75 GND
