63 SIMB-982 User Manual
Appendix A I/O Pin Assignments

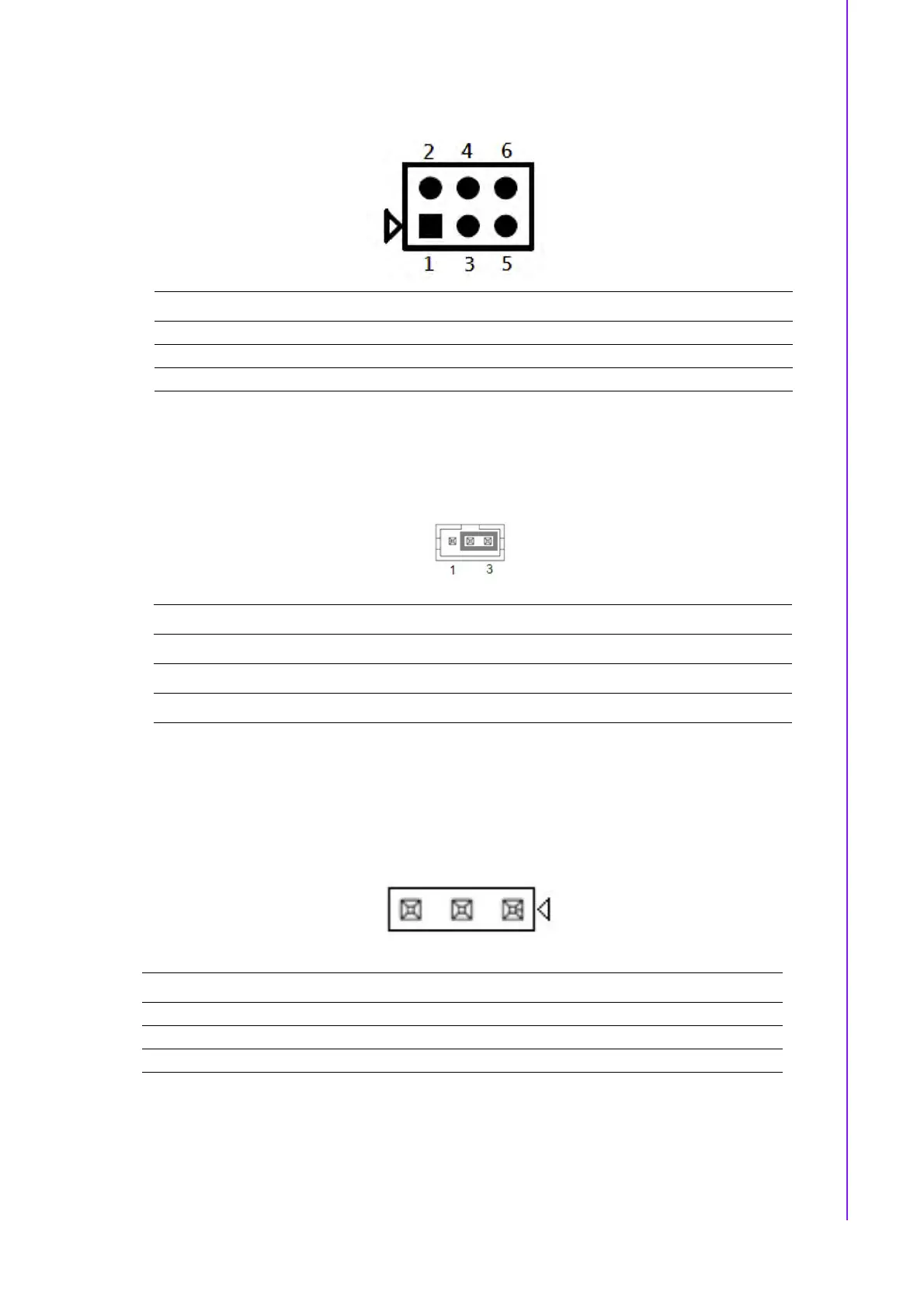

A.42 AT/ATX Mode Selection (JPSON1)
A.41 COM2_RI# Pin RI#/5V/12V Selection(JCOM2PWR)
Pin Signal Pin Signal
1
COM2_RI#
2
RI2xPOWERxJMP
3
RI2xPOWERxJMP
4
+5V
5
+12V
6
RI2xPOWERxJMP
Pin Signal
1AT
2+3.3V
3ATX
Pin Signal
1
NC
2
RTC Reset
3
GND
A.43 CMOS Clean Selection (JCMOS1)
