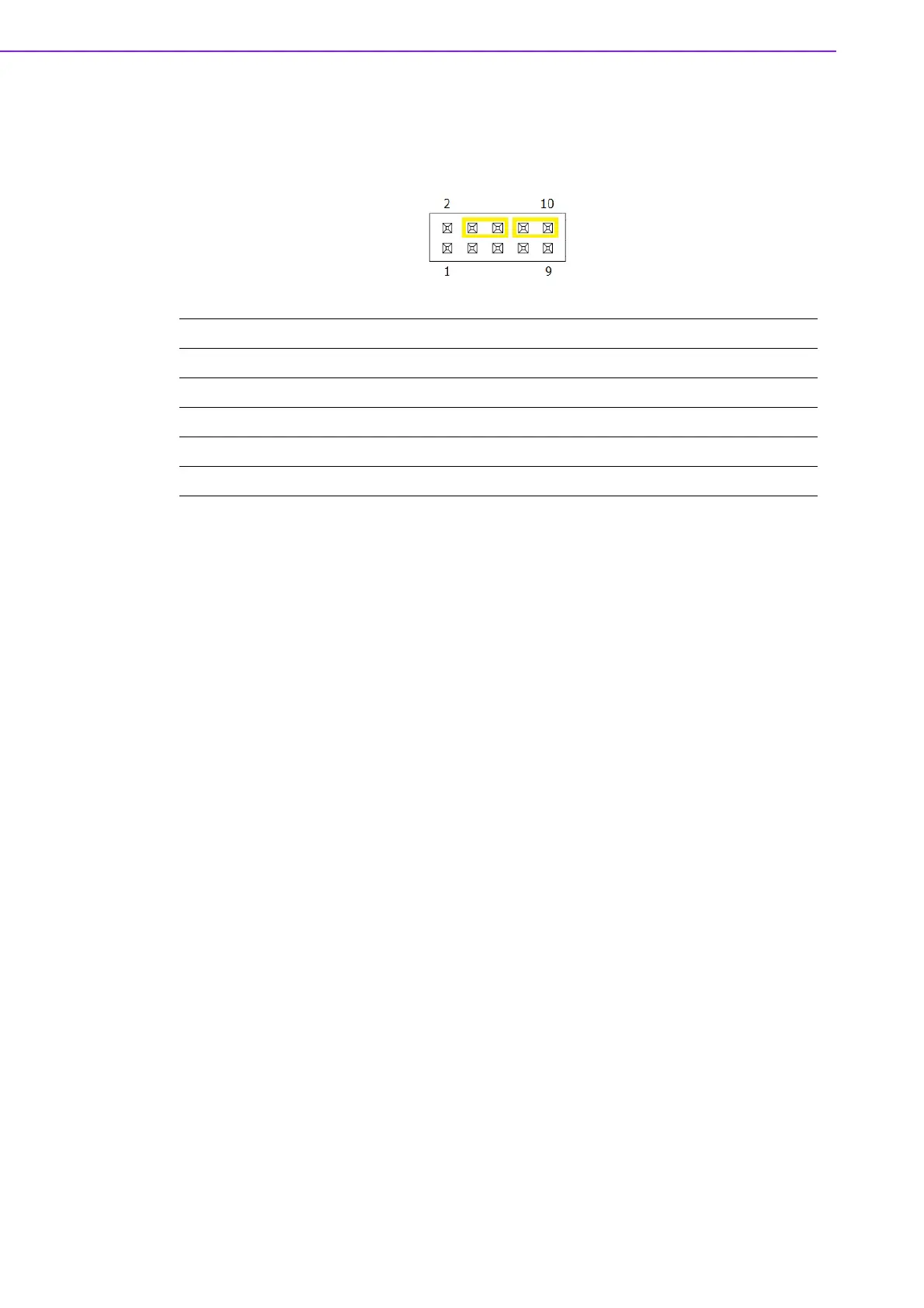

A.44 Watchdog Reset and OBS Alarm Selection
(JWDT1+JOBS1)
Pin Signal Pin Signal
1+5V 2NC
3 NC 4 Watch Dog Reset# output
5 IRRX 6 System Reset input#
7 GND 8 SIO Warning Beep output
9 IRTX 10 SP1 Buzzer Beep input
