13 WISE-4000 User Manual
Chapter 2 Product Specifications
2.2.2 Application Wiring

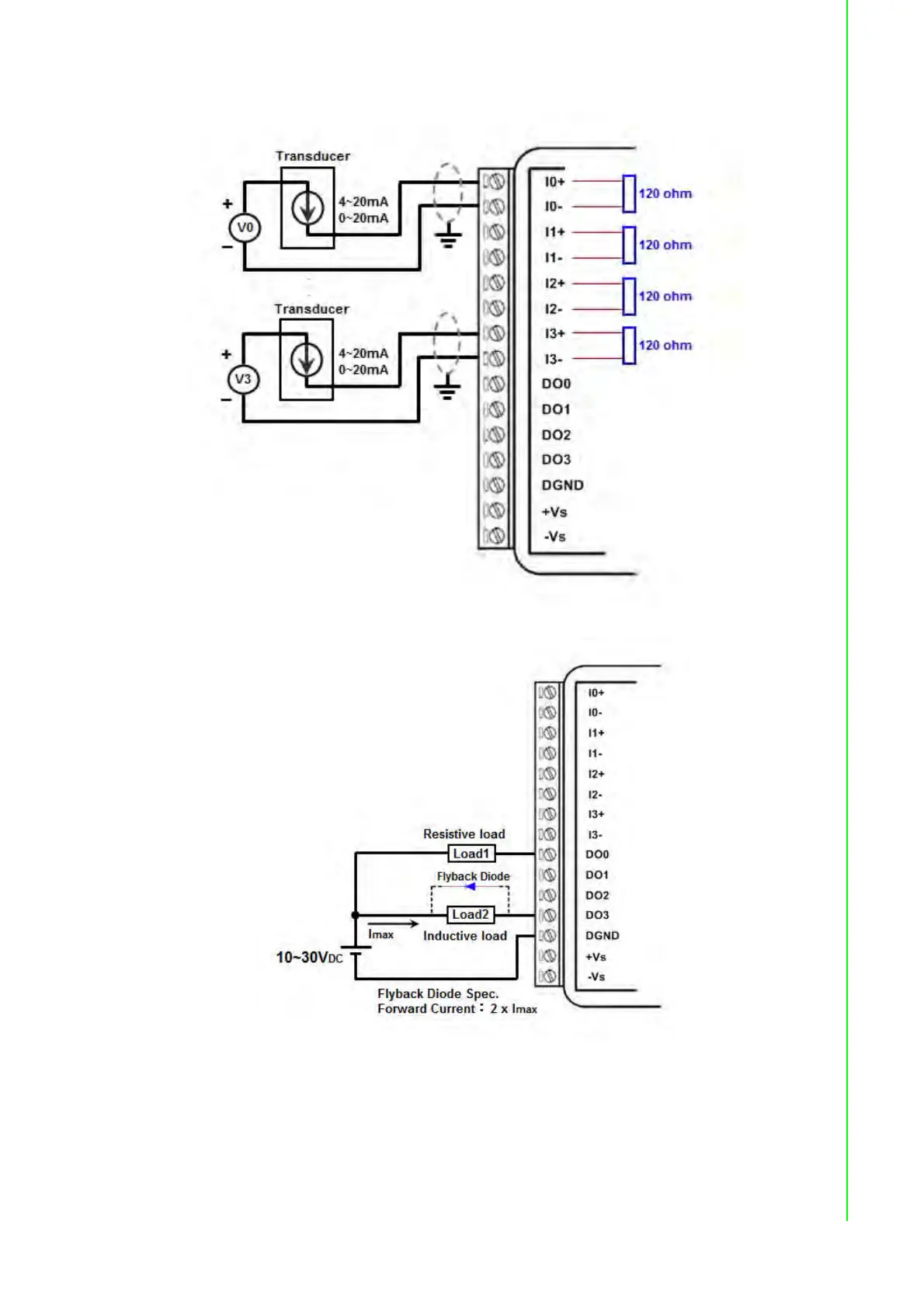

Figure 2.1 WISE-4010/LAN Current Input Wiring Diagram
Figure 2.2 WISE-4010/LAN Digital Output Wiring Diagram
