WISE-4000 User Manual 18
2.4.2 Application Wiring

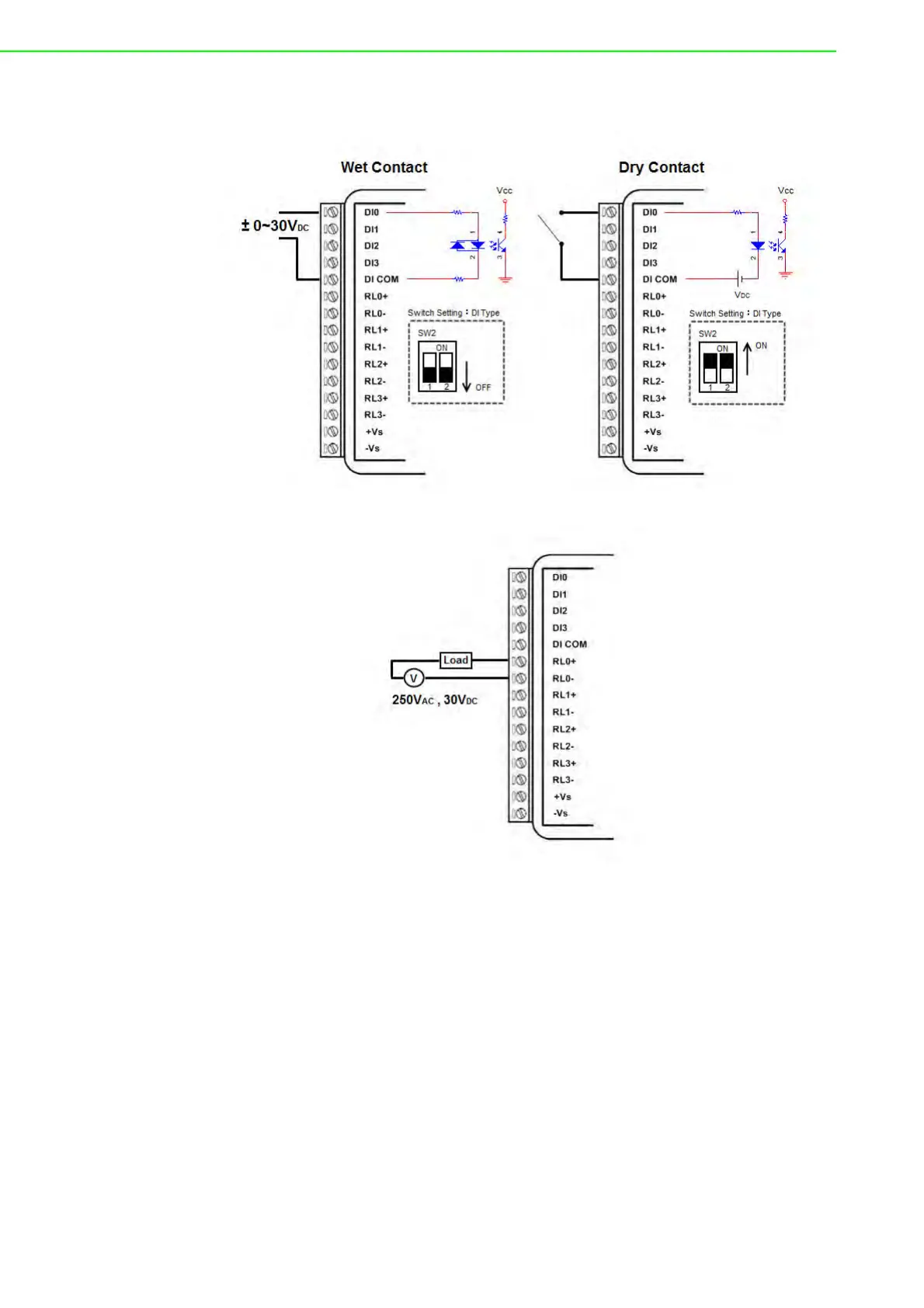

Figure 2.9 WISE-4060/LAN Digital Input Wiring Diagram
Figure 2.10 WISE-4060/LAN Relay Output Wiring Diagram
