Advantech WISE-4000 Series - Application Wiring

15 WISE-4000 User Manual
Chapter 2 Product Specifications
Digital Output
– Channels: 4
– Open collector to 30 V, 400 mA max. for resistance load
– Inductive loads require an external diode to eliminate back-EMF when the
DO is turned off
– Isolation: 3,000 V
rms
– On Resistance (R
DS(ON)
): 0.7 Ω (max.) @ 400mA, 25°C, 10V
– Supports 5 kHz Pulse Output
– Supports High-to-Low and Low-to-High Delay Output
2.3.2 Application Wiring

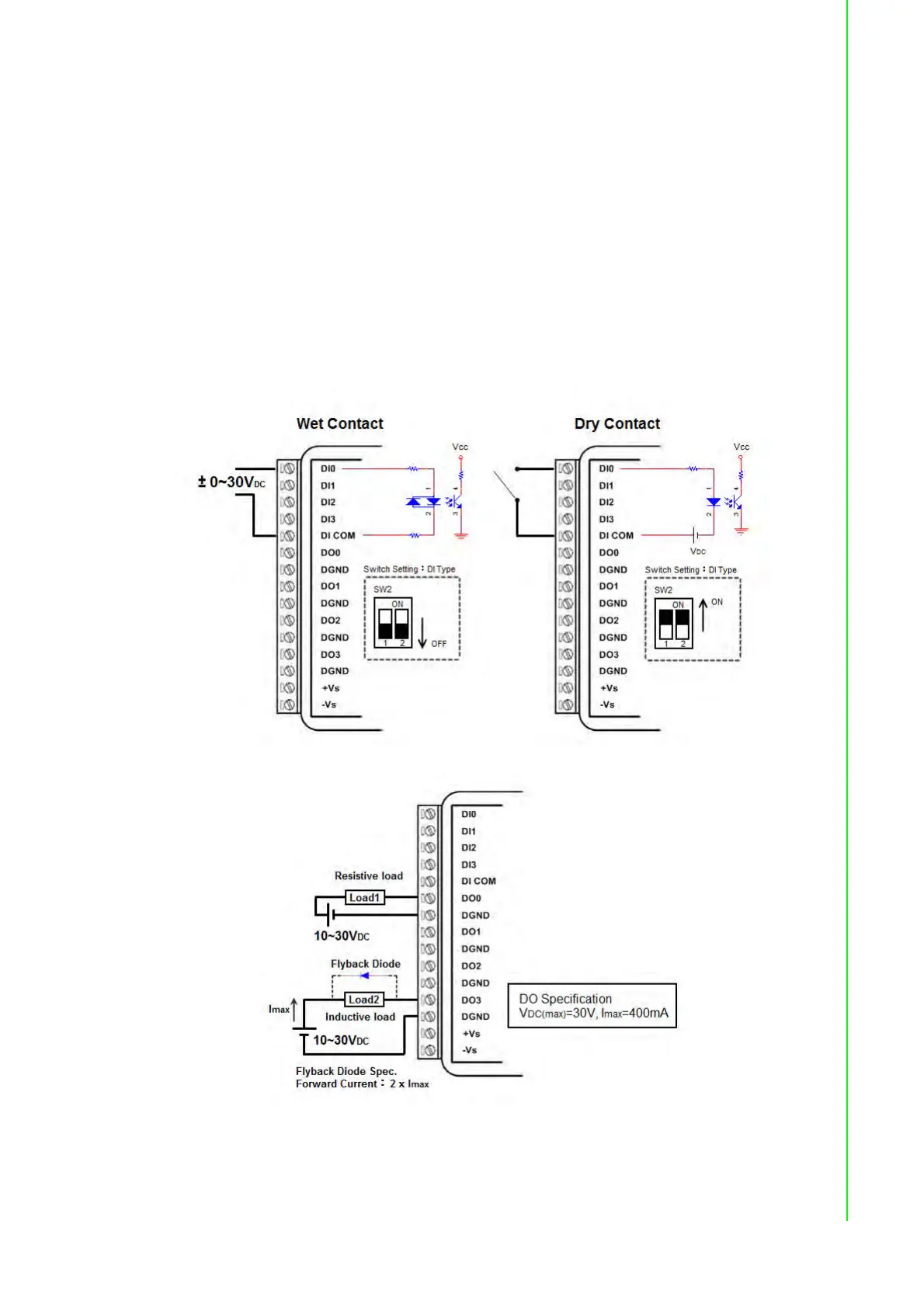

Figure 2.5 WISE-4050/LAN Digital Input Wiring Diagram
Figure 2.6 WISE-4050/LAN Digital Output Wiring Diagram
