WISE-4000 User Manual
30
2.8.2
Application Wiring

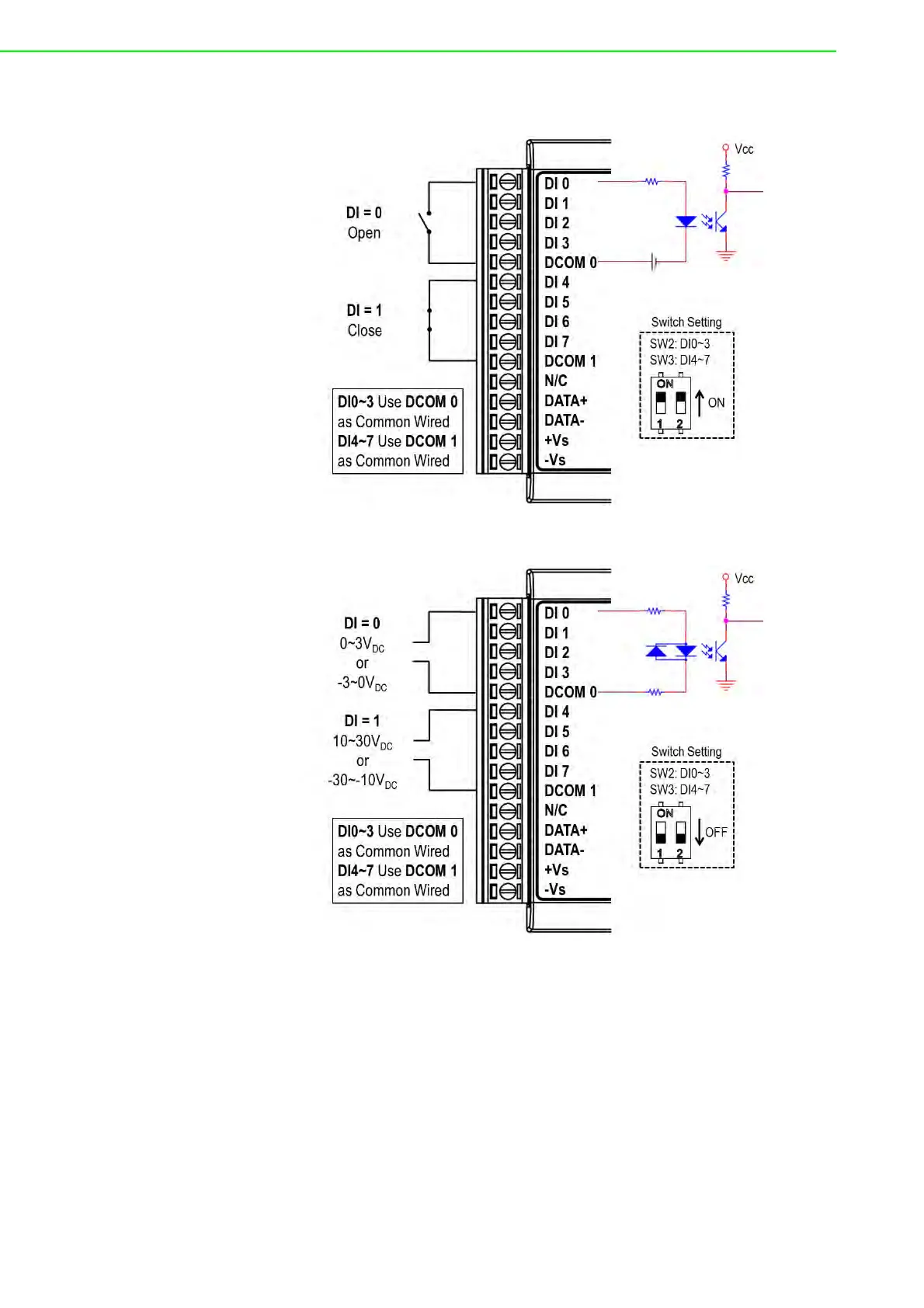

Figure 2.27 WISE-4051 Digit
al Input Dry Contact W
iring Diagram
Figure 2.28 WISE-4051 Digit
al Input W
et Cont
act Wiring Diagram
37
39
Table of Contents
default chapter
5
Table of Contents
5
Chapter 1 Product Overview
9
Introduction
10
Feature Highlights
10
Restful Web Service
10
Data Storage Function
11
Iot Cloud Function
11
Series Family and Specifications
12
Series Family
12
Mechanical Design and Dimensions
13
WISE-4000 Wireless Series Dimensions
13
WISE-4000/LAN Dimensions
13
Switch
14
LED Definition
14
Certification and Safety Standard
15
Package Information
16
Chapter 2 Product Specifications
17
General Specifications
18
Wise-4010/Lan
20
I/O Specification
20
Application Wiring
21
Pin Assignment
22
Block Diagram
22
Wise-4050/Lan
22
I/O Specification
22
Application Wiring
23
Pin Assignment
24
Block Diagram
24
Wise-4060/Lan
25
I/O Specification
25
Application Wiring
26
Pin Assignment
27
Block Diagram
27
Wise-4012E
28
I/O Specification
28
Application Wiring
30
Pin Assignment
31
Block Diagram
31
Wise-4012
32
I/O Specification
32
Application Wiring
33
Pin Assignment
34
Block Diagram
34
Wise-4050
35
I/O Specification
35
Application Wiring
36
Pin Assignment
36
Block Diagram
37
Wise-4051
37
I/O Specification
37
Application Wiring
38
Pin Assignment
39
Block Diagram
39
Wise-4060
40
I/O Specification
40
Application Wiring
41
Pin Assignment
41
Block Diagram
42
Hardware Installation
43
Interface Introduction
44
Mounting
44
DIN-Rail Mounting
44
Wall Mounting
46
Stack Mounting
48
Wiring & Connections
49
Power Supply Wiring (Not for WISE-4012E)
49
USB Power (WISE-4012E Only)
49
I/O Units
50
Chapter 4 System Configuration
51
Connection
52
Configure WISE Using the Web Interface
52
System Requirements
52
List of WISE-4000 Default Ethernet Ports
53
Factory Default Settings
53
Module Authorization
53
Operation Mode
53
Using a Browser to Configure the Module
54
Configuring the RS-485 Port of WISE-4051
69
Configuring Cloud Server (WISE-4000 Wireless Series Only)
87
Configure WISE-4000 with ADAM.NET Utility
90
Operation Framework
90
Configure WISE-4000
95
Site Survey Tool for WISE-4000 Wireless Series
98
Site Survey Architecture
98
Site Survey Mode
98
Site Survey Tool
99
Appendix A I/O Modbus Mapping Table
101
Modbus Function Code Introduction
102
WISE-4010/LAN Modbus Mapping Table
102
WISE-4050/LAN Modbus Mapping Table
106
WISE-4060/LAN Modbus Mapping Table
108
WISE-4012E Wireless Modbus Mapping Table
110
WISE-4012 Wireless Modbus Mapping Table
113
WISE-4050 Wireless Modbus Mapping Table
118
WISE-4051 Wireless Modbus Mapping Table
120
WISE-4060 Wireless Modbus Mapping Table
122
Appendix Brest for WISE-4000 Series
125
Introduction
126
REST Resources for WISE-4000 Series
127
Digital Input
127
Digital Output
132
Analog Input
137
RS-485 Port Expansion Data
143
Data Logger
151
