WISE-4000 User Manual
Chapter 2
Product
Specifications
2.6.2
Application Wiri
ng

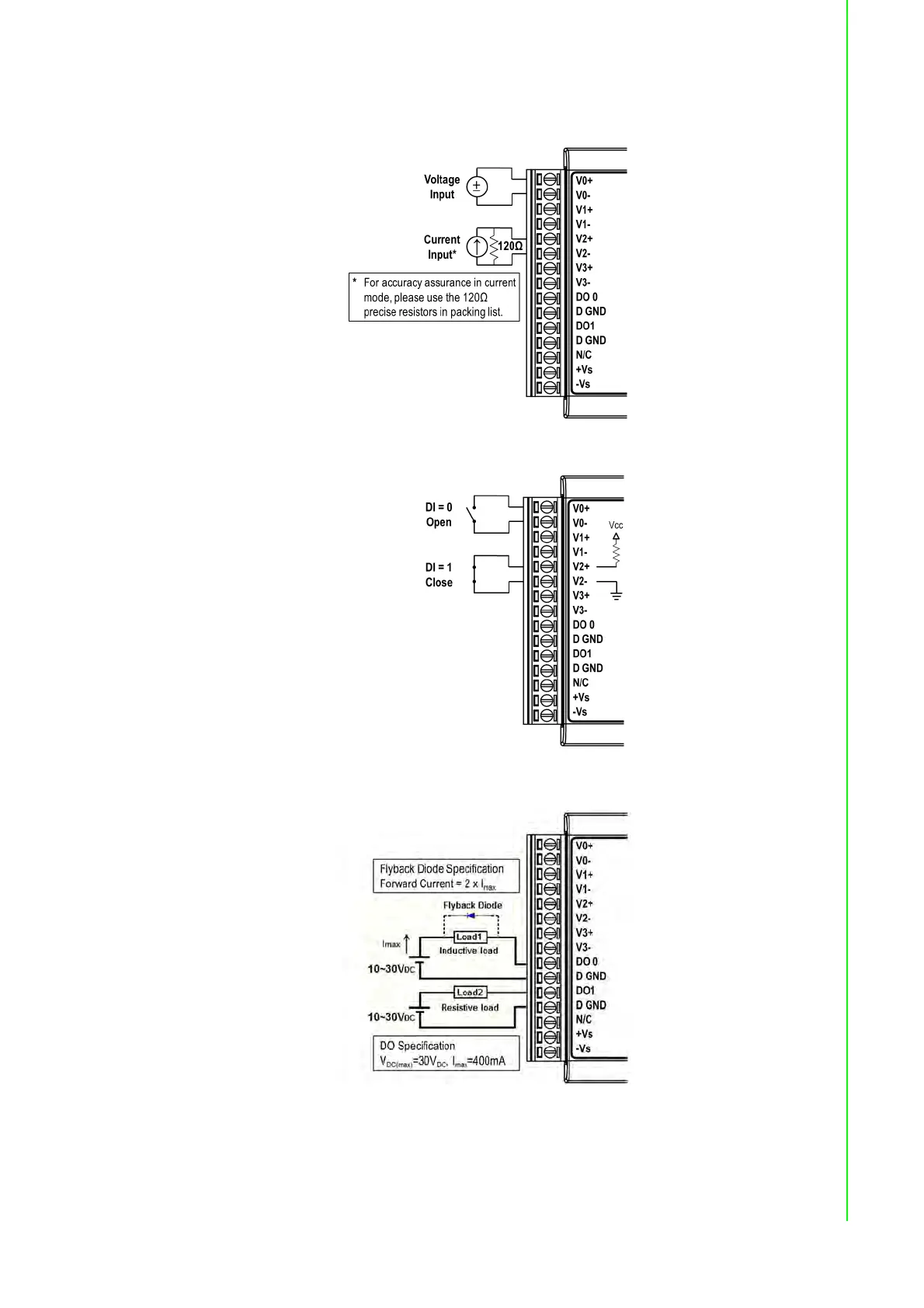

Figure 2.18 WISE-4012 Analog Inpu
t Wiring Diagram
Figure 2.19 WISE-4012 Digit
al Input Wiring Diagram
Figure 2.20 WISE-4012 Digit
al Output Wiring Diagram
32
34
