5 - Network Configuration
5.1 - Network Layout

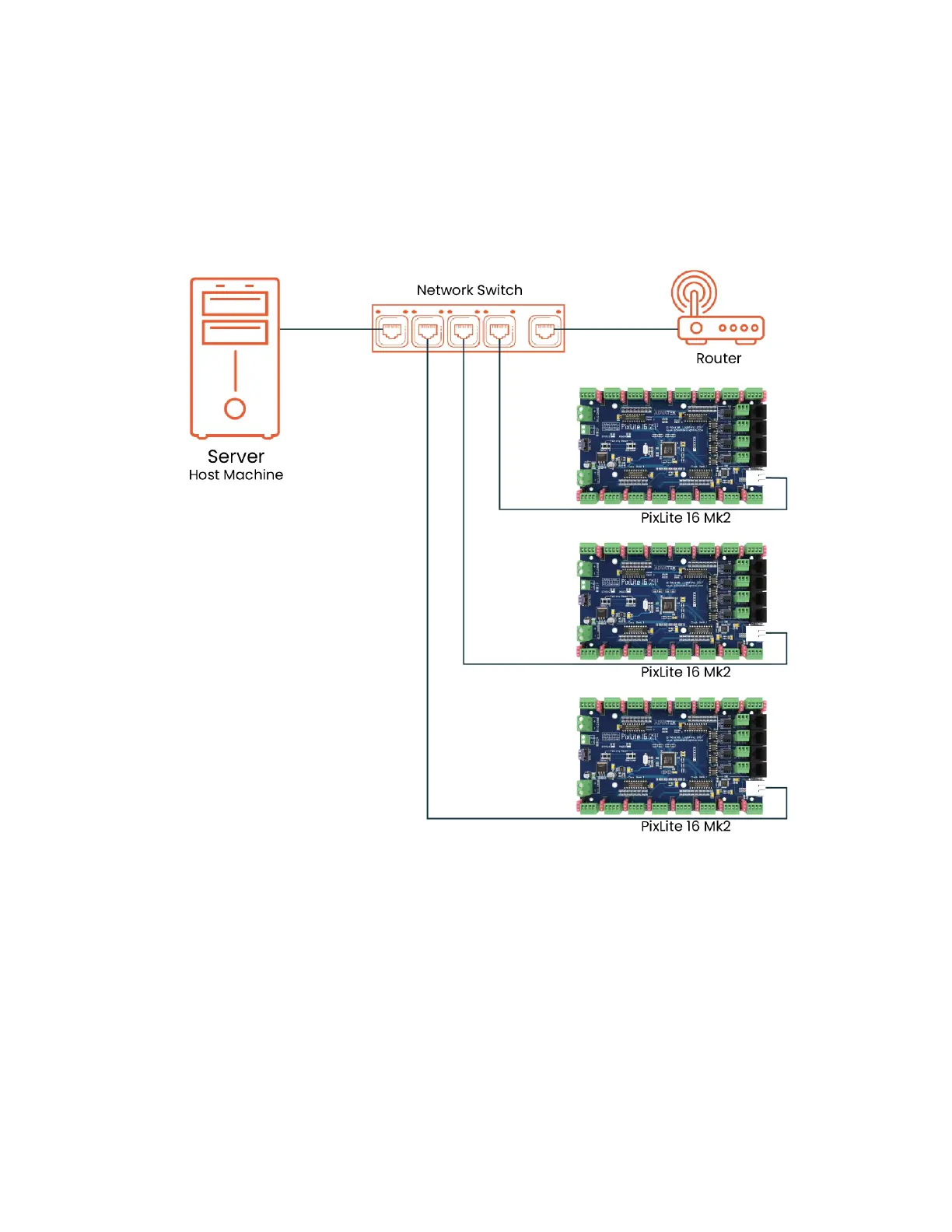

Figure 5: Network Layout using a Server and Switch
Figure 5 shows a typical network topology for the PixLite 16 Mk2 controller(s) LAN.
Installations using multicast sACN will benefit from the use of IGMP Snooping enabled
network equipment when there are more multicast universes on the network than any
one PixLite is using. If there are more than 96 universes of multicast sACN on the
network then IGMP Snooping is mandatory.
