AEG L7WC8632BI User Manual

WARNING!
• Do not remove the filter
while the appliance
operates.
• Do not clean the pump if
the water in the
appliance is hot. Wait
until the water cools
down

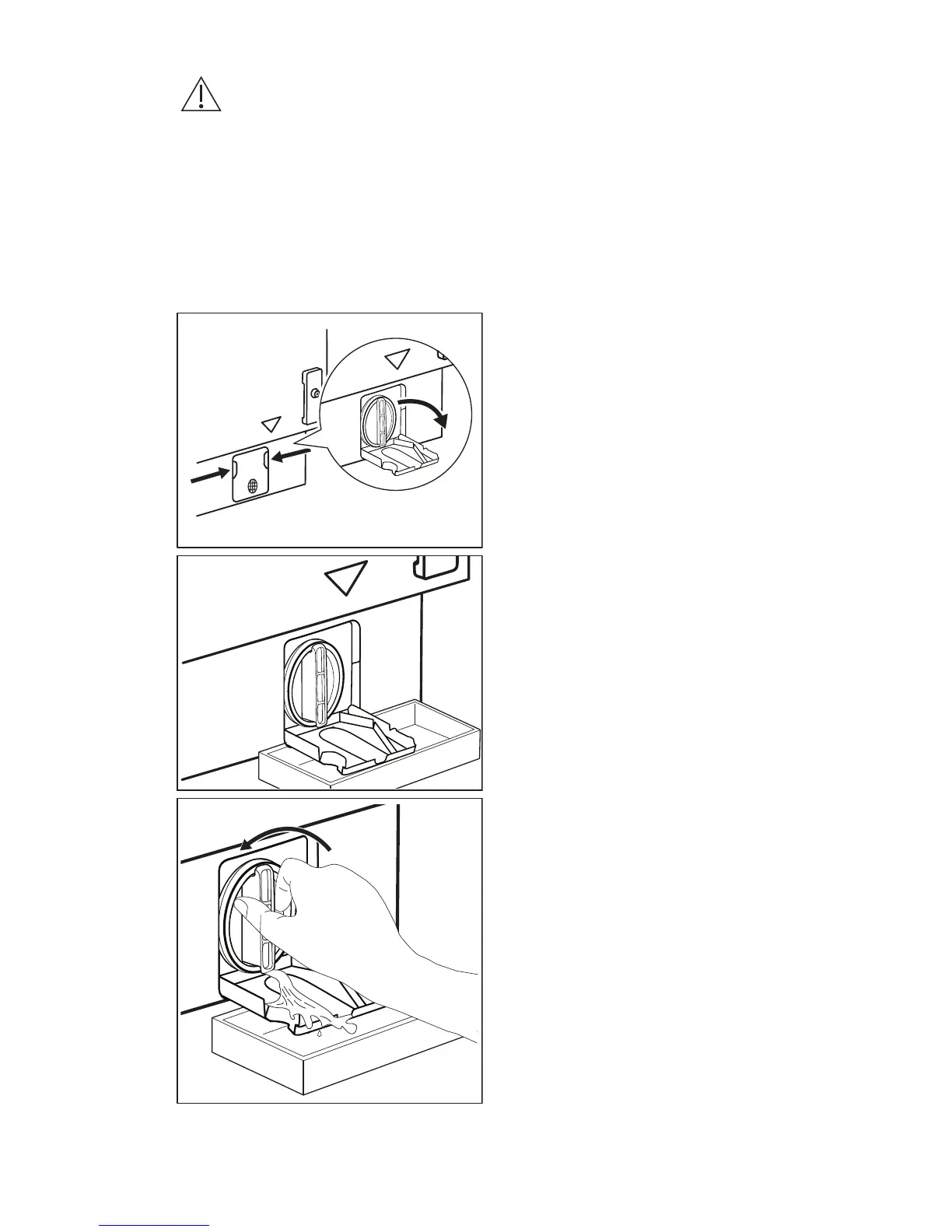

Proceed as follows to clean the pump:
1
2
1. Open the pump cover.
2. Place a suitable bowl below the drain pump
access to collect the water that flows out.
Always keep a rag nearby to dry up any water
spillages when removing the filter.
180˚
3. Turn the filter 180 degrees in anti-clockwise
direction to open it, without removing. Let the
water flow out.
4. When the bowl is full of water, turn the filter
back and empty the container.
5. Repeat the steps 4 and 5 until the water
stops to flow out.
ENGLISH 43

AEG L7WC8632BI Specifications

General

Door hinge	Left
Drum volume	52 L
Loading type	Front-load
Product color	White
Built-in display	Yes
Custom panel-ready	-
Appliance placement	Built-in
Annual water consumption washing	11200 L
Annual energy consumption washing	194 kWh
Annual water consumption washing & drying	23000 L
Annual energy consumption washing & drying	1060 kWh
Drying capacity	84 kg
Washing capacity	8 kg
Residual moisture	44 %
Maximum spin speed	1600 RPM
Noise level (spin)	70 dB
Noise level (wash)	46 dB
Noise level (drying)	52 dB
Inlet hose length	1.5 m
Outlet hose length	1.4 m
Connected load	2000 W
AC input voltage	230-240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Energy consumption washing per cycle	0.97 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	5.3 kWh

Weight and Dimensions

Depth	540 mm
Width	596 mm
Height	819 mm
