AEG L7WC8632BI User Manual

1
2

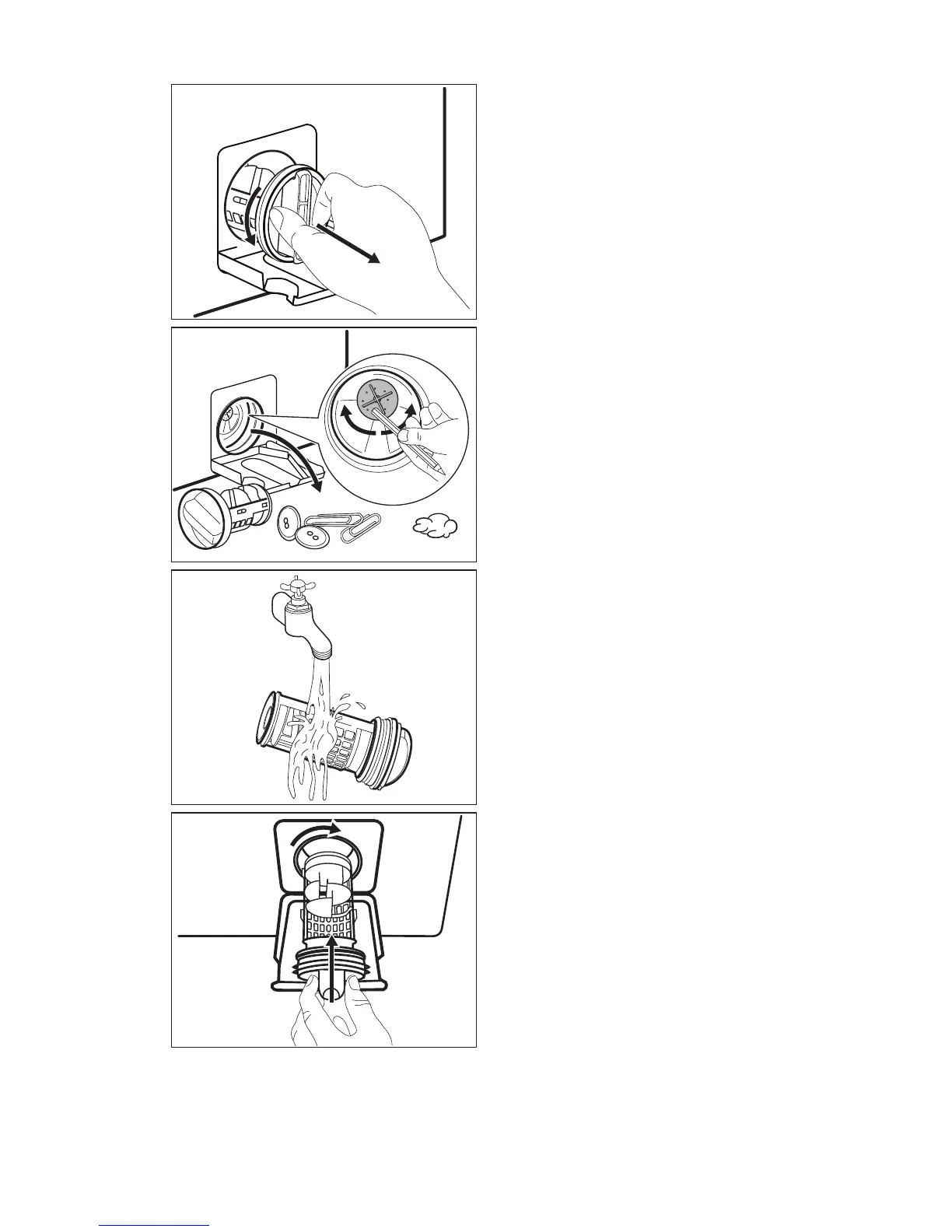

6. Turn the filter anti-clockwise to remove it
7. If it is necessary, remove fluff and objects
from the filter recess.
Make sure that the impeller of the pump can
rotate. If it does not rotate, contact the
Authorised Service Centre.
8. Clean the filter under the water tap.
2
1
9. Put the filter back into the special guides by
turning it clockwise. Make sure that you
tighten the filter correctly to prevent leakages.
www.aeg.com44

AEG L7WC8632BI Specifications

General

Door hinge	Left
Drum volume	52 L
Loading type	Front-load
Product color	White
Built-in display	Yes
Custom panel-ready	-
Appliance placement	Built-in
Annual water consumption washing	11200 L
Annual energy consumption washing	194 kWh
Annual water consumption washing & drying	23000 L
Annual energy consumption washing & drying	1060 kWh
Drying capacity	84 kg
Washing capacity	8 kg
Residual moisture	44 %
Maximum spin speed	1600 RPM
Noise level (spin)	70 dB
Noise level (wash)	46 dB
Noise level (drying)	52 dB
Inlet hose length	1.5 m
Outlet hose length	1.4 m
Connected load	2000 W
AC input voltage	230-240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Energy consumption washing per cycle	0.97 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	5.3 kWh

Weight and Dimensions

Depth	540 mm
Width	596 mm
Height	819 mm
