Install your Door / Window Sensor 7.
The sensor can be mounted either on the moving part or on the fixed part of a door or a window. Mounting can be accomplished either
using the tape by peeling off the protection foil or using two screws with the holes inside the battery compartment. If the tilt detection on
a window (only normal windows, no roof windows) shall be used the sensor device must be placed on the moving part of the window
and the magnet on the window frame. The sensor comes with two types of magnets:

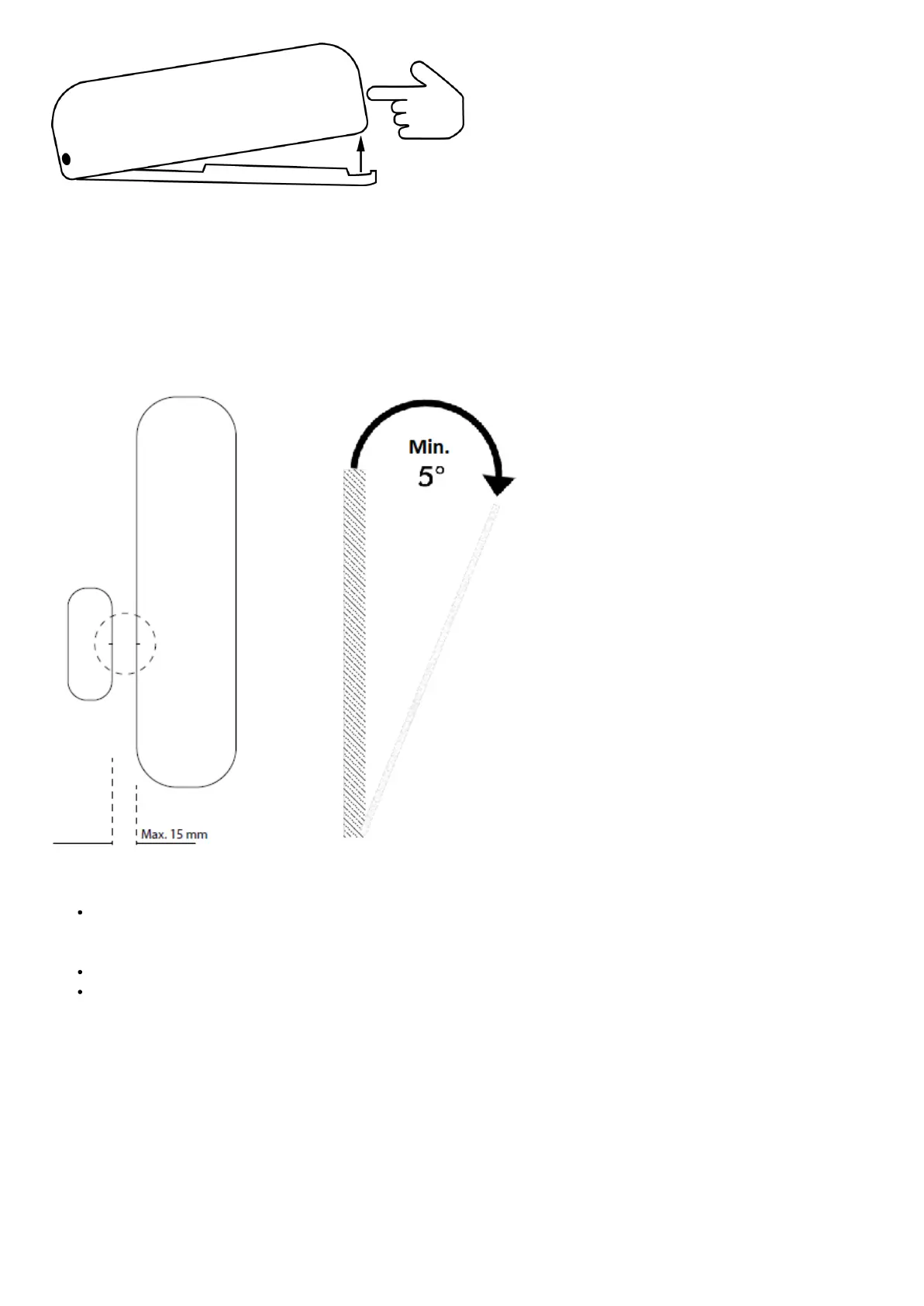

The standard magnet covered by plastic part, mountable beside the sensor. Make sure the two indicating lines on sensor
enclosure and magnet are opposite to each other. The image on the right-hand-side shows the position of magnet and sensor
body.
A slim "naked" magnet to be mounted behind the sensor in case the sensor body is placed on the side of a window.
To use the tilting function, the opening angle of the window must be at least 5° or greater.
For German style windows there the window sits on top of the window frame mounting on the side of the window is highly
recommended. If no tilting detection is used, the sensor can be placed on any position of the door or the window. In case tilting detection
is desired the sensor should be placed on the upper side of the window.
