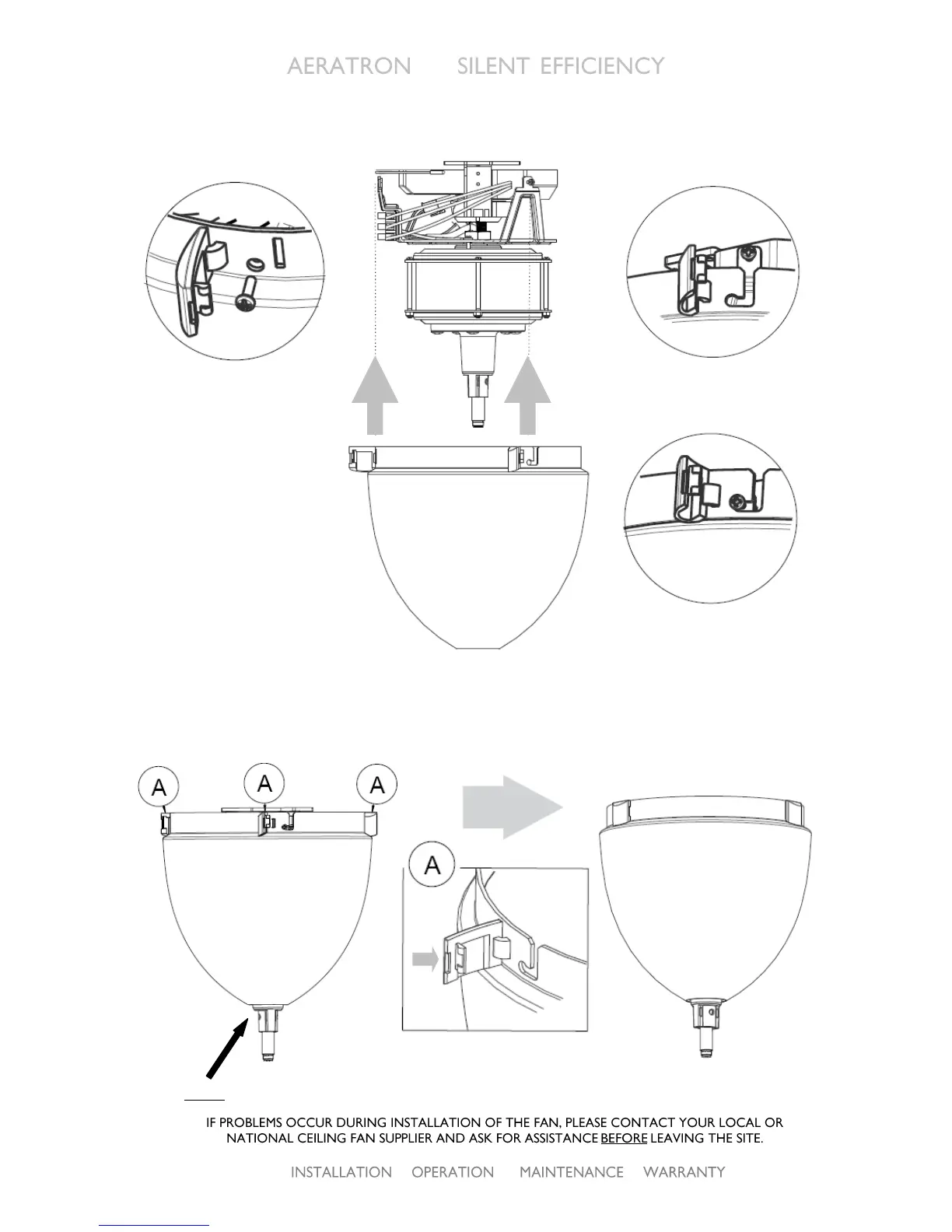

Attaching Fan Motor Housing to Motor Assembly
Line up fixing hole Install motor housing
in Motor Housing with using a clockwise
screw hole in chassis Bayonet action
and install screw
Tighten screws securely
Ensure that Fan Motor Housing fixing point with the hole (not bayonet slot) is aligned with
chassis arm from which fixing screw was removed (see page 7).
Closing Screw Cover
Close all three Screw Covers
NOTE: Please ensure that the drive shaft is centred with the motor housing opening!
