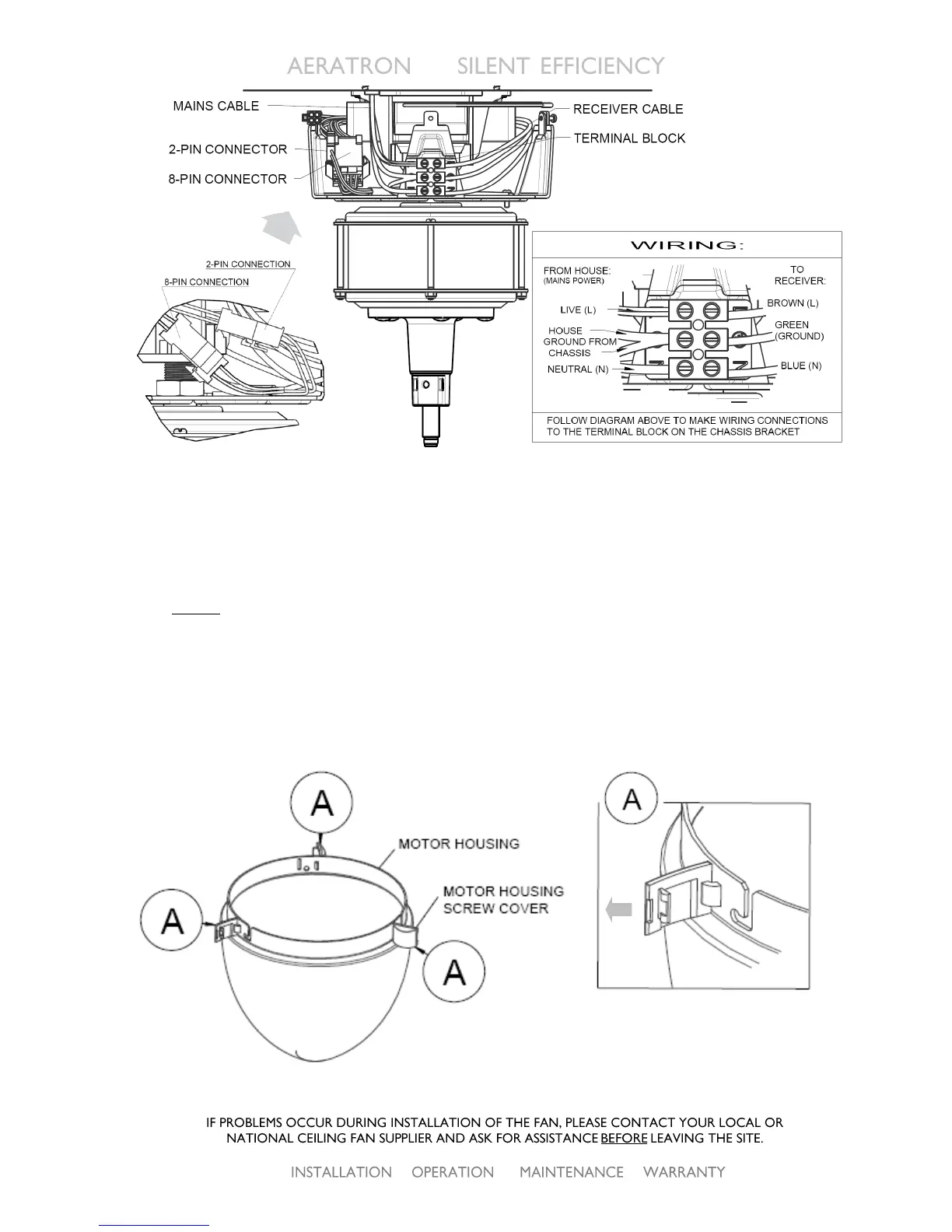

Connect LIVE, GROUND and NEUTRAL from Mains Power (House) to Terminal Block.
Connect LIVE, GROUND and NEUTRAL from Remote Control Receiver to Terminal Block.
Plug the 8-Pin connector from the DC Motor into the 8-Pin connector from the Receiver.
Plug the 2-Pin connector from the DC Motor into the 2-Pin connector from the Receiver.
(Connecting the 2-pin connector now, will allow an easy retrofit of the LED light kit at any time)
NOTE: ensure that the 8-pin connector is fully engaged!
If not connected correctly the motor may rotate “jagged” or not rotate at all.
!!TEST MOTOR NOW (refer to page 10) before mounting the motor housing!!
Preparing Fan Motor Housing
Ensure that Motor Housing Screw
Covers are in full open position
