Checking ceiling condition and preparing for fan installation
Before commencing installation, turn off electricity supply at the main power box.
Disconnect power by removing fuse or turning off circuit breaker.

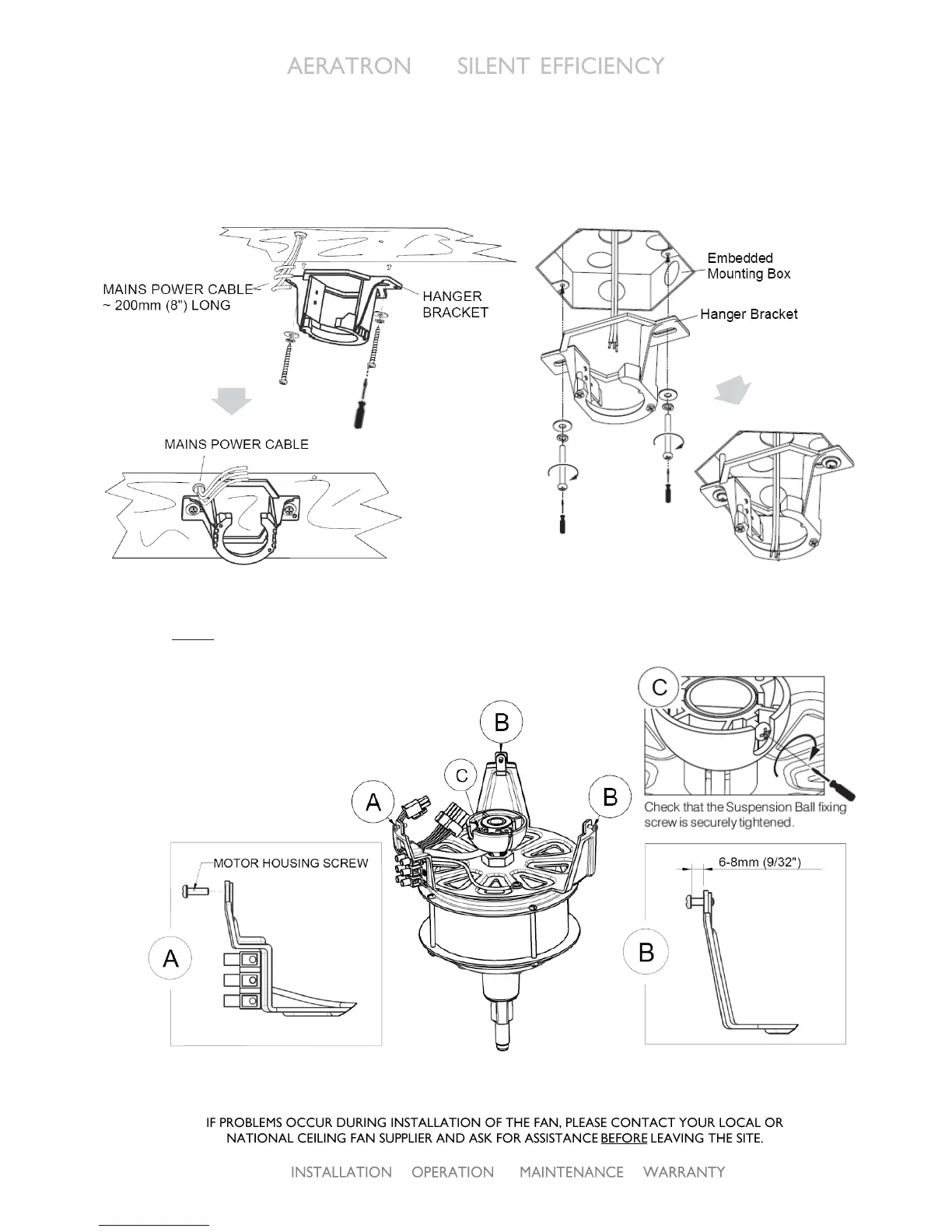

Installation mounted to Ceiling Joist or Embedded Mounting Box
Install mounting bracket to ceiling joist or Mounting Box embedded in concrete using the screws and
washer provided. The mounting plate should be able to hold a weight of at least 35kg (77lbs).
NOTE: Proper care must be taken when mounting to concrete ceilings. For safe mounting these
ceilings may require plastic plugs / anchors and stronger screws.
Preparing Fan Motor Assembly
Remove one Motor housing fixing Adjust remaining two Motor housing
Screw, and put it aside for re-assembly screws to provide clearance for
with Fan Motor Housing later installing the Motor Housing
