Fan Blades and Middle Piece Assembly
! CONSTANTLY HANDLE FAN WITH CARE AT ALL TIMES TO AVOID DAMAGING THE FAN/SURFACE !
AE3

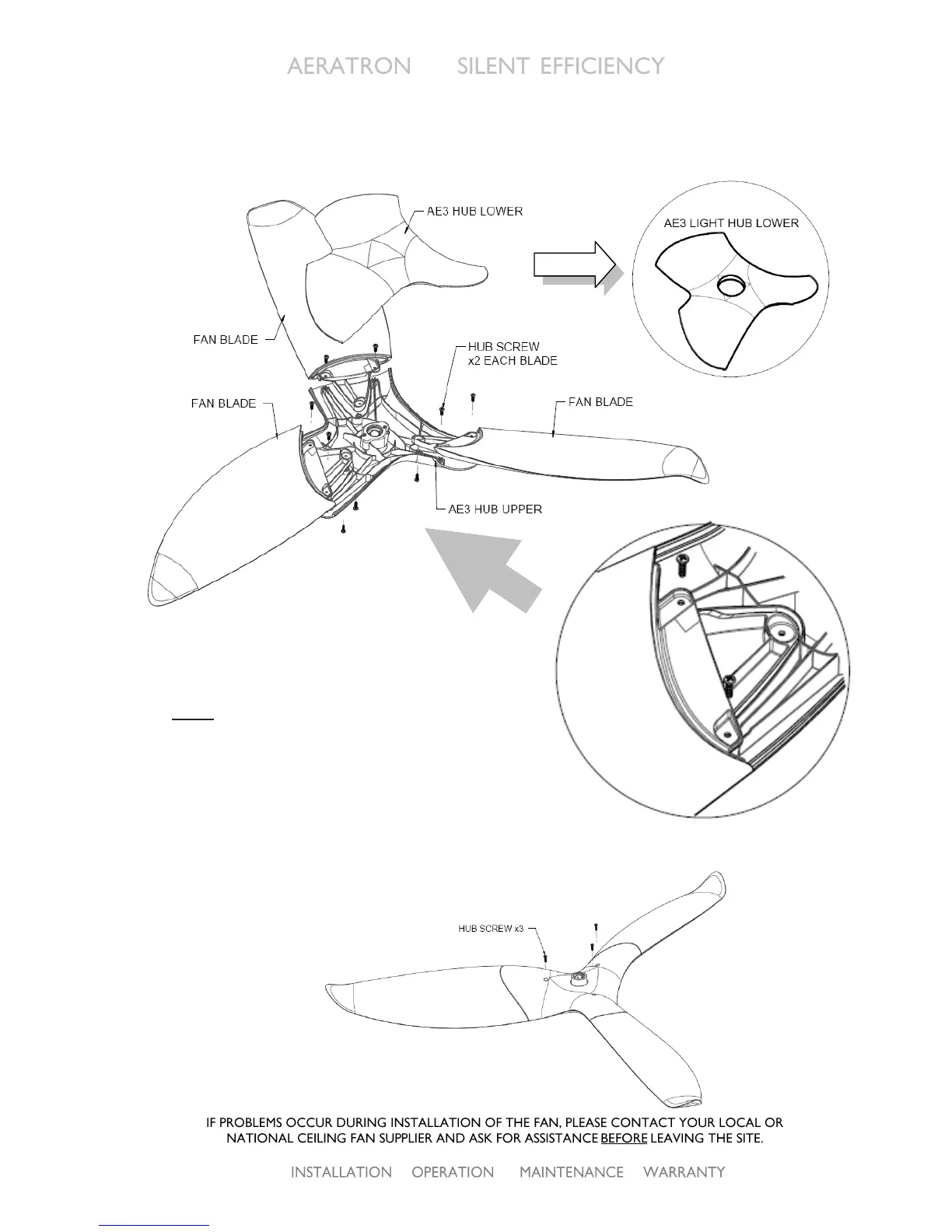

Place AE3 Hub Upper onto a clean working area.
Line-up the three mounting holes in the Fan Blade
with the two screw boss and hole in the Hub Upper.
NOTE: Please use a power tool on medium torque
setting to ensure tight and secure blade assembly.
Fix the Fan Blade tight and firm using 2 Hub screws
Fix second and third Fan Blades tight and firm using 2 Hub
screws for each Blade
With care, turn the fan over and fasten the AE3 Hub Lower
to the fan assembly using the 3 Hub screws
To Next Page
