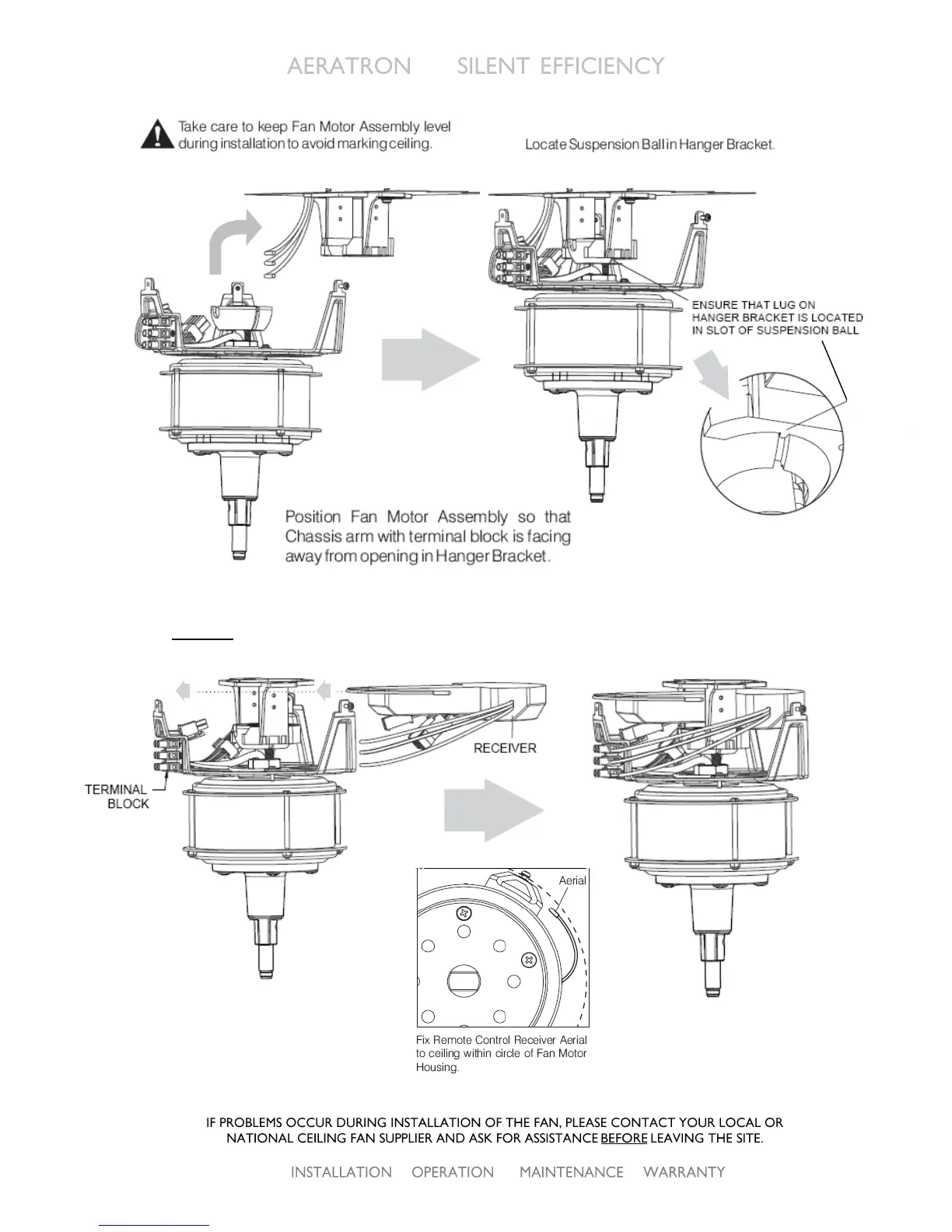

Installing Remote Control Receiver into hanger bracket
Note: Installing more than 1 Fan!
Power up each Receiver and code match before installation (see page 10)
Slide Remote Control Receiver After installing receiver, re-
into Hanger Bracket from the adjust Fan Motor assembly
opposite side of the Terminal block ensure the drive shaft is vertical
in the orientation as shown above
To Next Page
