Attaching the Fan Blades
44
STEP
Assembling the Fan Blades cont.
C D

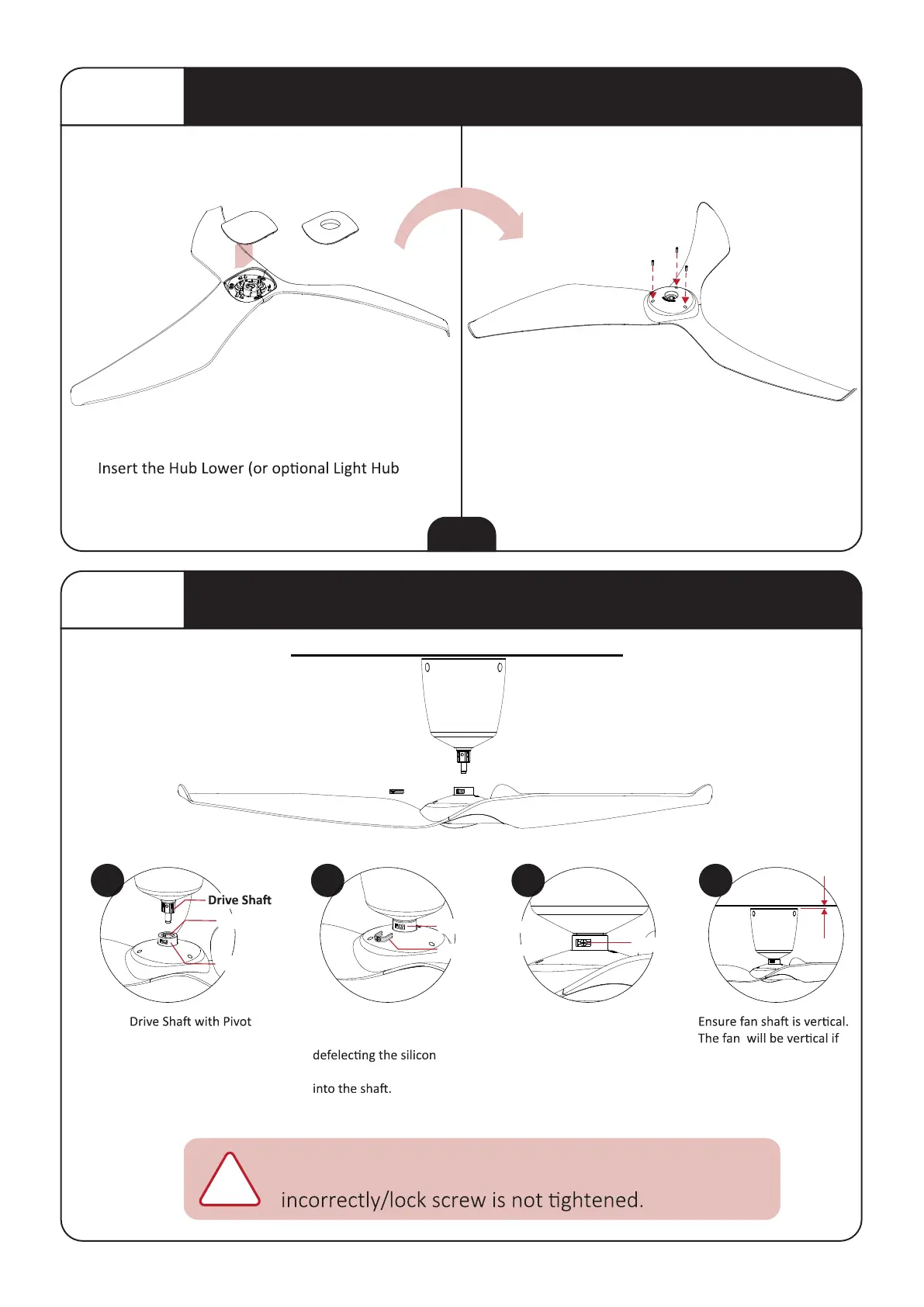

Fasten the the Hub Lower from the top side
using the 3 Hub Screws.
Lower) into the recess. With care, turn the fan
over.
No liability is accepted if the Silicone ring is
removed or the Pivot Lock is installed
!
the clearance ‘X’ between
the ceiling and motor
housing is equal all way
round.
Align
Connector and slide fan
blades onto Drive Sha.
D
Hold/push up Fan Blades
and insert Pivot Lock,
sideways. Push Pivot Lock
Tighten Lock Screw
securely using screw driver.
Do not use power tools.
x
A
Pivot Connector
Silicone Ring
B
Pivot Lock
Silicone Ring
Light Hub Lower
(OPTIONAL)
STEP 9
8
To Next Page
