11. DESUPERHEATER
The heating capacity that can be
obtained from the desuperheater is
obtained by multiplying the nominal value
(Pd) shown in table 11.1.1 by a suitable
coefficient (Cd).
The diagrams will give you the correction
coefficients to be used for the chillers in
the various versions; next to each curve
you can see the outside air temperature
to which it refers.
11.1. PRESSURE DROPS
The NS models with the desuperheater
can have, depending on the sizes, up
to three
desuperheater (arranged paral-
lel to each other
NOTE
THE INSTALLER IS RESPONSIBLE FOR THE
HYDRAULIC PARALLEL.
NOTE:
the characteristics of the desuperheat-
ers and the pressure drop curves are
shown below.
For processed water temperatures dif-
ferent from 50°C, the result obtained is
multiplied by the correction factor that
can be obtained from Table 11.1.1.
The nominal value refers to:
air temperature ................................ 35°C
water at the desuperheater ............ 45°C
∆t ............................................................ 5°C
Water flow rate l/h
Water flow rate l/h
Water flow rate l/h
Pressure drops (kPa)Pressure drops (kPa)Pressure drops (kPa)
Processed water temperature at the desuperheater (∆t 5°C)
Cd correction coefficient
Outside air temperature °C

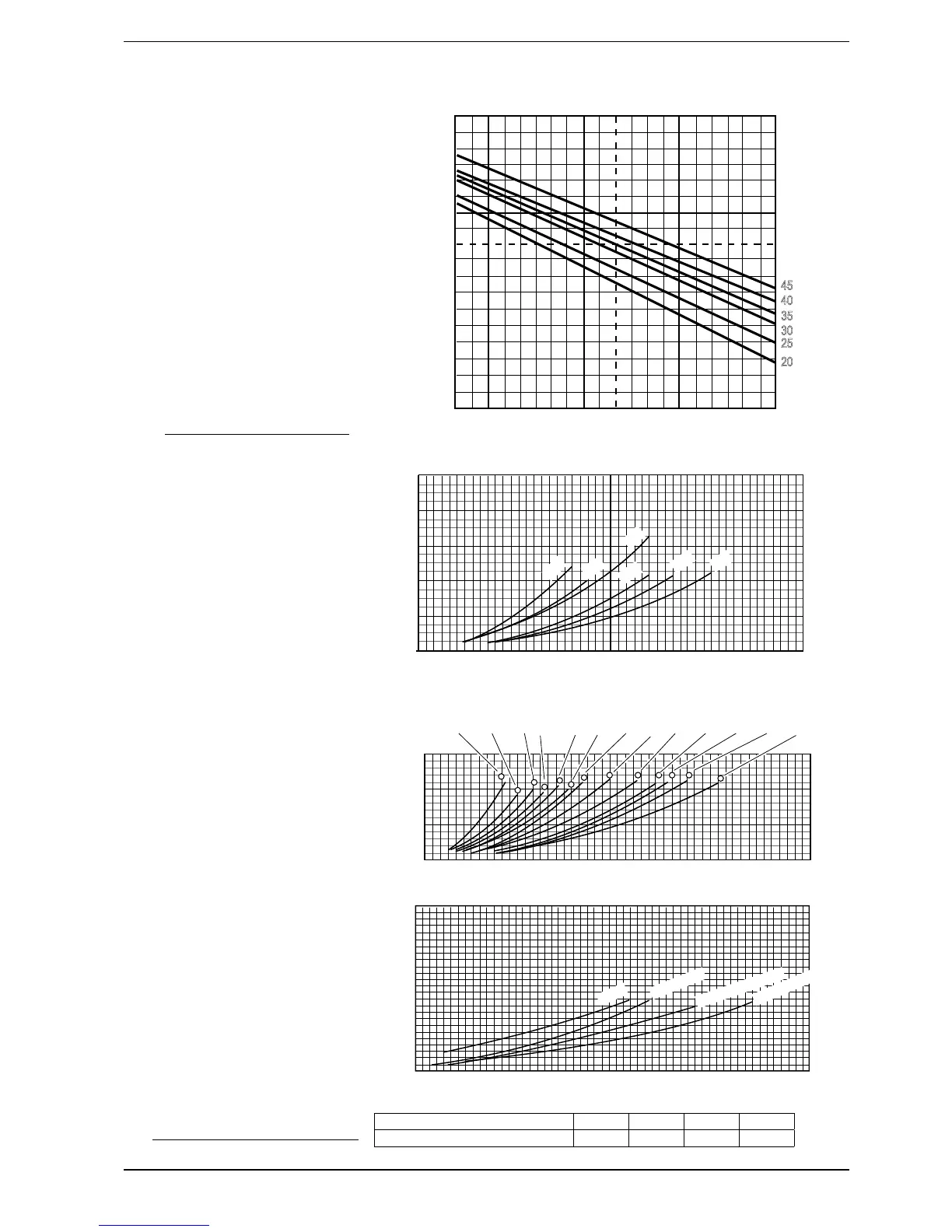

DESUPERHEATER CORRECTION COEFFICIENTS
11.1.1. Corrective factors for water tem-
peratures different than the nominal
water temperature
Average water temperature °C 30 40 45 50
Multiplication coefficient 1.03 1.01 1 0.99
40
0,80
0,70
0,60
0,50
0,90
1,00
1,10
1,20
1,30
1,40
41 42 43 44 45 46 47 48 49 50
40
35
30
25
20
45
0
0
5
10
15
20
25
5000 10000 15000 20000
25000 30000 35000 40000 45000 50000
1251
1401
1601
1801
2101
2401
0
0
10
5
15
10000 20000 30000 40000
50000 60000 70000 80000 90000 100000
1402
1602
1802 2002 2202 2352
2502
2652 3002 3202 3402 3602 3902 4502
4802
42022802
0
5
10
15
20
25
20000
30000 40000 50000 60000 70000 80000 90000 100000 110000 120000 130000
5002
5402-5202
5702-6003-6303
6603-6903-7203
