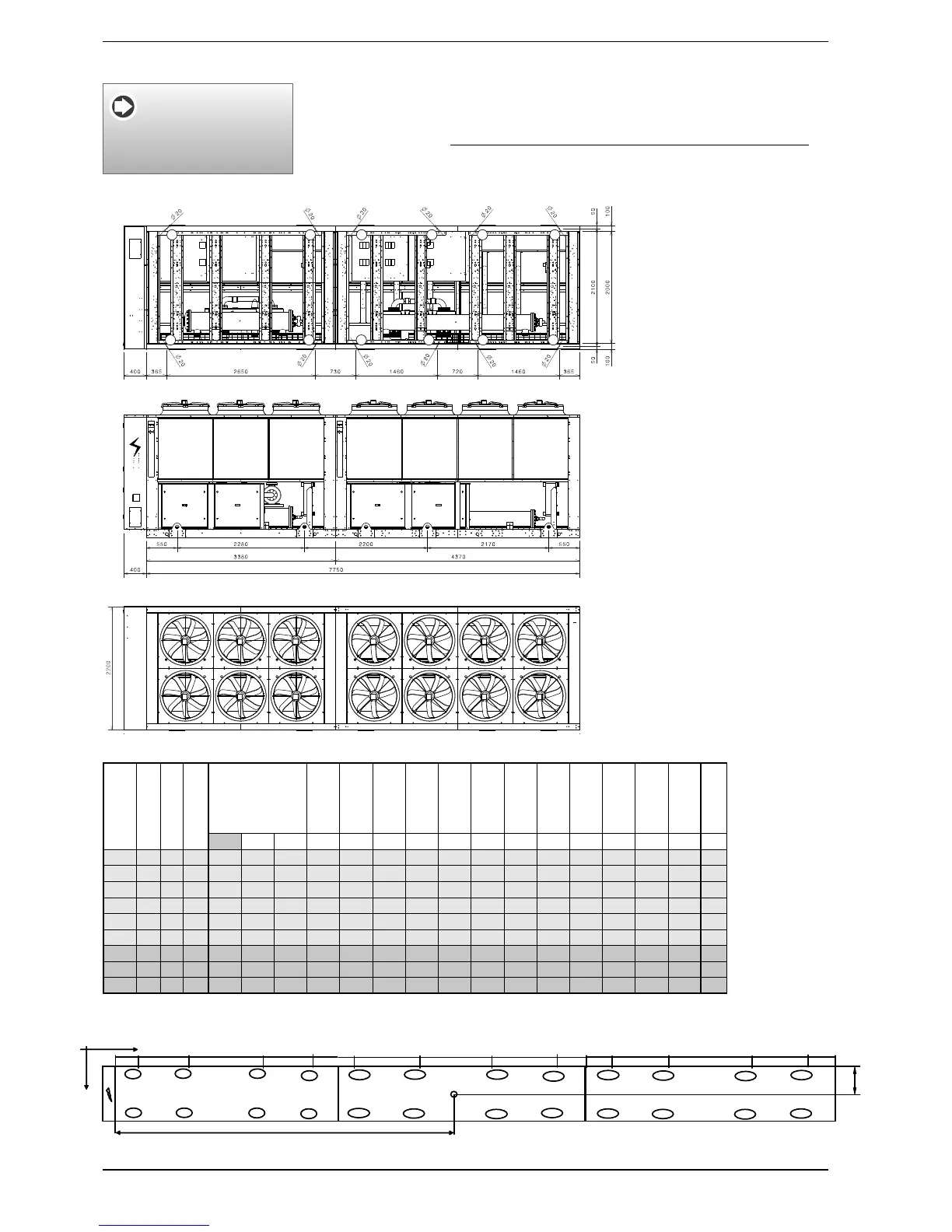

19.7. CARPENTRY BY 8150 (mm)
NS 3902 - 4202
°°(°/L°°00…PA…PK)
NS 3402 °°(A/E°°00…PA…PK)
WARNING:
ALWAYS USE ALL THE
PROVIDED EYEBOLTS
FOR THE LIFTING OF
THE UNIT
1 7
8
9
10
12
11
2
3
4
5
6
POSITION
OF VIBRATION DAMPERS
STRUT POSITION FOR LIFTING
NS
Heat recovery
Version
Hydronic kit
(1)
Weight and centre
of gravity
when empty
(kg)
Support 1 Support 2 Support 3 Support 4 Support 5 Support 6 Support 7 Support 8 Support 9
Support 10 Support 11 Support 12
Kit AVX
kgx y%%%%%%%%%%%%
3902 ° °/L 00 7830
3497 1250 10 13 15 19 / / 14 19 / / 5 6 508
4202 ° °/L 00 8180 3576 1236 10 12 14 18 / / 15 20 / / 5 6 508
3902 D °/L 00 7930 3497 1250 10 13 15 19 / / 14 19 / / 4 6 508
4202 D °/L 00 8270 3576 1236 10 12 14 18 / / 15 20 / / 5 6 508
3902 T °/L 00 8540 3520 1239 9.7 12.5 15.7 20.3 / / 14.6 17.5 / / 4.2 5.5 508
4202 T °/L 00 8570 3519 1238 9.7 12.5 15.7 20.3 / / 14.6 17.5 / / 4.2 5.5 508
3402 ° A/E 00 7540 3651 1217 9 11 14 17 2 2 19 15 / / 5 6 513
3402 D A/E 00 7610 3651 1217 9 11 14 17 2 2 19 15 / / 5 6 513
3402 T A/E 00 8410 3693 1202 9 10.8 14.8 17.9 / / 16.8 20 / / 4.9 5.8 508
(1) the weight
of the pumps
to be added
to the ver-
sion without
hydronic kit
− PA 69 kg
− PB 138 kg
− PC 75 kg
− PD 150 kg
− PE 91 kg
− PF 182 kg
− PG 100 kg
− PH 200 kg
− PJ 108 kg
− PK 216 kg
Lato evaporatori
Lato compressori
Lato evaporatori
Lato compressori
Lato evaporatori
Lato compressori
0
x
y
YG
XG
1
2
3
5
7
4
6
8
9
11
13
15
10
12
14
16
17
19
21
23
18
20
22
24
