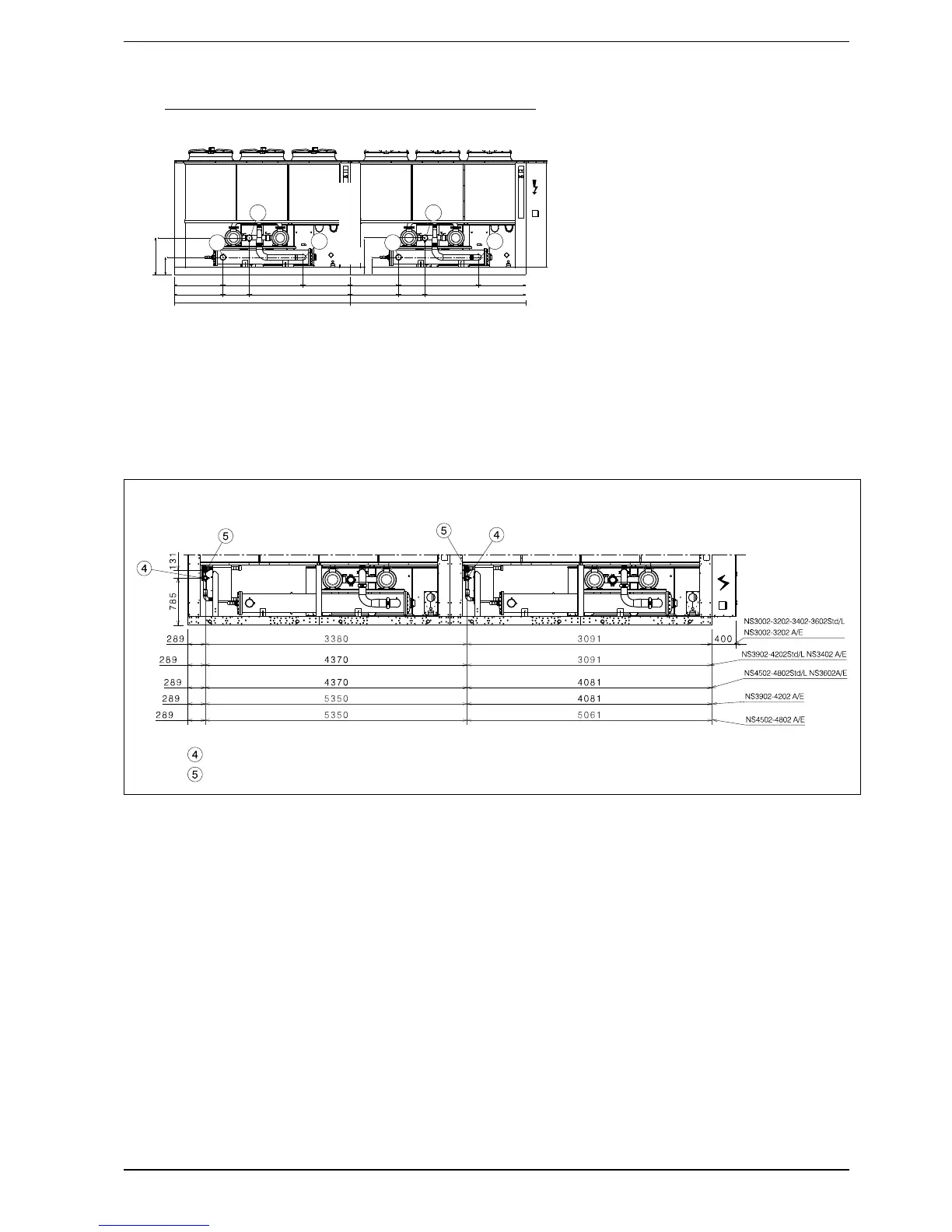

19.6.1. POSITION WATER CONNECTIONS
NS 3402 -3602 °°(°/L°°00…PA…PK)
KEY
1. OUT Evaporator 4"
2. IN Evaporator 4"
3. IN Pumps 4"
All connections are VICTAULIC supplied
together with joints to weld
710
337
934
934 506 1940
1536
910
3380
2
3
1
934
934 506 1940
1536
910
3380
2
3
1
710 pump G/H/J/K 730 pump A/B/C/D/E/F 710 pump G/H/J/K 730 pump A/B/C/D/E/F
710
337
FOR EVAPORATOR connections version «00»
FOR PUMP connections ver «PA...PK»
IN Desuperheater Ø 2”
OUT Desuperheater Ø 2”
HYDRAULIC CONNECTIONS
IN DESUPERHEATER Ø 2"
OUT DESUPERHEATER Ø 2"
HYDRAULIC CONNECTION
POSITION AND HYDRAULIC CONNECTION
DESUPERHEATER BIMODULE
