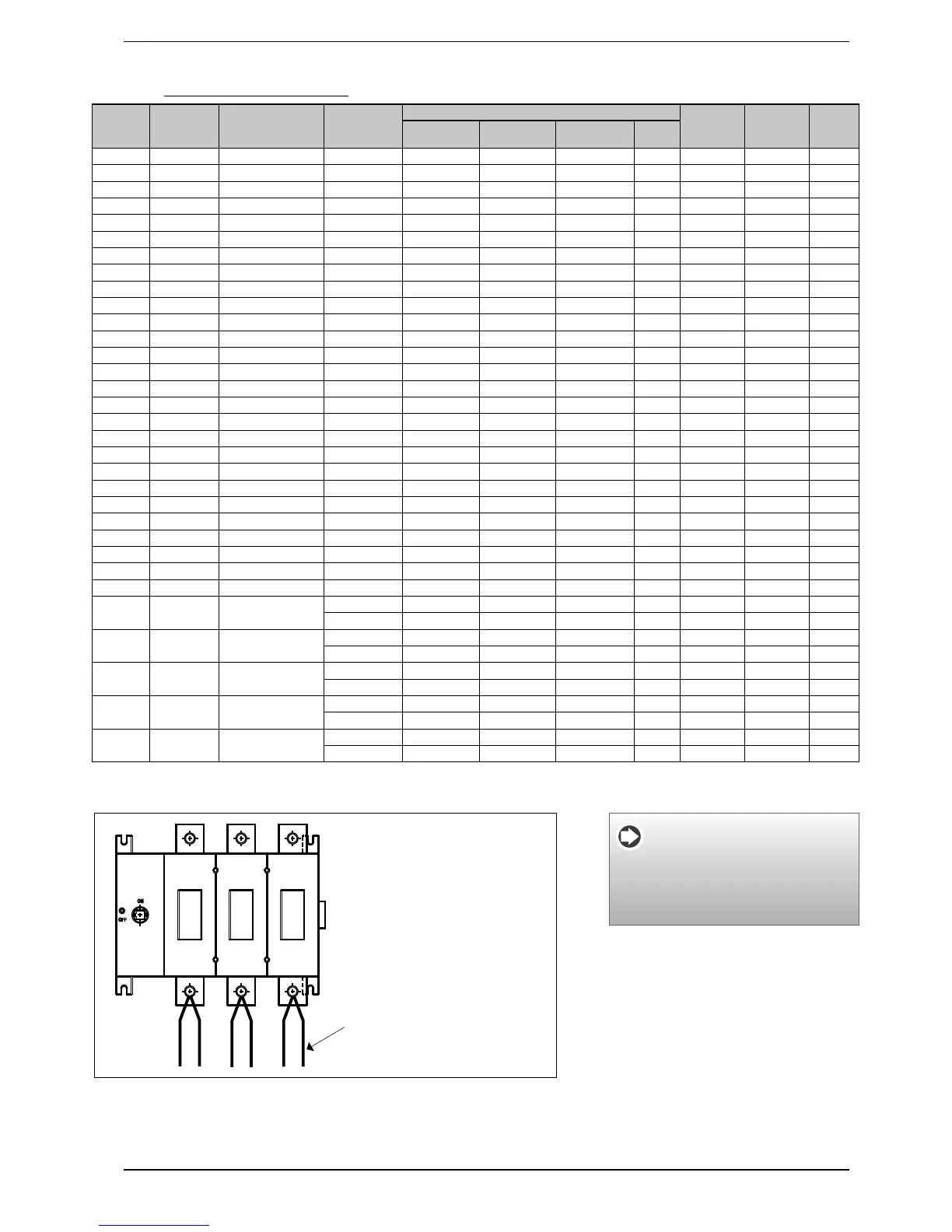

21.6. ELECTRIC DATA VERSIONS «A/E»
Example of electrical connection
NS 2101 A/E
no. 3 phase
no. 2 cables for phase
150 mm
2
sez. single cable
n° 6 total cables
no. cables for phase
FASE FASE FASE
NS VERSION
no.
power required
Formed by:
SECT. A
SEC. B
mm
2
Earth mm
2
IL A
no. cable
for phase
sect. single
cable
mm
2
total
no. cables
no.
phase
1251 A/E 1 1 150 3 3 1.5 70 250
1401 A/E 1 1 185 3 3 1.5 95 315
1601 A/E 1 1 240 3 3 1.5 120 315
1801 A/E 1 1 240 3 3 1.5 120 400
2101 A/E 1 2 150 6 3 1.5 150 630
2401 A/E 1 2 185 6 3 1.5 185 630
1402 A/E 1 1 185 3 3 1.5 95 315
1602 A/E 1 1 240 3 3 1.5 120 315
1802 A/E 1 1 240 3 3 1.5 120 400
2002 A/E 1 2 150 6 3 1.5 150 400
2202 A/E 1 2 150 6 3 1.5 150 400
2352 A/E 1 2 185 6 3 1.5 185 630
2502 A/E 1 2 185 6 3 1.5 185 630
2652 A/E 1 2 185 6 3 1.5 185 630
2802 A/E 1 2 240 6 3 1.5 240 630
3002 A/E 1 3 150 9 3 1.5 2x120 630
3202 A/E 1 3 185 9 3 1.5 2x150 630
3402 A/E 1 3 185 9 3 1.5 2x150 800
3602 A/E 1 3 240 9 3 1.5 2x185 800
3902 A/E 1 3 240 9 3 1.5 2x185 800
4202 A/E 1 4 185 12 3 1.5 2x185 800
4502 A/E 1 4 240 12 3 1.5 2x240 1000
4802 A/E 1 4 240 12 3 1.5 2x300 1000
5002 A/E 1 4 240 12 3 1.5 2x240 1000
5202 A/E 1 5 240 15 3 1.5 3x240 1205
5402 A/E 1 6 240 18 3 1.5 3x240 1250
5702 A/E 1 7 240 21 3 1.5 4x240 1600
6003 A/E 2
3602 3 240 9 3 1.5 2x185 800
2401 2 185 6 3 1.5 185 630
6303 A/E 2
3902 3 240 9 3 1.5 2x185 800
2401 2 185 6 3 1.5 185 630
6603 A/E 2
4202 4 185 12 3 1.5 3x185 800
2401 2 185 6 3 1.5 185 630
6903 A/E 2
4502 4 240 12 3 1.5 240 1000
2401 2 185 6 3 1.5 185 630
7203 A/E 2
4802 4 240 12 3 1.5 2x240 1000
2401 2 185 6 3 1.5 185 630
