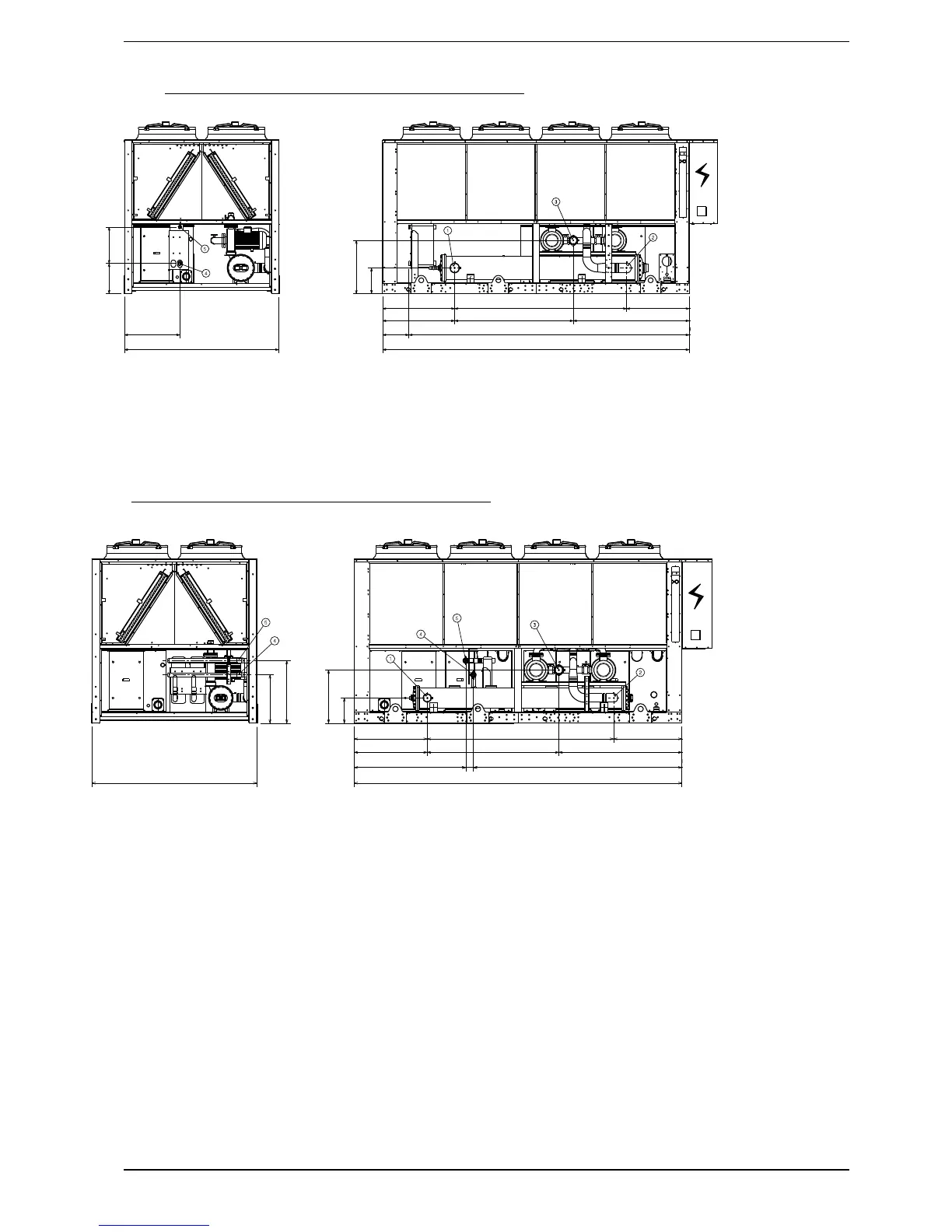

19.2.3. WATER CONNECTIONS
NS 2401 °°(°/L°°00…PA…PK)
790
430
758
366
519
2200
374
4370
3996
16911027
1027 2450 893
1652
Evaporator water connections version «PA…PK»
Desuperheater connections Ø 2"
Evaporator water connections version «00»
KEY
1. OUT Evaporator 5"
2. IN Evaporator 5"
3. IN Pumps 5"
4. IN Desuperheater 2"
5. OUT Desuperheater 2"
All connections are VICTAULIC supplied
together with joints to weld
758 pump G/H/J/K 778 pump A/B/C/D/E/F
KEY
1. OUT Evaporator 4"
2. IN Evaporator 4"
3. IN Pumps 4"
4. IN Desuperheater 2"
5. OUT Desuperheater 2"
All connections are VICTAULIC supplied
together with joints to weld
710
337
974
974
1488 2780
645
835
2200
1756 1640
910
2486
102
19.2.4. WATER CONNECTIONS
NS 2202 - 2352 - 2502 °°(°/L°°00…PA…PK)
Evaporator water connections version «PA…PK»
Desuperheater connections Ø 2"
Evaporator water connections version «00»
710 pump G/H/J/K 730 pump A/B/C/D/E/F
