Hydraulic connections position
34.1 in
2.4 x 0.4 in
Anti-vibration mounts position

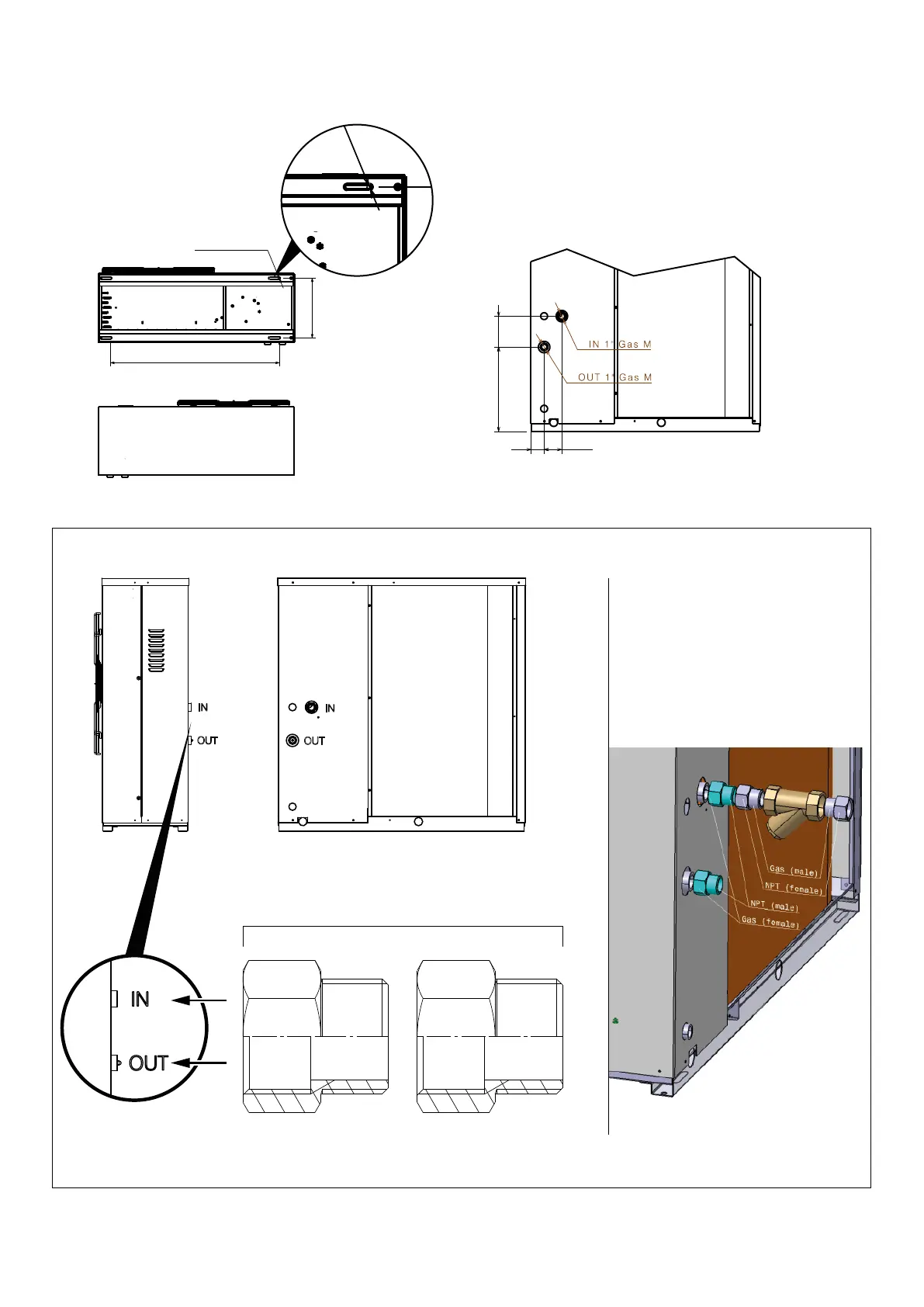

DIMENSIONS - ANTI-VIBRATION MOUNTS AND HYDRAULIC CONNECTIONS POSITION
ANKI 020-025-040-045
12.1 in
5.3 in14.5 in
2.2 in 3.0 in
ANKI 020-025-040-045
Posizione Antivibranti Attacchi Idraulici
A
A
B
B
C
C
Gas-NPT adapter
kit consisting of 2 pieces (2 for “IN” and 2 for “OUT”)
supplied
Screw the two pieces together before connecting them to the exchanger connections
On the unit there are 4 adaptors.
Two are GAS female and NPT male
and have to be connect directly on
unit and two are NPT female and
GAS male and have to be connect
on the ler as the image below.
