2. SELECTION AND POSITION OF INSTALLATION
Before proceeding with the installaon of the equip-
mentagreethelocaonwiththeclient,takingintoac-
count the following points:
1. The base must be able to support the weight of the
unit.
2. The safe distances between the unit and other
equipment or structures must be strictly respected
to ensure the intake and outlet air is free to circu-
late.
3. The equipment must be installed by a competent
and qualied technician, in compliance with the
applicable naonal legislaon of the country of
desnaon, respecng the required minimum
maintenance access spaces.
2.2.1. POSITIONING
Before lifting the unit verify the lifting capability of
the equipment being used, taking into account the
information provided with the packaging.
Tomoveunits(ANL020-090)overhorizontalplanes
use forklifts or similar in the most appropriate manner
taking into account the weight distribution of the unit.
When lifting (ANL 102-202) insert through the unit's
base holes lifting bars (NOT PROVIDED) of sufficient
length to locate the lifting chains and safety lugs.
Position the unit in the place indicated by the client,
inserting between the unit's base and the base support
a rubber pad (minimum 10 mm thick) or feet anti-
vibration mounts (ACCESSORY). For further information
refer to the dimensional tables.
Secure the unit and ensure it is level; check that suf-
ficient access is provided for hydraulic and electrical
connections.
In the case of installation where gusts of wind may oc-
cur adequately secure the unit using appropriate ties.
Ensure the installation of the condensate drain tray on
units that require it (as ACCESSORY).

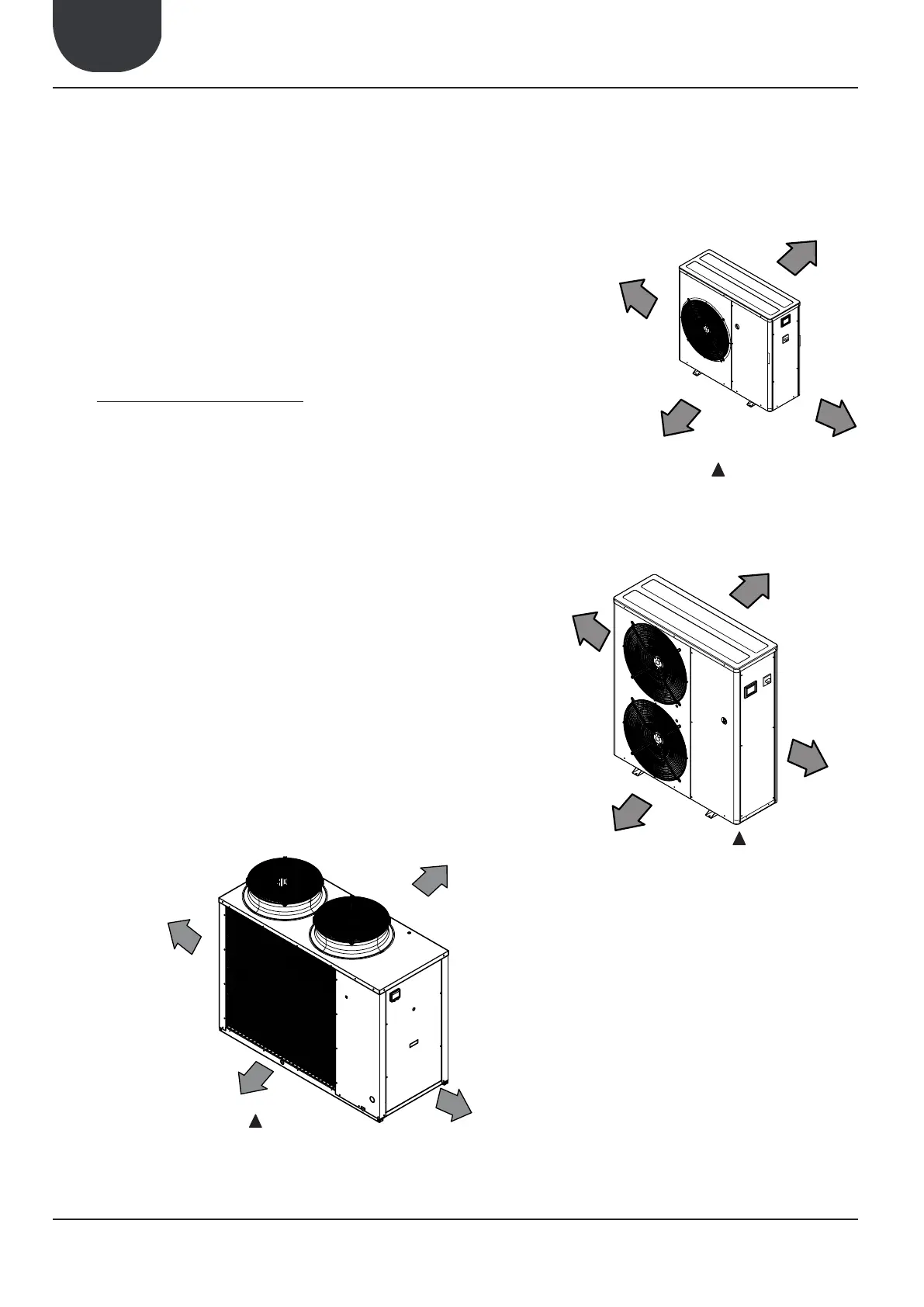

200
150
500
200
500
300
1100
800
800
800
