Info Press this button to access the Information page
Cancel Press this button to cancel the group or scheduling
Down Press this button to decrease the value or select the next option
Right Press this button to access the next page
Go to the
previous page
On the indoor unit classification page, press this button to move the selected indoor unit back by one
page
Back
On the indoor unit classification page, press this button to move the selected indoor unit back by one
position
Block Press this button to execute the shield function of the wired controller to cancel the operation

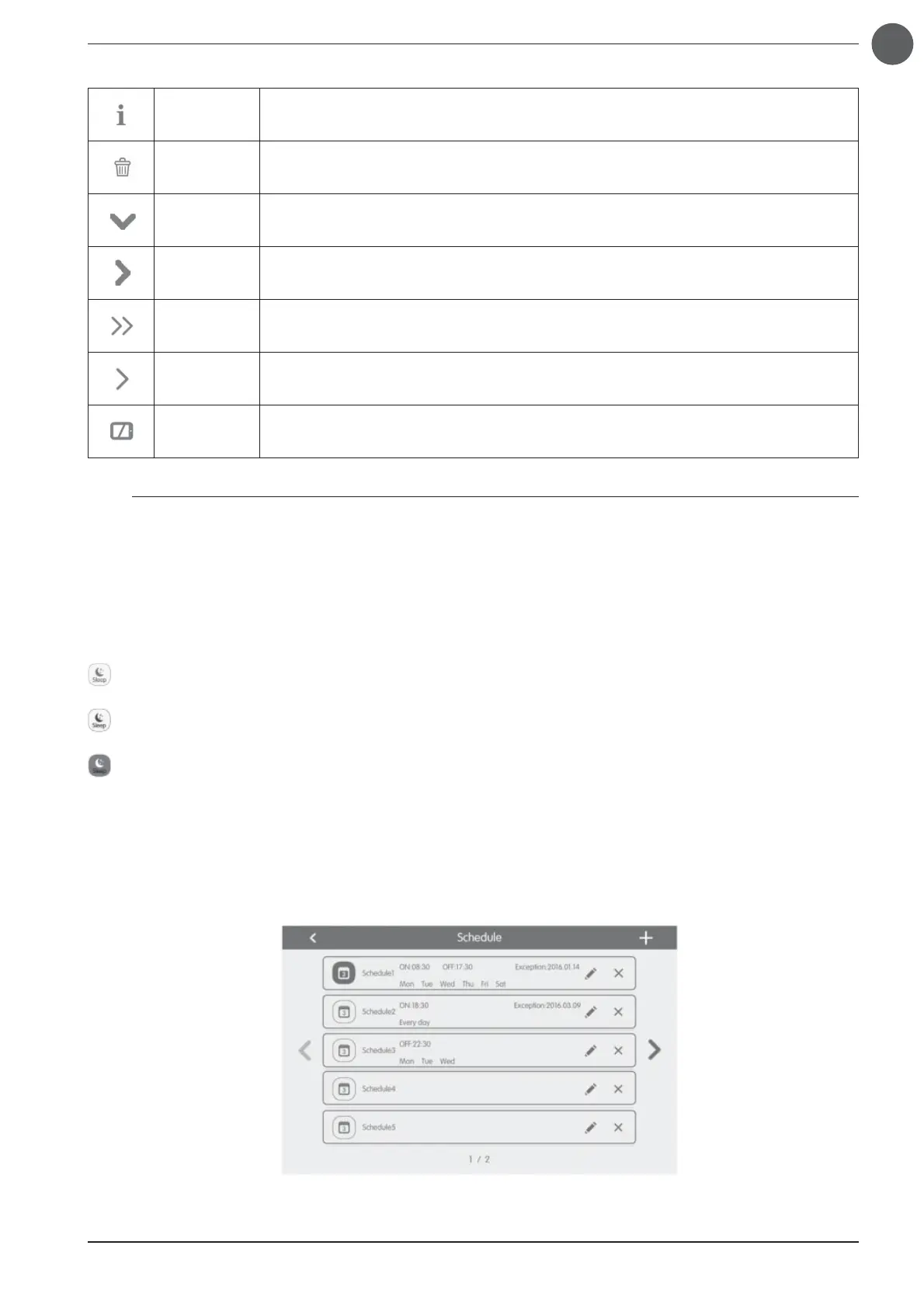

4.3. BUTTONS OPERATING INSTRUCTIONS
The centralised controller uses a capacitive touch screen so the user can start the units simply by touching the screen. The buttons
on the screen are presented as follows:
• Icon: The Icon button can be started directly. See section 4.2 for more details.
• Icon + Key: Depending on the meaning of words, turns on or off or selects a particular function or accesses a certain page.
This type of button has 2 or 3 status types depending on the specific function.
Status meaning (example with the Sleep button):
• Scroll: The group and the setting page can be scrolled up and down.
• Scroll bar: Press and hold the scroll bar to drag up/down or left/right and change the value. For example, the backlight
setting etc.
• Zone button: On the scheduling management pages, as shown in fig. 4.2 (Scheduling homepage) each rectangular box
represents a zone button. Pressing the zone button will display the corresponding function or the corresponding page.
A light colour indicates disabled/greyed out. The Sleep function is not valid and can not be selected. The cases differ
depending on the model.
A normal colour indicates inactive/not selected. The Sleep function is not active. The Sleep function activated by pressing
the grey Sleep button.
A dark colour indicates active/selected. The Sleep function is active. The Sleep function deactivates by pressing the orange
Sleep button.
Fig. 4.2 Zone button on the scheduling homepage
To Next Page
