AERMEC NRGI-H - Weight Distribution and Centres of Gravity

22 21.01  5723611_01

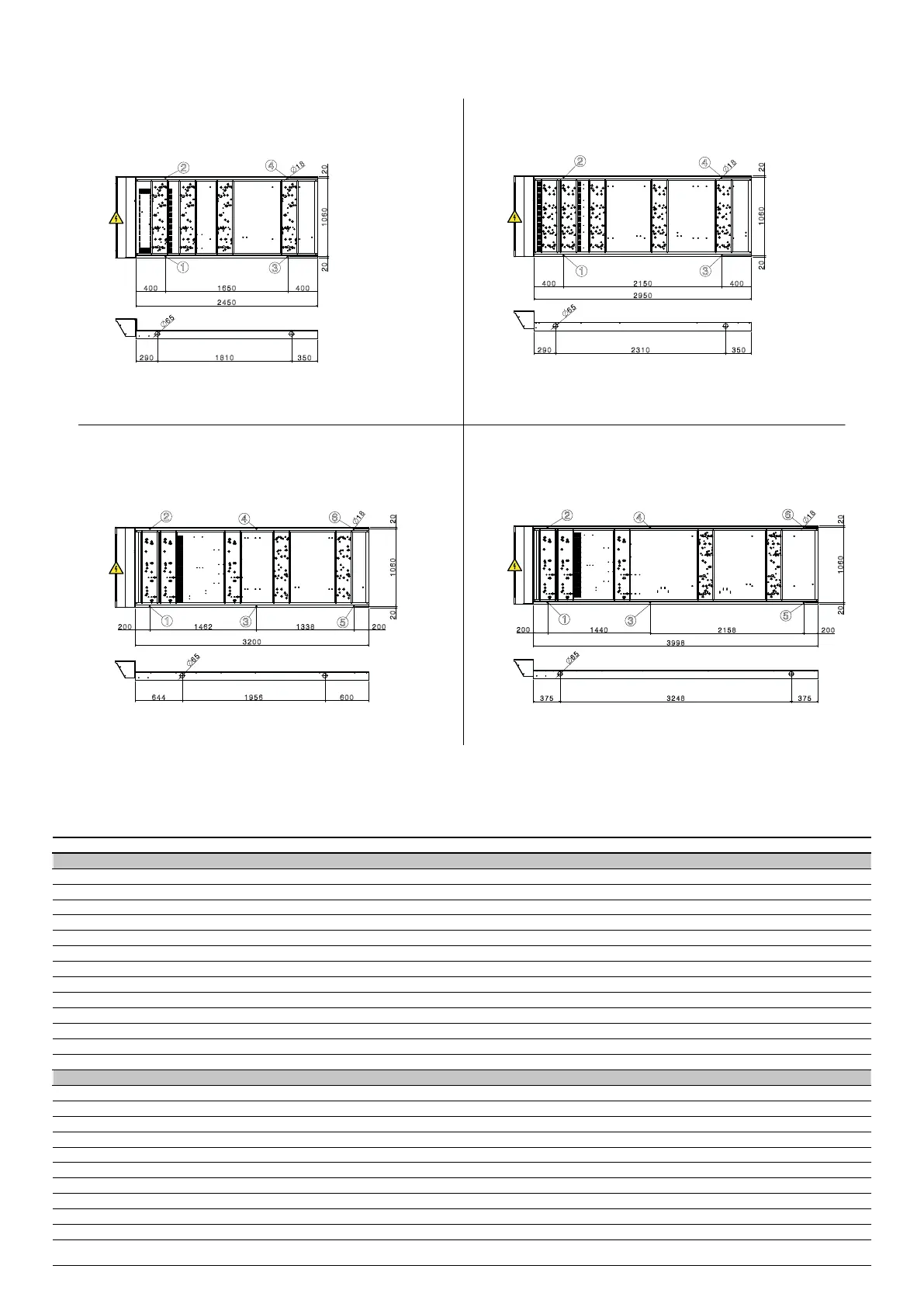

WEIGHT DISTRIBUTION AND CENTRES OF GRAVITY
LAYOUT 1 LAYOUT 2
LAYOUT 4LAYOUT 3
bottom view bottom view
bottom view bottom view
■ WARNING: The term "packaging" means pallet + packaging.
Weight distribution and centres of gravity when empty
Size 151 201 281 302 332 352 382 502 552 602
INTEGRATED HYDRONIC KIT: 00
Weights
Layout A,E type 1 2 2 2 2 2 3 3 3 4
Weight empty + packaging A,E kg 856 929 929 1019 1063 1064 1131 1137 1159 1365
Centre of gravity (empty)
X A,E mm 999 1207 1207 1145 1164 1163 1372 1370 1350 1649
Y A,E mm 595 596 596 576 575 575 578 579 574 579
Weight distribution in % on the supports (empty)
1 A,E % 29% 28% 28% 30% 30% 30% 30% 30% 31% 26%
2 A,E % 34% 33% 33% 33% 33% 33% 33% 33% 33% 29%
3 A,E % 17% 18% 18% 17% 18% 18% 0% 0% 0% 0%
4 A,E % 20% 21% 21% 19% 19% 19% 0% 0% 0% 0%
5 A,E % - - - - - - 18% 17% 17% 21%
6 A,E % - - - - - - 19% 19% 19% 24%
INTEGRATED HYDRONIC KIT: 01, 03, 05, 07
Weights
Layout A,E type 1 2 2 2 2 2 3 3 3 4
Weight empty + packaging A,E kg 915 993 993 1082 1127 1128 1205 1212 1234 1438
Centre of gravity (empty)
X A,E mm 1013 1261 1261 1198 1214 1213 1416 1415 1395 1737
Y A,E mm 554 556 556 540 541 541 547 548 544 551
Weight distribution in % on the supports (empty)
1 A,E % 31% 29% 29% 31% 31% 31% 31% 31% 31% 26%
2 A,E % 31% 30% 30% 30% 30% 30% 30% 30% 31% 27%
3 A,E % 19% 20% 20% 20% 20% 20% 0% 0% 0% 0%
