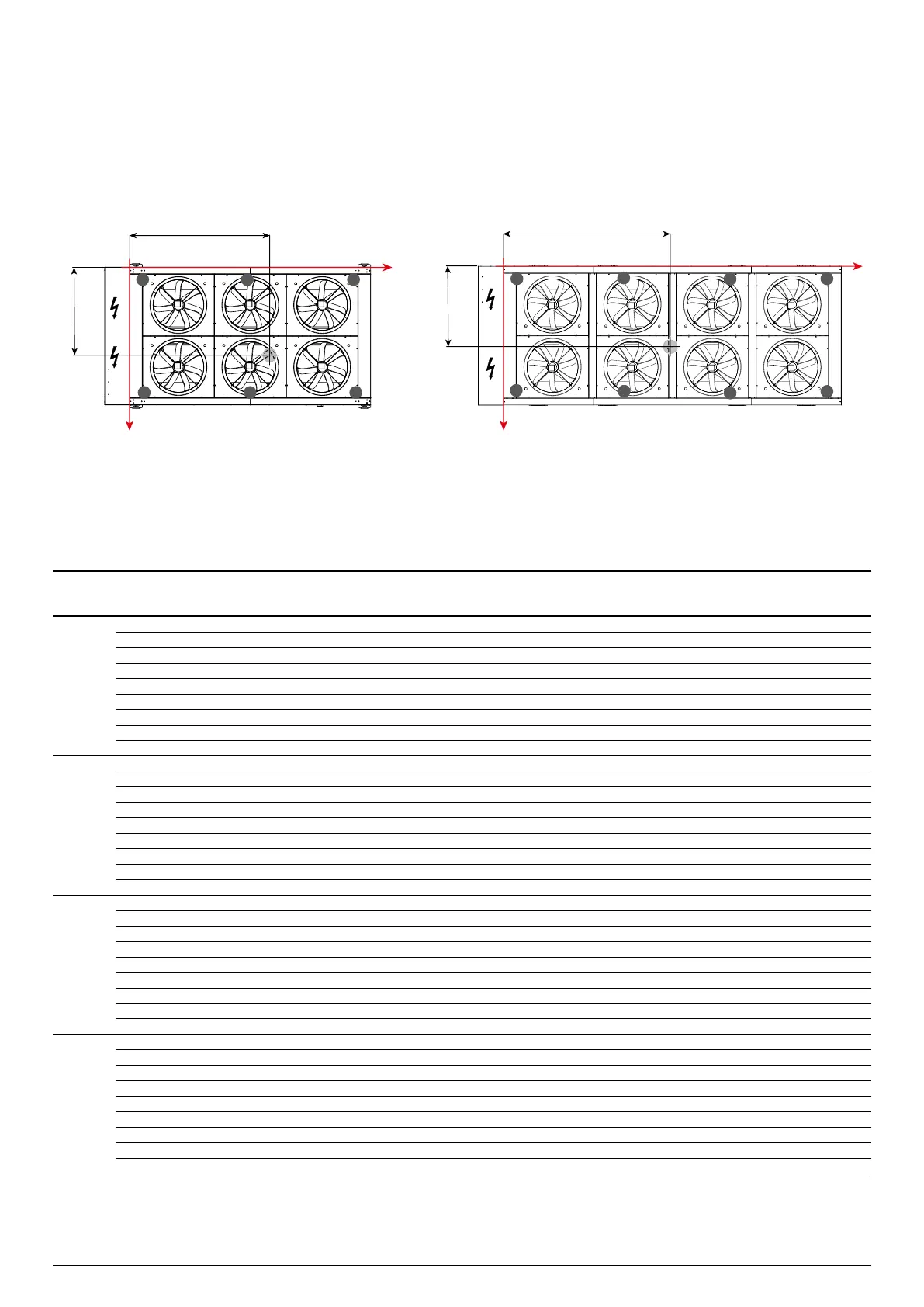

6 WEIGHT DISTRIBUTION AND CENTRES OF GRAVITY
 Top view
1
1
3
3
5
5
7
6
6
8
4
4
2
2
Xg
Yg
Y
X
Xg
Yg
Y
X
EMPTY
Version
Integrated
hydronic kit user
side
Integrated
hydronic kit,
recovery side
0800 0900 1000 1250 1400 1500 1650 1800
Empty weight
A 00 00 lbs 7,143 7,496 7,474 9,943 10,031 10,119 10,538 10,847
A 00 R1/R3 lbs 7,452 7,804 7,804 10,318 10,406 10,494 10,913 11,222
A 00 R2/R4 lbs 7,738 8,091 8,069 10,626 10,737 10,825 11,222 11,530
A P1/P3 00 lbs 7,496 7,848 7,826 10,362 10,450 10,538 10,957 11,244
A P1/P3 R1/R3 lbs 7,804 8,157 8,157 10,737 10,825 10,913 11,332 11,618
A P1/P3 R2/R4 lbs 8,091 8,444 8,422 11,045 11,133 11,222 11,640 11,949
A P2/P4 00 lbs 7,650 8,003 7,981 10,582 10,670 10,759 11,177 11,464
A P2/P4 R1/R3 lbs 7,959 8,311 8,289 10,957 11,045 11,133 11,552 11,839
A P2/P4 R2/R4 lbs 8,245 8,598 8,576 11,266 11,354 11,442 11,861 12,170
X
A 00 00 in 68.3 70.7 69.4 93.1 93.3 93.0 98.9 97.5
A 00 R1/R3 in 69.4 71.7 70.6 94.3 94.5 94.2 99.9 98.4
A 00 R2/R4 in 70.4 72.6 71.3 95.3 95.5 95.2 100.6 99.2
A P1/P3 00 in 67.4 69.6 68.5 92.3 92.5 92.2 97.9 96.5
A P1/P3 R1/R3 in 68.5 70.6 69.5 93.4 93.7 93.4 98.8 97.5
A P1/P3 R2/R4 in 69.3 71.5 70.4 94.4 94.6 94.3 99.6 98.3
A P2/P4 00 in 67.0 69.3 68.0 91.8 92.1 91.7 97.4 96.0
A P2/P4 R1/R3 in 68.0 70.2 69.1 93.0 93.2 92.9 98.3 97.0
A P2/P4 R2/R4 in 68.9 71.1 70.0 93.9 94.1 93.9 99.1 97.8
Y
A 00 00 in 7,137.6 7,490.3 7,468.3 9,935.4 10,023.4 10,111.3 10,530.0 10,838.8
A 00 R1/R3 in 7,446.3 7,798.1 7,798.1 10,310.2 10,398.1 10,486.0 10,904.7 11,213.5
A 00 R2/R4 in 7,732.1 8,084.8 8,062.9 10,617.9 10,728.9 10,816.8 11,213.5 11,521.3
A P1/P3 00 in 7,490.3 7,842.0 7,820.0 10,354.1 10,442.0 10,530.0 10,948.7 11,235.5
A P1/P3 R1/R3 in 7,798.1 8,150.8 8,150.8 10,728.9 10,816.8 10,904.7 11,323.4 11,609.2
A P1/P3 R2/R4 in 8,084.8 8,437.6 8,415.6 11,036.6 11,124.5 11,213.5 11,631.1 11,939.9
A P2/P4 00 in 7,644.2 7,996.9 7,974.9 10,574.0 10,661.9 10,750.8 11,168.5 11,455.3
A P2/P4 R1/R3 in 7,953.0 8,304.7 8,282.7 10,948.7 11,036.6 11,124.5 11,543.2 11,830.0
A P2/P4 R2/R4 in 8,238.7 8,591.5 8,569.5 11,257.4 11,345.4 11,433.3 11,852.0 12,160.7
1
A 00 00 % 10.1% 9.1% 9.5% 10.1% 10.0% 10.0% 8.9% 9.2%
A 00 R1/R3 % 9.5% 8.6% 9.0% 9.8% 9.7% 9.7% 8.6% 8.9%
A 00 R2/R4 % 9.0% 8.1% 8.6% 9.6% 9.4% 9.5% 8.4% 8.6%
A P1/P3 00 % 10.8% 9.7% 10.2% 10.2% 10.0% 10.1%
9.0% 9.2%
A P1/P3 R1/R3 % 10.2% 9.2% 9.6% 9.9% 9.7% 9.8% 8.7% 8.9%
A P1/P3 R2/R4 % 9.6% 8.7% 9.2% 9.6% 9.5% 9.6% 8.4% 8.7%
A P2/P4 00 % 11.1% 10.0% 10.4% 10.2% 10.1% 10.1% 9.0% 9.3%
A P2/P4 R1/R3 % 10.4% 9.4% 9.9% 9.9% 9.8% 9.8% 8.7% 9.0%
A P2/P4 R2/R4 % 9.9% 9.0% 9.4% 9.7% 9.5% 9.6% 8.5% 8.8%
